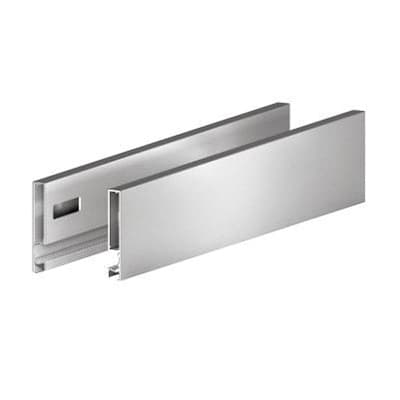

Vionaro H185 Drawer Side Slide, 7 1/4", Graphite, 18

Vionaro H185 Drawer Side For Precise Drawer Builds

Vionaro H185 drawer side defines a slim, straight-sided drawer profile that works to keep installations consistent across a run of cabinets. The cubist design with 90 degree angles forms clean vertical walls, so drawer boxes present a square, modern look that aligns well with flat fronts. The slimline 13 mm (1/2 inch) side width keeps the drawer profile narrow, which frees usable interior space while maintaining a defined metal edge for stable guidance. The 7 1/4 inch side height supports medium-tall fronts, helping contain stored items while maintaining the visual line of taller fascia. The bottom panel is cut to size without notching, so panels stay rectangular and can be processed quickly on straight-line equipment. For frame and frameless cabinetry, this single system spans different cabinet constructions in the same project.

Key Grass Vionaro Drawer Details For Installers

• The cubist design with 90 degree angles gives the drawer side crisp, straight geometry, helping fronts and panels meet at true corners for clean reveals in finished cabinets.
• The slimline 13 mm (1/2 inch) side width keeps metal thickness tight to the contents, giving more internal drawer space while maintaining solid side guidance for smooth travel.
• The bottom panel is cut to size without notching, so rectangular panels drop into place without extra machining steps, saving layout time in cabinet shops.
• For frame and frameless cabinetry, one drawer side format serves different carcass styles, which simplifies planning when mixing construction methods in a single job.
• The 7 1/4 inch side height supports taller drawer fronts, giving more side containment for stored items while maintaining a consistent visual band on multi-drawer bases.

Adjustment And Mounting Details For Accurate Fit

The Vionaro H185 drawer side works with integrated side and height adjustment, so fronts move in plane with the metal side without separate hardware, helping close gaps in face lines. Three dimensional adjustment allows fine tuning of drawer front alignment in height, side, and tilt, which helps installers dial in even reveals across stacked drawers. Tilt angle adjustment at the back lets the drawer tip slightly to match front-to-gable alignment, supporting straight shadow lines on tall units. Plus and minus adjustments for all dimensions provide measurable movement in either direction, giving a predictable range for correcting cabinet or floor variation. Tool-free front assembly speeds fit-out at installation, so fronts locate onto the drawer side without separate tools, which supports repeatable positioning on site.

Using The Grass Vionaro H185 In Cabinet Projects

Where This Vionaro H185 Drawer Side Is Applied

This Vionaro H185 drawer side fits into the Grass Vionaro Drawer System, so it acts as the visible metal side in a coordinated drawer platform. In frame and frameless cabinetry, the same side geometry carries across kitchen, bath, and storage runs, helping keep a consistent profile from cabinet to cabinet. The graphite finish presents as a dark-toned side surface, which pairs with contemporary fronts and darker interiors in many design schemes. When the bottom panel is cut to size without notching, shop staff can run panels as simple rectangles that drop into the Vionaro side, tying the metal perimeter to standard panel stock. In projects that specify Grass Vionaro drawer systems, this part number F135121556207 identifies the 18 inch Vionaro H185 graphite side, so it can be ordered consistently for repeat work.

Why Integrated Adjustment Supports Repeatable Results

The integrated side and height adjustment keeps alignment functions built into the Vionaro H185 drawer side, so installers adjust the front without separate brackets, reducing steps when setting reveal lines. Three dimensional adjustment supports fine control over height, side, and tilt, which helps correct small cabinet irregularities while still presenting uniform gaps. Tilt angle adjustment at the back allows the installer to change the drawer pitch, helping tall fronts sit flush from top to bottom against adjacent surfaces. Plus and minus adjustments for all dimensions mean that corrections can be made in either direction from center, giving flexibility when cabinets are slightly out of square. Tool-free front assembly lets fronts connect directly at the jobsite, which supports quick removal and re-fit during alignment. The front adapter with stabilizer ensures maximum stability on tall fronts, supporting heavier or higher drawer faces so they track evenly over time. Compatible with Dynapro 2D undermount slides, this drawer side integrates with that slide platform, bringing the undermount motion together with the Vionaro side geometry. Compatible with Dynapro 3D undermount slides using a 3D adapter set, it also works where deeper 3D undermount adjustment is specified, keeping the same side profile while changing the slide capability.

Installer Questions On Vionaro H185 Drawer Details

Selecting This Grass Vionaro Drawer Side For Jobs

The Vionaro H185 drawer side, graphite finish and 7 1/4 inch height, gives cabinet shops a defined component within the Grass Vionaro Drawer System that supports clean, straight-sided drawers. With integrated side, height, and tilt adjustment, the part number F135121556207 helps installers align fronts accurately in both frame and frameless cabinetry. Compatibility with Dynapro 2D and Dynapro 3D undermount slides using a 3D adapter set lets this drawer side tie into established undermount platforms. For projects calling for a slimline 13 mm metal side and rectangular, non-notched bottom panels, this Vionaro H185 configuration offers a consistent way to detail multiple cabinet runs.
