110D Sensys Soft-Close Hinge Dowel For Cabinets

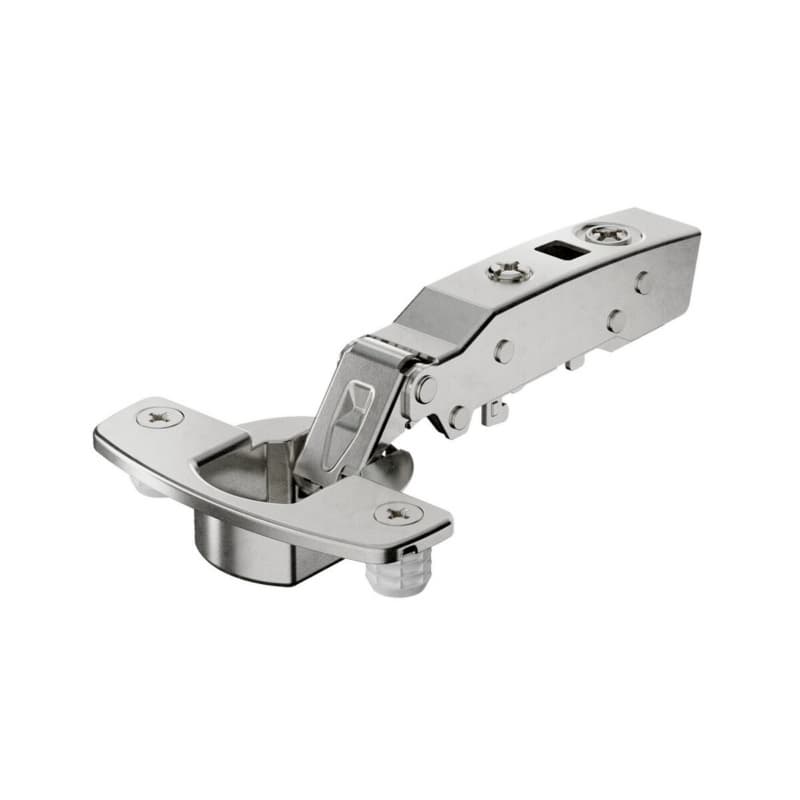

110D SENSYS SOFT-CLOSE HINGE DOWEL is a Hettich Sensys 110 degree concealed cabinet hinge in nickel plated steel that provides full overlay mounting for face-frame and frameless cabinets, giving a clean, concealed hinge look on finished installations. The hinge belongs to the Sensys 8645i series and has an integrated Silent System with a self-closing feature, so the hinge controls the final door movement and brings the door closed without separate soft-close devices. The opening angle of 110 degrees lets doors swing wide enough for comfortable cabinet access while keeping the door within a controlled arc. This hinge is quality classified under EN 15570, Level 3, which defines a tested performance class for European standard hinges in cabinet use. As a concealed cabinet hinge, it keeps hardware out of sight and supports a consistent appearance across face-frame or frameless projects using this model.
Key Sensys Hinge Details That Support Your Work
- The cup diameter is 35 mm, so the hinge fits standard 35 mm European hinge cup boring, allowing use with common cabinet door boring patterns in many shop setups.
- The cup depth is 12.8 mm, so the hinge seats into a relatively shallow bore, which helps when working with typical cabinet door thicknesses and avoids cutting excessively deep cups.
- The drilling pattern is TB 45 x 9.5 mm, so the hinge arm screw or dowel layout follows a defined pattern that aligns with matching boring jigs and CNC programs using this specification.
- Installation is for pressing-in, meaning the hinge is designed for press-in mounting, which suits production environments that use boring and insertion equipment designed around this method.
- The material and finish are nickel plated steel, giving a metal hinge body with a nickel surface that matches many cabinet hardware finishes and provides a consistent appearance across multiple doors.
Hinge Mounting, Overlay, And Adjustment In Use
This Sensys 110 degree hinge is designed for door overlay mounting, so the door overlays the cabinet front rather than sitting inset, which is standard for many kitchen and casework layouts. The hinge supports door thickness from 15 mm to 24 mm, matching a range of common cabinet door stock sizes used in woodworking shops. Integrated overlay adjustment of plus 2 mm to minus 2 mm lets the installer move the door side-to-side at the hinge, so doors can be aligned to adjacent fronts within that range. Integrated depth adjustment of plus 3 mm to minus 2 mm allows the door position to be shifted in and out relative to the cabinet front, which helps achieve an even reveal. Height adjustment is at the mounting plate, so vertical movement is handled at the plate interface for final door leveling across a run of cabinets.
Using The Hettich Sensys 9071226 In Cabinet Projects
Where This Sensys Concealed Hinge Fits Best
This product is a Hettich Sensys self-close full overlay hinge for face-frame and frameless cabinets, so it works in cabinet runs where doors are designed to fully overlay the front. The hinge falls under the category of concealed cabinet hinges and European standard hinges, meaning it is suited to modern cabinet constructions that use 35 mm cup boring. Its opening angle of 110 degrees provides a wide swing suitable for many kitchen, bath, or casework applications where access is needed without extreme door projection. The door thickness range of 15 mm to 24 mm allows this hinge to serve doors made from various panel materials within that thickness band. Nickel plated steel construction ties into typical cabinet hardware finishes, so visible hinge components present a consistent metallic look when the door is open.
Details That Support Accurate Alignment And Results
The integrated Silent System with self-closing feature in the Sensys 8645i hinge controls the closing motion, which reduces abrupt door contact at the cabinet and supports a smooth door settlement at the frame. Integrated overlay adjustment of plus 2 mm to minus 2 mm at the hinge arm means side gaps between doors can be fine-tuned without changing the boring positions, which is valuable during final alignment on installed cabinets. Integrated depth adjustment of plus 3 mm to minus 2 mm lets the door face move closer to or farther from the front, supporting consistent reveals across different cabinet boxes using the same hinge. Height adjustment at the mounting plate separates vertical corrections from other adjustments, so installers can use the plate position to line up top and bottom door edges. The pressing-in installation style suits production workflows that bore 35 mm cups and related holes to the TB 45 x 9.5 mm pattern and then press hinges into place in a repeatable sequence.
Common Questions About The Sensys 110 Degree Hinge
What type of cabinet construction uses the Hettich Sensys 9071226 hinge?
The Hettich Sensys 9071226 hinge is described for face-frame and frameless cabinets with full overlay doors, so it suits cabinet designs that place the door over the front of the case.
How far does the Sensys 110 degree hinge open the cabinet door?
The Sensys 110 degree hinge has an opening angle of 110 degrees, allowing the door to swing wide for access while maintaining a controlled motion defined by the hinge geometry.
What door thickness range works with this self-closing hinge?
The Sensys 110 degree hinge is specified for door thickness from 15 mm to 24 mm, so it works with doors produced from materials that fall within that thickness range.
How does the integrated Silent System affect door closing?
The Sensys hinge integrates a Silent System with self-closing feature, so the hinge manages the final closing movement and brings the door to the cabinet in a controlled way.
What boring details are needed for this 35 mm cup hinge?
The Sensys 110 degree hinge uses a 35 mm cup diameter with 12.8 mm cup depth and a TB 45 x 9.5 mm drilling pattern, so boring layouts follow those dimensions.
Where are adjustments made on the Sensys 110 degree hinge system?
The Sensys hinge has integrated overlay and depth adjustments at the hinge and height adjustment at the mounting plate, providing separate control over side, in-out, and vertical door positions.
Selecting This Sensys Hinge For Overlay Doors
The Hettich Sensys 110 degree self-close full overlay hinge in nickel plated steel offers integrated Silent System closing, standard 35 mm cup boring, and defined overlay, depth, and height adjustments for face-frame or frameless cabinets. When a project calls for full overlay doors in the 15 mm to 24 mm thickness range with European concealed hinges, this Sensys 8645i model gives a consistent geometry defined by EN 15570 Level 3 classification and the TB 45 x 9.5 mm drilling pattern. Use this hinge where a concealed look, 110 degree opening angle, and controlled self-closing motion align with cabinet design requirements.
