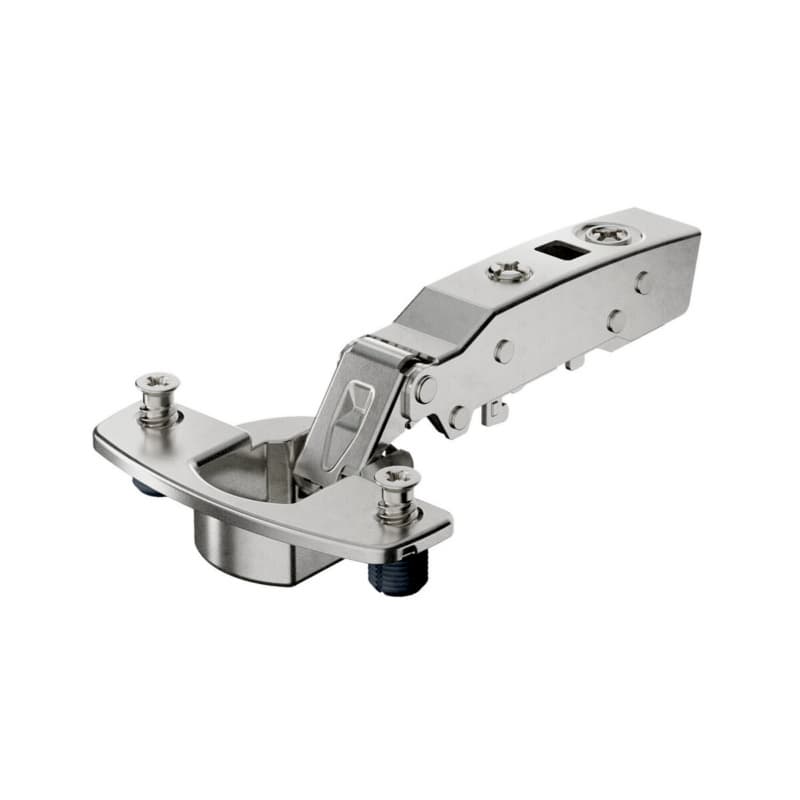

Hettich Sensys Soft-Close Hinge For Concealed Doors

Hettich Sensys soft-close hinge gives you a concealed cabinet hinge with integrated Silent System, so doors close gently and consistently, which helps protect cabinet fronts and reduces noise in daily use. This full overlay face-frame and frameless hinge design supports standard European concealed construction, so you can use the same hinge style across different cabinet builds in the shop. The 110 degree opening angle provides wide access into the cabinet, which helps when loading shelves or installing interior fittings. Zero protrusion in this Sensys hinge lets internal drawers or roll-outs run without clashing with the open door, which supports efficient use of storage space. Steel nickel plated construction provides a hard-wearing, uniform surface that matches typical nickel cabinet hardware, which keeps jobs looking consistent across multiple door runs.

Key Hettich Sensys Hinge Details For Projects

• The wide automatic closing angle of 35 degrees means the hinge pulls the door closed over the last part of travel, which streamlines adjustments because the closing action helps seat doors evenly without constant manual tweaking.
• The temperature stable damper rated from 41 F to 104 F keeps the soft-close action consistent in typical indoor shop and kitchen conditions, which matters when doors are installed in varied environments across a job.
• The integrated overlay adjustment of plus 2mm / minus 2mm lets you fine-tune side gaps at the hinge, which helps align reveals between doors on multi-door runs without changing drilling positions.
• The integrated depth adjustment of plus 3mm / minus 2mm allows front-to-back positioning of the door on the cabinet, which helps flush doors to face frames or sides for a clean look and reliable magnetic catch contact.
• Height adjustment at the mounting plate provides vertical tuning of the door position, which helps correct small drilling tolerances and match top and bottom gaps along neighboring doors during installation.
• Quality classification under EN 15570, Level 3 indicates the hinge meets a recognized performance standard, which supports confidence when specifying it for frequently used cabinet doors in residential or commercial settings.

Mounting And Adjustment For Precise Cabinet Fit

This European concealed cabinet hinge uses a cup depth of 12.8mm, so standard 35mm hinge cup boring operations apply, which simplifies production on drilling machines or jigs already set for this depth. The hinge is designed for door thickness from 15mm to 24mm, so it covers common cabinet door builds from lighter slab fronts up to thicker doors, giving flexibility when working across different material programs. Integrated overlay and depth adjustments handled on the hinge itself speed up on-site fitting, because you dial in alignment with screws rather than re-boring or shifting plates. Height adjustment at the mounting plate separates vertical tuning from the hinge arm, which makes it straightforward to tweak gaps without disturbing overlay or depth settings already dialed in.

Using This Full Overlay Hinge In Real Projects

Where This Full Overlay Cabinet Hinge Fits Best

This full overlay cabinet hinge is suited to full overlay door applications on face-frame and frameless cabinets, so it matches standard kitchen and bath layouts where doors cover most of the front. Zero protrusion of the Sensys hinge design keeps the door clear of interior pull-outs when open, which is particularly useful on pantry cabinets or bases with internal drawers where storage access is critical. The 110 degree opening angle provides ample swing for reaching into corner or deep cabinets, which helps during both installation of interior hardware and ongoing use. Door thickness capability from 15mm to 24mm covers many common panel thicknesses used in residential and commercial cabinetry, which simplifies specifying a single hinge series across a line of casework. The soft-close Silent System helps maintain a controlled closing motion even when doors are used repeatedly, which suits high-traffic kitchen and workroom environments.

Why Sensys Adjustments Support Consistent Results

The integrated overlay adjustment of plus 2mm / minus 2mm directly at the hinge arm gives precise control over side gaps, which supports tight, repeatable reveals on banks of doors without moving the cabinet or re-drilling. The integrated depth adjustment of plus 3mm / minus 2mm lets you bring the door closer to or further from the cabinet front, which helps set a flush plane between doors and neighboring fronts for a uniform facade. Height adjustment handled at the mounting plate separates vertical correction from overlay and depth, so fine-tuning stacked doors is simpler because each axis can be dialed independently. The wide automatic closing angle of 35 degrees means that beyond a certain point the hinge actively brings the door shut, which helps doors settle into the same final position and supports even alignment with catches and stops. The temperature stable damper between 41 F and 104 F keeps the soft-close function predictable through common indoor temperature swings, which helps avoid callbacks related to changing door behavior between seasons.

Common Questions About This Sensys Cabinet Hinge

Select This Hettich Sensys Hinge For Precise Fit

The Hettich Sensys soft-close hinge combines a 110 degree opening angle, full overlay design, and zero protrusion, so it supports modern cabinet layouts with internal storage. Integrated overlay, depth, and height adjustments give you control over final reveals, helping deliver consistent lines across doors. With a temperature stable soft-close damper and EN 15570 Level 3 classification, this nickel plated concealed hinge is well suited to frequently used cabinet runs where quiet, repeatable door action is expected.
