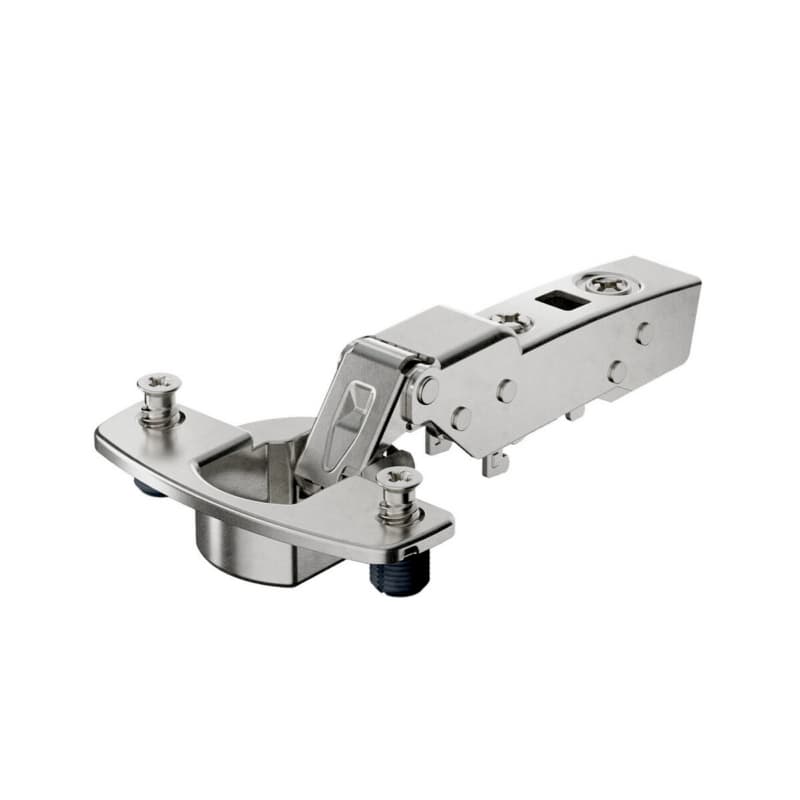

Hettich Sensys Soft-Close Hinge For Cabinet Doors
Hettich Sensys soft-close hinge is a concealed cabinet hinge designed for half overlay face-frame and frameless applications, so it supports standard European-style installations while keeping hardware hidden on finished jobs. The Sensys hinge design offers zero protrusion, which lets interior storage space be used more efficiently when doors are opened, helping cabinets function better in tight runs or near adjacent pull-outs. A wide automatic closing angle of 35 degrees pulls the door into the closed position earlier, which helps doors shut consistently without needing a hard push. The Silent System is built into this hinge, so the door motion is controlled as it closes. The hinge cup depth of 12.8 mm and door thickness range of 15-24 mm define the drilling depth and door construction that this hinge is intended to work with in everyday cabinet building.
Key Sensys Hinge Details That Help On Jobs
- This concealed cabinet hinge uses zero protrusion, so open doors stay clear of adjacent storage space and hardware, helping layouts with internal drawers or organizers function smoothly.
- The 110 degree opening angle provides a wide door swing, which improves access into the cabinet interior while still working with common cabinet layouts.
- The wide automatic closing angle of 35 degrees engages the close action earlier, so doors are drawn shut reliably and look aligned across a bank of cabinets.
- The integrated Silent System provides a soft-close function, so the door movement is damped as it closes, reducing impact on the cabinet and door edges over repeated use.
- The steel nickel plated construction offers a durable hinge body with a neutral finish, which suits typical cabinet environments and coordinates with other nickel finished hardware.
Mounting And Adjustment Details For This Hinge
This Sensys concealed hinge uses a cup depth of 12.8 mm, so the hinge recess in the door is drilled to that depth for proper seating and motion. It is designed for door thicknesses from 15 mm to 24 mm, which fits common cabinet door constructions in many shop standards. Integrated overlay adjustment of plus 2 mm to minus 2 mm is built into the hinge, allowing the door overlay on the face of the cabinet to be shifted slightly for cleaner reveals. Integrated depth adjustment of plus 3 mm to minus 2 mm lets the door move in and out relative to the cabinet front, which is useful when aligning doors across uneven faces. Height adjustment is provided at the mounting plate, so vertical door gaps can be tuned to match adjacent fronts.
Using The Hettich 9073690 Hinge In Cabinet Work
Where This Concealed Sensys Hinge Is Applied
This Hettich Sensys concealed cabinet hinge, with a 110 degree opening angle, serves as a long arm European standard hinge for doors in both face-frame and frameless cabinet construction where a half overlay is planned. The zero protrusion design means that when the door is opened, the hinge arm does not project into the cabinet interior, which helps maintain clearance for storage zones behind the door. With a door thickness range of 15-24 mm and a cup depth of 12.8 mm, it aligns well with many engineered board and solid door builds that follow European drilling patterns. The temperature stable damper is specified for a range from 41 degrees F to 104 degrees F, so the soft-close Silent System continues to operate in typical room and shop ambient conditions without the close action changing as temperatures fluctuate.
Adjustment Features That Support Repeatable Alignment
The integrated overlay adjustment of plus 2 mm to minus 2 mm gives lateral movement on the door, letting installers shift the door to sharpen the reveal against neighboring doors or cabinet edges without changing drilling positions. Integrated depth adjustment of plus 3 mm to minus 2 mm provides front-to-back control, allowing the door face to be aligned flush along a run, which is especially helpful on frameless cabinets where flush planes are visible. Height adjustment at the mounting plate concentrates vertical tuning in one area, so doors can be raised or lowered relative to each other while keeping the hinge cup and arm fixed in the door. The hinge carries a quality classification under EN 15570, Level 3, indicating that it is tested within that standard, which supports use in cabinet installations where repeated opening and closing is expected over time.
Common Questions About This Sensys Soft-Close Hinge
What type of hinge is the Hettich 9073690?
The Hettich 9073690 is a Sensys concealed cabinet hinge with a 110 degree opening angle, so it works as a European standard long arm hinge where hidden hardware and wide door swing are needed.
How does the temperature stable damper help cabinet doors?
The Sensys hinge uses a temperature stable damper rated from 41 degrees F to 104 degrees F, so the Silent System soft-close action stays consistent across normal room temperature changes.
What door thickness range does this hinge support?
This Sensys concealed cabinet hinge is specified for door thicknesses from 15 mm to 24 mm, so it suits many common cabinet door constructions built from engineered panels or solid stock.
How do the overlay and depth adjustments help alignment?
The hinge offers plus 2 mm to minus 2 mm overlay adjustment and plus 3 mm to minus 2 mm depth adjustment, allowing practical side-to-side and front-to-back tuning for even reveals and flush doors.
What does EN 15570 Level 3 classification indicate?
This hinge is classified under EN 15570, Level 3, meaning it is tested within that hinge standard, which supports use where frequent opening and closing is expected in cabinet service.
Why is zero protrusion useful on this Sensys hinge?
The zero protrusion design keeps hinge parts from extending into the cabinet when the door is open, allowing better use of interior storage space near drawers or pull-out elements.
Selecting This Sensys Hinge For Your Next Run
This Hettich Sensys soft-close hinge, part number 9073690, combines a 110 degree opening angle with zero protrusion, so it supports accessible, uncluttered cabinet interiors. Temperature stable Silent System damping and steel nickel plated construction make it suitable for regular cabinet environments. Integrated overlay, depth, and height adjustments give practical control over alignment, which helps doors present clean, consistent reveals. For projects using half overlay doors on face-frame or frameless cabinetry within the 15-24 mm thickness and 12.8 mm cup depth range, this concealed hinge offers a defined set of performance and adjustment features ready for shop or onsite installation.
