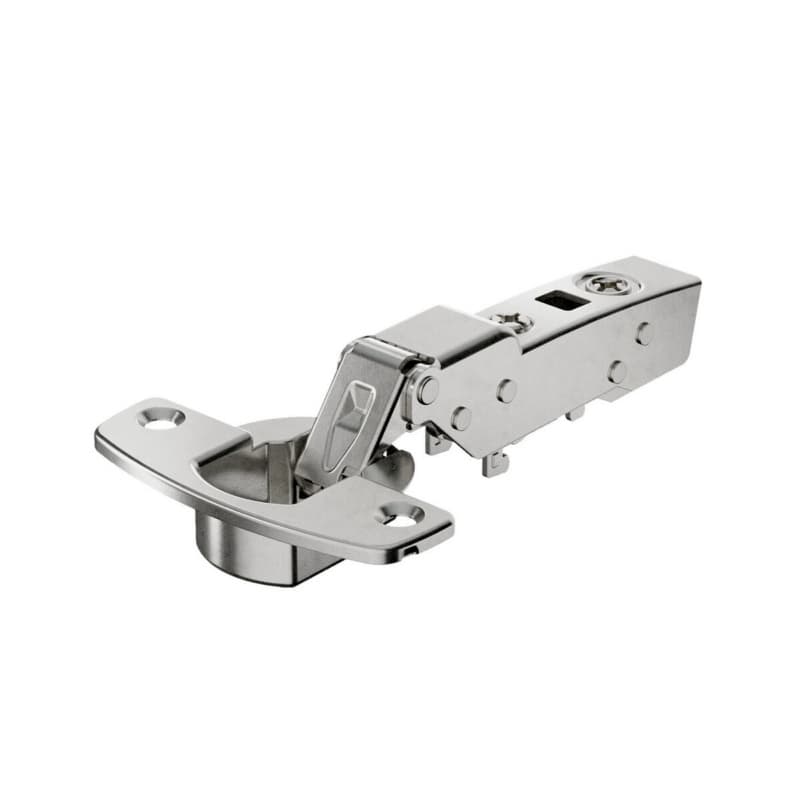

Hettich Sensys Soft-Close Silent System Half Overlay Face-Frame;Frameless Hinges Nickel, 110° Screw-On - 9073618

Hettich Sensys Soft-Close Hinge For Cabinet Doors

Hettich Sensys soft-close hinge provides a concealed hinge solution that keeps hardware out of sight, which matters when you want clean cabinet lines without visible hinges in finished installations. This concealed cabinet hinge is part of the European concealed long arm hinge class, so it supports modern frameless and face-frame layouts that follow standard European hinge boring and layout methods. The Sensys hinge design is described as zero protrusion, meaning the hinge arm does not project into the cabinet interior when the door is fully opened, which helps maintain clear access to storage space and reduces conflict with pull-out shelves or interior organizers. A 110 degree opening angle on this hinge allows the door to swing wide enough for comfortable access, supporting everyday use around kitchen, bath, and storage cabinets where wider access is needed.

Key Sensys Hinge Details For Real-World Use

• The wide automatic closing angle of 35 degrees pulls the door closed once it passes that point, which helps the door seat consistently without slamming when users push it most of the way shut.
• The hinge has a temperature stable damper rated from 41 F to 104 F, so the soft-close performance remains consistent through typical room temperature swings found in occupied interiors.
• Silent System functionality is built into the hinge, providing soft-close action that slows the final part of the swing, which reduces noise and impact loads on the cabinet when doors are used repeatedly.
• The hinge is specified for door thickness from 15 mm to 24 mm, which covers a common range of cabinet door materials and allows the same hinge model to be applied across many door constructions.
• A cup depth of 12.8 mm is specified, which ties directly to standard 35 mm hinge cup drilling operations and helps the door sit correctly on typical cabinet door thicknesses.
• The hinge is classified under EN 15570 Level 3, which indicates it has been tested to a defined European standard for long-term hinge performance in cabinet use.

Mounting, Adjustment, And Fit For This Hinge

This Hettich Sensys soft-close hinge uses a screw-on mounting style, which means the hinge and mounting plate are fastened to the door and cabinet with screws for a secure connection that suits production or retrofit cabinet work. The hinge is listed as a half overlay face-frame and frameless hinge, so it suits layouts where the door only partially overlays the cabinet side or face frame style, supporting mixed cabinet runs where overlay sizes vary. Integrated overlay adjustment of plus 2 mm to minus 2 mm is built into the hinge, letting you shift the door sideways relative to the cabinet side for fine-tuning reveals along adjacent doors. Integrated depth adjustment of plus 3 mm to minus 2 mm lets you move the door toward or away from the cabinet front, helping align door faces flush along a run. Height adjustment is handled at the mounting plate, so vertical door gaps can be dialed in across the cabinet run after the plates are fixed.

Using This Sensys 110 Degree Hinge In Projects

Where This European Concealed Hinge Fits Best

This concealed cabinet hinge is part of the European concealed long arm hinge category, so it suits projects that follow European-style drilling patterns and need a hidden hinge solution. The half overlay face-frame and frameless designation means it can be used on cabinetry where the door overlays only part of the cabinet side or face frame, which is common in many kitchen and bath layouts. The 110 degree opening angle works well in installations that need generous access without requiring an extra-wide opening, helping doors clear adjacent cabinets while still leaving space for nearby walls or appliances. Zero protrusion design keeps the hinge mechanism from intruding into the interior space when the door is open, which is useful where pull-out trays, roll-outs, or interior organizers operate inside the same cabinet volume. The Silent System soft-close function is integrated into the hinge, so there is no separate damper unit occupying space, helping keep the interior cleaner for storage hardware.

Why Sensys Adjustments Support Consistent Results

The integrated overlay adjustment of plus 2 mm to minus 2 mm directly supports aligning doors side to side, which reduces visible step differences between doors along a run and improves the finished look without re-drilling hinge cups. Integrated depth adjustment of plus 3 mm to minus 2 mm gives control over how far the door sits from the cabinet front, allowing you to bring faces into the same plane when combining multiple doors and drawer fronts in one installation. Height adjustment at the mounting plate allows vertical gaps at the top and bottom of each door to be tuned after the hinges are fixed, which helps maintain consistent reveals even when cabinet boxes or floors vary slightly. The hinge is listed with a temperature stable damper from 41 F to 104 F, which keeps the soft-close behavior more uniform across seasonal temperature changes inside typical living spaces. The EN 15570 Level 3 classification reflects testing to a European hinge standard, which matters when a project specifies hardware that follows recognized performance criteria for repeated opening and closing cycles. The steel nickel plated construction provides a corrosion-resistant surface on the hinge parts, which supports long-term appearance and operation in common interior cabinet environments.

Common Questions About This Hettich Sensys Hinge

Select This Sensys Hinge For Precise Overlay Control

The Hettich Sensys soft-close hinge brings a zero protrusion concealed design, integrated Silent System, and 110 degree opening angle together in one hinge, which streamlines cabinet layouts that need quiet operation and clear interior access. Door thickness coverage from 15 mm to 24 mm, plus a 12.8 mm cup depth, supports common door constructions while following standard boring practices. Built-in overlay and depth adjustments, along with height control at the mounting plate, give you the fine tuning needed to set reveals across full cabinet runs with minimal rework on site.
