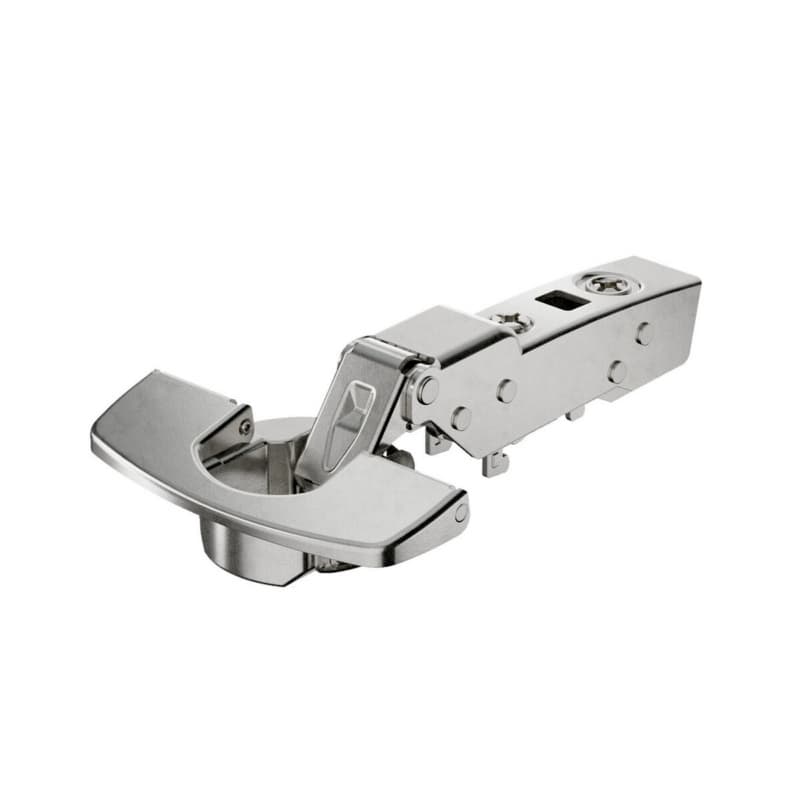

Hettich Sensys Soft-Close Hinge For Cabinets

Hettich Sensys soft-close hinge is a concealed cabinet hinge designed for half overlay applications on both face-frame and frameless cabinets, so it supports consistent hinge choice across different cabinet constructions in the same job. As a European concealed long arm hinge in nickel-plated steel, it keeps the hardware hidden while providing a durable metal interface at the door and cabinet, which helps maintain a clean look around the opening. The 110 degree opening angle gives doors wide access without overextending, which helps when aligning doors near walls or adjacent cabinets. Zero protrusion design keeps the hinge arm within the cabinet profile at full opening, which protects interior pullouts or trays from contact during use. The integrated Silent System delivers soft-close action, which reduces door slam and helps protect fronts and frames from repeated impact in daily use.

Key Sensys Hinge Details That Support Cabinet Work

• The wide automatic closing angle of 35 degrees pulls the door closed from a larger range, which eases final alignment on installation and supports consistent soft-close action even when doors are pushed only partway.
• The temperature stable damper rated from 41 F to 104 F (5 C to 40 C) keeps the soft-close performance within its design range, which supports predictable closing speed across typical indoor cabinet environments.
• The nickel plated steel construction provides a hard-wearing metal hinge body, which supports long-term use on frequently operated doors in kitchens, baths, or commercial cabinetry.
• The concealed hinge design keeps the hinge out of sight when the door is closed, which supports clean front aesthetics while still allowing full adjustment at the mounting points.
• The European standard hinge classification groups this hinge with familiar cup-and-arm hardware, which supports straightforward layout and boring routines in cabinet shops using standard European hinge patterns.

Hinge Mounting, Overlay Range, And Adjustments

This Sensys concealed cabinet hinge uses a cup depth of 12.8 mm in the door, which sets a known boring depth for drilling operations and helps maintain consistent seating of the cup across a run of fronts. The listed door thickness range of 15 to 24 mm defines the material sizes this hinge is intended to carry, which supports planning for common cabinet door stock in that thickness band. Integrated overlay adjustment of plus 2 mm to minus 2 mm on the hinge lets the door overlay be fine-tuned after mounting, which reduces the need to reposition the drilling pattern when dialing in reveals. Integrated depth adjustment of plus 3 mm to minus 2 mm helps move the door closer to or away from the case, which is useful for aligning doors flush across a bank of cabinets. Height adjustment at the mounting plate provides vertical correction on the door, allowing installers to align top and bottom gaps by working at the plate instead of reboring.

Using The Sensys 110 Degree Hinge In Cabinet Projects

Where This Concealed Cabinet Hinge Fits Best

This Hettich Sensys soft-close hinge is specified as a half overlay option for face-frame and frameless cabinets, so it suits layouts where two doors share a partition or where partial overlay is needed at a frame. The 110 degree opening angle works well for general cabinet access, giving enough swing for interior storage while keeping the door within a predictable arc next to adjacent walls or cabinets. Zero protrusion at full opening keeps the hinge components clear of the interior, which helps when cabinets use pullout shelves or interior organizers that run close to the door line. The 15 to 24 mm door thickness range matches many common cabinet door constructions, so it aligns with standard panel and solid door builds within that thickness window.

Why Silent System And Adjustments Support Results

The Silent System soft-close function is built into this Sensys hinge, so the damper works directly in the hinge mechanism to slow the door as it closes, which reduces impact on the cabinet and improves door handling. The temperature stable damper rating from 41 F to 104 F (5 C to 40 C) means the soft-close behavior is designed to remain within its performance range in typical indoor conditions, which supports predictable closing speed across seasons in conditioned spaces. Combined overlay adjustment of plus 2 mm to minus 2 mm and depth adjustment of plus 3 mm to minus 2 mm allow three-way fine tuning at the hinge, which speeds up achieving even reveals and flush door faces without re-boring. Height adjustment at the mounting plate adds vertical control on the installed door, which helps align door tops and bottoms across multiple openings by working only at the mounting interface.

Common Questions About The Hettich 9073627 Hinge

Selecting This Sensys Hinge For Your Next Job

The Hettich Sensys soft-close hinge with 110 degree opening, half overlay design, and zero protrusion gives cabinet projects a concealed hinge that supports both storage access and clean interiors. Nickel plated steel construction and the integrated Silent System combine a concealed appearance with soft-close performance suited to doors 15 to 24 mm thick. With cup depth of 12.8 mm, adjustable overlay and depth ranges, and height adjustment at the mounting plate, this European standard hinge provides a clear drilling and adjustment framework for shop and site work. For cabinet runs using half overlay on face-frame or frameless construction, this Sensys concealed cabinet hinge aligns function, adjustment, and soft-close behavior in a single hinge choice.
