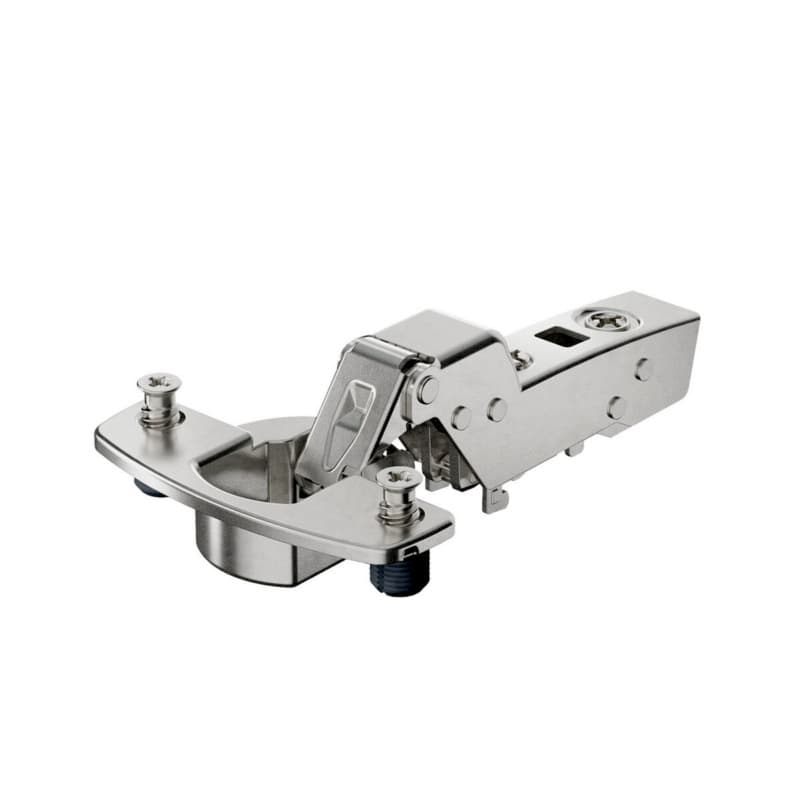

Hettich Sensys Soft Close Hinge For Cabinet Use
Hettich Sensys soft close hinge provides a zero protrusion concealed hinge solution that supports optimum use of storage space by keeping the hinge arm out of the interior area, which helps maximize clear room for cabinet contents and pull-outs. This concealed cabinet hinge is part of the Sensys hinge family from Hettich America Corporation, so it follows a consistent geometry that matters when matching existing Sensys installations across a job. The hinge offers a wide automatic closing angle of 35 degrees that draws the door shut from a larger opening position, which helps doors close reliably without slamming when users push them most of the way. The hinge has an opening angle of 110 degrees that allows doors to swing open to a practical working position, which supports access to cabinet interiors in everyday use.
Key Sensys Hinge Details For Daily Work
- The zero protrusion concealed hinge design keeps the hinge arm clear of the interior, which supports the use of internal drawers or pull-out components without the hinge interfering with their travel.
- The wide 35 degree automatic closing angle actively pulls the door closed from a relatively open position, which helps deliver consistent soft closing action even when the door is not pushed fully to the frame.
- The temperature stable damper is specified for 41 degrees F to 104 degrees F (5 degrees C to 40 degrees C), which keeps the soft close performance more consistent across typical room and shop temperatures.
- The hinge uses a soft close Silent System that moderates the final door movement, which helps reduce door impact on the cabinet and supports a quieter operating environment in kitchens and workspaces.
- The hinge carries Quality classification under EN 15570, Level 3, which indicates the hinge is tested to a defined European standard that matters when projects reference performance classifications.
- The hinge is made from steel with a nickel plated finish, which provides a hard-wearing metal construction with a clean, uniform surface that suits common cabinet hardware finishes.
Installation And Adjustment Details For This Hinge
This Sensys concealed cabinet hinge has a cup depth of 12.8mm, which defines how deep the bore in the door needs to be during installation so the cup sits flush and the hinge geometry is correct. The hinge is designed for door thickness from 15mm to 24mm, which covers a range of standard cabinet door materials and helps keep the screw holding zone in solid material. Integrated overlay adjustment of plus 2mm to minus 2mm at the hinge allows the door overlay position to be fine-tuned after mounting, which helps align reveals across multiple doors. Integrated depth adjustment of plus 3mm to minus 2mm provides front-to-back positioning capability, which supports achieving consistent gaps and reliable soft closing engagement with the frame.
Using This Concealed Cabinet Hinge In Projects
Where This Sensys 110 Degree Hinge Fits Best
This Hettich Sensys soft close hinge is described as an inset overlay face-frame and frameless hinge, which means it is intended for cabinet constructions that either use face frames or frameless carcasses while still managing door position relative to the front. The 110 degree opening angle offers a wide door swing suitable for many kitchen, bath, and storage cabinets, which supports access without the door feeling restricted in everyday use. The specified door thickness range of 15mm to 24mm covers many engineered wood and solid wood cabinet doors, which lets the same hinge model serve across different door materials on a project. The hinge is part of the concealed cabinet hinges category, so it is meant for applications where the hinge hardware is hidden when the door is closed, which supports a clean cabinet appearance.
How Adjustments And Design Support Consistent Results
The integrated overlay adjustment of plus 2mm to minus 2mm built into this hinge provides lateral tuning, which allows the installer to shift the door side-to-side to align edges and create even reveals without re-drilling the door. The integrated depth adjustment of plus 3mm to minus 2mm lets the door move in and out relative to the cabinet front, which is important for getting the door face to sit flush and for maintaining the right closing pressure against soft close components. Height adjustment is specified as being at the mounting plate, which separates vertical alignment from the hinge body and allows vertical tuning without disturbing overlay or depth settings. The temperature stable damper rated from 41 degrees F to 104 degrees F (5 degrees C to 40 degrees C) helps the Silent System soft close action remain predictable, which reduces the likelihood of doors slamming in warmer or cooler interior conditions. The zero protrusion hinge design means that when the door is opened, the hinge arm does not project into the cabinet interior, which is important when fitting interior roll-outs or drawers that need to pass the hinge line without binding. Being classified under EN 15570, Level 3 connects this hinge to recognized performance testing, which supports confident use in cabinets that see regular opening and closing cycles.
Common Questions About The Sensys 110 Degree Hinge
What opening angle does this Sensys hinge provide?
This Hettich Sensys soft close hinge provides a 110 degree opening angle, which lets cabinet doors open wide enough for comfortable access to stored items.
How does the wide automatic closing angle help cabinet doors?
The hinge has a 35 degree automatic closing angle, so it pulls the door shut from a relatively open position, which supports consistent soft closing without slamming.
What door thickness range works with this hinge?
The Hettich Sensys 9073691 hinge is specified for door thickness from 15mm to 24mm, which covers many common cabinet door constructions on residential and commercial jobs.
How do the integrated overlay and depth adjustments help alignment?
The hinge provides plus 2mm to minus 2mm overlay and plus 3mm to minus 2mm depth adjustment, which allows fine tuning of reveals and flushness after mounting.
Why is temperature stable damper performance important?
The temperature stable damper is rated for 41 degrees F to 104 degrees F, which helps keep soft closing behavior consistent in typical indoor environments.
What does EN 15570 Level 3 classification indicate for this hinge?
The EN 15570 Level 3 quality classification shows the hinge has been tested to a defined European hinge standard, which supports use in performance-focused cabinet projects.
Select This Sensys Hinge For Precise Cabinet Work
This Hettich Sensys soft close hinge from Wurth Baer Supply combines a 110 degree opening angle, zero protrusion design, and Silent System damping, which together support smooth cabinet door motion and efficient interior space use. The specified door thickness range of 15mm to 24mm, combined with a 12.8mm cup depth, defines clear drilling and door selection parameters that streamline layout across multiple cabinets. Integrated overlay and depth adjustments provide on-hinge tuning, which helps align doors quickly across runs without altering the original boring pattern. For projects calling for a concealed cabinet hinge that supports both frameless and face-frame applications while maintaining soft close function within the 41 degrees F to 104 degrees F damper range, this Sensys 9073691 hinge is a strong match.
