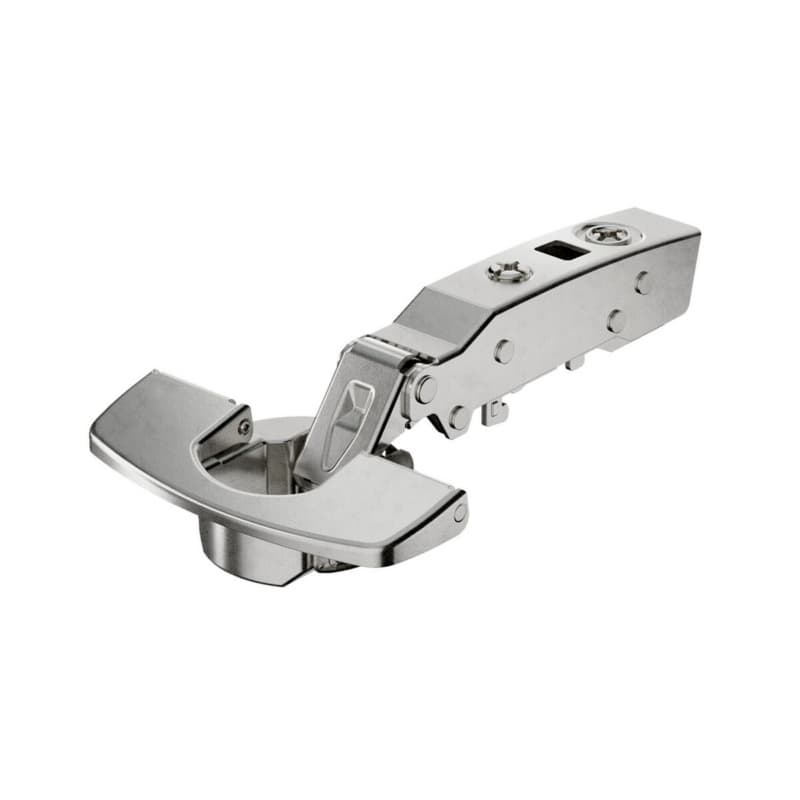

Hettich Sensys Soft-Close Hinge For Concealed Use

Hettich Sensys soft-close hinge is a concealed cabinet hinge designed as a zero protrusion hinge, so shelves or pull-outs can run close to the door for better use of storage space. This hinge is a full overlay option for face-frame and frameless cabinets, giving flexibility on different cabinet constructions when laying out doors. The 110 degree opening angle provides wide access into the cabinet while still controlling the swing of the door. The hinge uses a Silent System soft-close function, so the door is automatically damped as it closes for quieter cabinet operation in everyday use. The hinge belongs to the Sensys line from Hettich, aligning with European standard concealed long arm hinges used in many modern installations.

Key Sensys 110 Degree Hinge Working Advantages

• The wide automatic closing angle of 35 degrees pulls the door in firmly during the last part of travel, which helps doors seat consistently against the cabinet front.
• The temperature stable damper is rated from 41 F to 104 F (5 C to 40 C), so the soft-close action remains more consistent across typical room conditions.
• The hinge supports door thickness from 15 mm to 24 mm, covering a common range for cabinet doors when planning overlays and material selection.
• The cup depth of 12.8 mm allows standard 35 mm cup boring while preserving material behind the cup for strength in many cabinet door constructions.
• Integrated overlay adjustment of plus 2 mm to minus 2 mm lets the door position be shifted sideways at the hinge, helping align reveals between adjacent doors.
• Integrated depth adjustment of plus 3 mm to minus 2 mm allows the door to move in and out relative to the cabinet front, so the door face can be set flush across a run.
• Height adjustment at the mounting plate provides vertical fine-tuning of the door position, which helps line up top and bottom edges across multiple doors.
• The steel nickel plated construction gives the hinge a metal build with a nickel surface, suitable for interior cabinet environments where concealed hinges are typically used.
• Quality classification under EN 15570, Level 3, places the hinge in a tested performance class recognized in European standard hinge applications.

Hettich 9073626 Hinge Adjustment And Fit Details

The Sensys hinge with part number 9073626 uses integrated overlay adjustment of plus 2 mm to minus 2 mm, giving lateral door movement right at the hinge, which simplifies setting even gaps down a cabinet run. Integrated depth adjustment of plus 3 mm to minus 2 mm lets the door move toward or away from the cabinet front, helping align door faces flush across varying carcass and door tolerances. Height adjustment at the mounting plate handles vertical positioning, so the top and bottom edges of doors can be brought into line without altering the bore pattern. The 110 degree opening angle sets a predictable swing, which is important when positioning cabinets near walls or appliances where door clearance must be considered.

Using This Full Overlay Concealed Hinge In Practice

Where This Full Overlay Face-Frame Hinge Fits

This hinge is described as a full overlay face-frame and frameless hinge, so it is intended for cabinet applications where the door overlays the front significantly, whether the cabinet is built with a face frame or as a frameless box. The concealed design classifies it as a European standard long arm hinge, which places the hinge arm and cup out of sight when the door is closed while leaving interior space clear due to the zero protrusion feature. The wide automatic closing angle of 35 degrees means that once the door moves into this range, the hinge pulls it closed, which is helpful on taller doors and banks of doors where consistent closing behavior is required.

Why Sensys Adjustments And Damper Support Results

The temperature stable damper rated from 41 F to 104 F (5 C to 40 C) keeps the Silent System soft-close feature working in typical indoor temperature swings, so doors close in a controlled way in common shop, kitchen, or office environments. Integrated overlay and depth adjustments built into the hinge allow installers to correct for minor drilling variation and cabinet out-of-square conditions while the door remains mounted, saving time during final fit and reducing rework. Height adjustment at the mounting plate allows small vertical changes after installation, which is useful when aligning long runs of cabinets or stacked doors without altering hinge cup locations. The EN 15570, Level 3 quality classification ties the hinge to a tested European concealed hinge standard, giving a defined performance class for projects that reference this level.

Common Questions About The Sensys 110 Degree Hinge

Selecting This Sensys Hinge For Your Cabinet Run

The Sensys 110 degree concealed cabinet hinge with Silent System combines zero protrusion geometry, integrated three-way adjustments, and a temperature stable damper to support accurate door alignment and controlled closing on full overlay face-frame or frameless projects. Use the specified door thickness range of 15 mm to 24 mm, cup depth of 12.8 mm, and stated adjustment values when planning boring patterns and overlays. For cabinet hardware sourcing, Wurth Baer Supply offers this Hettich Sensys soft-close hinge as part of its concealed European hinge selection for woodworking professionals.
