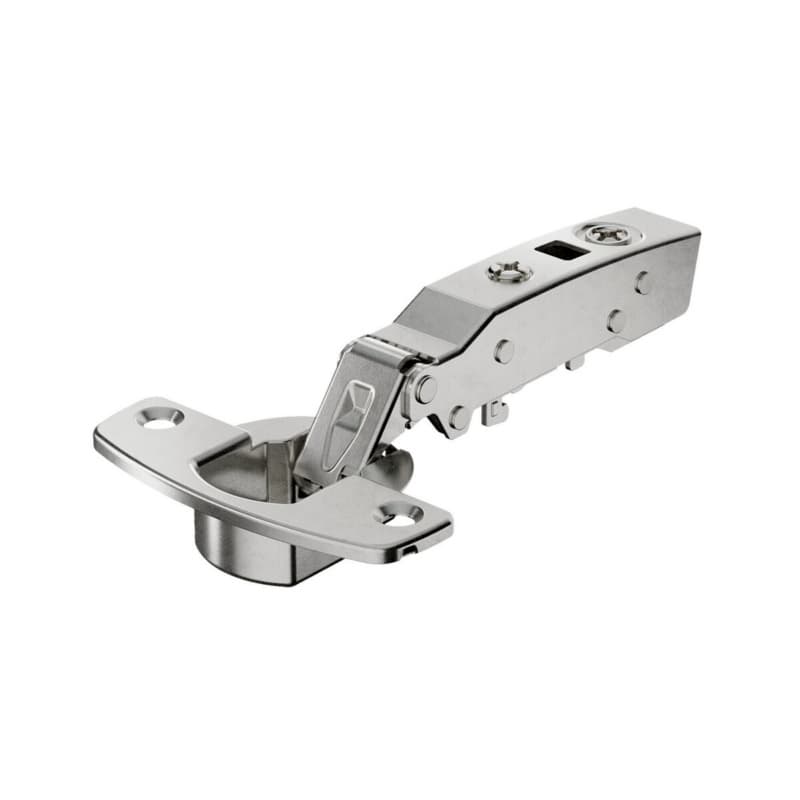

Hettich Sensys soft-close hinge is a concealed cabinet hinge designed for full overlay face-frame and frameless applications, so one hinge style can serve multiple cabinet constructions in the shop. As part of the European standard hinge class, it stays hidden inside the cabinet while controlling movement at the door. The zero protrusion geometry allows interior storage space to be used more effectively because shelves can extend without the hinge arm projecting into the cabinet opening. A wide automatic closing angle of 35 degrees draws the door into the frame smoothly from a partially open position, helping doors settle consistently against the front edge. Sensys hinges from Hettich use the Silent System, which manages closing speed inside the hinge and keeps the motion controlled on every cycle.
This Sensys hinge is a screw-on style, so the hinge cup and arm fasten directly to the door and mounting plate using screw attachment points already formed into the components. The hinge cup depth of 12.8mm fits standard European hinge boring operations, which keeps door preparation straightforward when drilling hinge cups. Integrated overlay adjustment of plus 2mm to minus 2mm in the hinge arm allows the door overlay on the cabinet front to be shifted after mounting, so door gaps along the front can be tuned without reboring holes. Integrated depth adjustment of plus 3mm to minus 2mm lets the door move in and out relative to the cabinet side, which helps align the door plane with neighboring doors or drawer fronts.
Sensys hinges from Hettich are described as zero protusion concealed hinges, so when the door is opened the hinge arm stays inside its own envelope and does not jut into the cabinet interior. This characteristic is valuable on full overlay face-frame and frameless cabinets where interior pull-out trays or adjustable shelves run close to the front. Because the hinge does not protrude into the opening, designers can bring interior components closer to the cabinet front, helping maximize storage space. The full overlay configuration works with doors that cover the front of the cabinet, supporting clean, uninterrupted front surfaces in kitchen or casework layouts. As a concealed cabinet hinge, it keeps the operating hardware out of sight when the door is closed, leaving only the door and cabinet faces visible in the finished installation.
The Sensys 9071223 hinge combines overlay, depth, and height adjustment at the hinge and mounting plate to simplify door alignment across a run of cabinets. Integrated overlay adjustment of plus 2mm to minus 2mm lets the installer shift a mounted door sideways to fine-tune reveals between doors and adjacent panels, which is helpful when cabinetry must line up across uneven walls. Integrated depth adjustment of plus 3mm to minus 2mm moves the door toward or away from the cabinet side, so the door face can be set flush with nearby fronts without altering the hinge cup position. Height adjustment at the mounting plate provides vertical movement, which supports leveling doors relative to one another along tall pantry units or wall runs. The Silent System soft-close feature built into the hinge manages closing speed as the door reaches the cabinet, which reduces slamming forces on the hinge arm and mounting points over repeated use. A temperature stable damper rated from 41 F to 104 F keeps this soft-close action more predictable in normal heated or cooled interiors, supporting consistent door behavior through seasonal temperature swings. Quality classification under EN 15570, Level 3, identifies the hinge as meeting a defined European standard for long-term function, which supports confidence when specifying the part for frequently used cabinet doors.
The Sensys 9071223 is a concealed cabinet hinge in the European standard hinge class, so it mounts inside the cabinet and stays hidden when the door is closed.
The full overlay design lets the door cover the cabinet front, which supports clean, continuous front surfaces on face-frame and frameless cabinet constructions.
Zero protrusion means the hinge arm does not extend into the cabinet interior, allowing shelves and pull-outs to use more of the opening width near the front.
The integrated overlay and depth adjustments let the installer shift the door sideways and in or out, which makes it easier to set even gaps and flush door planes.
The 12.8mm cup depth matches standard European hinge boring practices, so hinge cup holes can be drilled using familiar setups and common boring patterns.
The temperature stable damper keeps the soft-close motion more consistent between 41 F and 104 F, so door closing behavior remains steady in typical indoor conditions.
The Hettich Sensys soft-close hinge 9071223 combines full overlay capability with a zero protrusion concealed design, so it supports both storage efficiency and clean cabinet fronts. With integrated overlay, depth, and height adjustment, it lets doors be aligned across face-frame and frameless runs without changing bore locations. The Silent System soft-close mechanism and temperature stable damper manage movement during every close, while the EN 15570 Level 3 classification and steel nickel plated construction provide a documented hinge platform for regular-use doors. For cabinet projects needing concealed hardware, controlled closing, and efficient interior space near the hinge side, this Sensys model offers a focused solution ready to specify by part number.
Sold In: 1 Each
Quantity | Unit Price | Catalog | ||||
|---|---|---|---|---|---|---|
Sold in: 1 Each | HT9071650 Mfr# 9071650 | Adjustment Steel Cross Mounting Plate with Locating Pin/Special Screw, Nickel-Plated, 0mm | ||||
Sold in: 1 Each | HT9071645 Mfr# 9071645 | Adjustment Steel Cross Mounting Plate with Euro Screw, Nickel-Plated, 0mm | ||||
Sold in: 1 Each | HT9071670 Mfr# 9071670 | Adjustment Steel Cross Mounting Plate with Chipboard Screw, Nickel-Plated, 0mm | ||||
Sold in: 1 Each | HT9071655 Mfr# 9071655 | Sensys Cam Adjustment Face Frame Cross Mounting Plate, Nickel-Plated, Dowelled, 0mm | ||||
Sold in: 1 Each | HT9071575 Mfr# 9071575 | Cross Mounting Plate with Height Adjustment, Nickel-Plated, Screw-On, 0mm | ||||
Sold in: 1 Each | HT9071585 Mfr# 9071585 | Adjustment Cross Mounting Plate with Locating Pin/Special Screw, Nickel-Plated, 0mm | ||||
Sold in: 1 Each | HT9071625 Mfr# 9071625 | Euro Screw Mounting Plate, Nickel-Plated, Screw-On, 0mm | ||||
Sold in: 1 Each | HT9071595 Mfr# 9071595 | Adjustment Cross Mounting Plate with Expanding Socket, Nickel-Plated, 0mm |
Quantity | Unit Price | Catalog | ||||
|---|---|---|---|---|---|---|
Sold in: 1 Each | HT9072540 Mfr# 9072540 | Opening Angle Limiter for Sensys 110˚ Hinge, White |
Quantity | Unit Price | Catalog | ||||
|---|---|---|---|---|---|---|
Sold in: 1 Each | HT9084930 Mfr# 9084930 | Sensys Cam Adjustment Face Frame Mounting Plate, Nickel-Plated, Screw-On, 0mm | ||||
Sold in: 1 Each | HT9088247 Mfr# 9088247 | Face Frame Mounting Plate with Height Adjustment, Nickel-Plated, Screw-On, 1.5mm | ||||
Sold in: 1 Each | HT9179885 Mfr# 9179885 | 3mm Sensys Cam Adjustable Face Frame Mounting Plate, Nickel-Plated | ||||
Sold in: 1 Each | HT9088245 Mfr# 9088245 | Linear Mounting Plate with Height Adjustment, Nickel-Plated, Screw-On, 3mm | ||||
Sold in: 1 Each | HT9090884 Mfr# 9090884 | Sensys Cam Adjustment Universal Face Frame Mounting Plate, Nickel-Plated, Screw-On, 4.5mm | ||||
Sold in: 1 Each | HT9084931 Mfr# 9084931 | Sensys Cam Adjustment Face Frame Mounting Plate, Nickel-Plated, Screw-On, 4.5mm |
Quantity | Unit Price | Catalog | ||||
|---|---|---|---|---|---|---|
Sold in: 1 Each | HT9071668 Mfr# 9071668 | Adjustment Cross Mounting Plate with Euro Screw, Nickel-Plated, 5mm | ||||
Sold in: 1 Each | HT9071673 Mfr# 9071673 | Adjustment Steel Cross Mounting Plate with Chipboard Screw, Nickel-Plated, 5mm | ||||
Sold in: 1 Each | HT9071658 Mfr# 9071658 | Sensys Cam Adjustment Face Frame Cross Mounting Plate, Nickel-Plated, Dowelled, 5mm | ||||
Sold in: 1 Each | HT9071578 Mfr# 9071578 | Adjustment Cross Mounting Plate, Nickel-Plated, Screw-On, 5mm | ||||
Sold in: 1 Each | HT9071628 Mfr# 9071628 | Adjustment Cross Mounting Plate with Euro Screw, Nickel Plated, 5mm | ||||
Sold in: 1 Each | HT9071598 Mfr# 9071598 | Adjustment Cross Mounting Plate with Expanding Socket, Nickel-Plated, 5mm |
