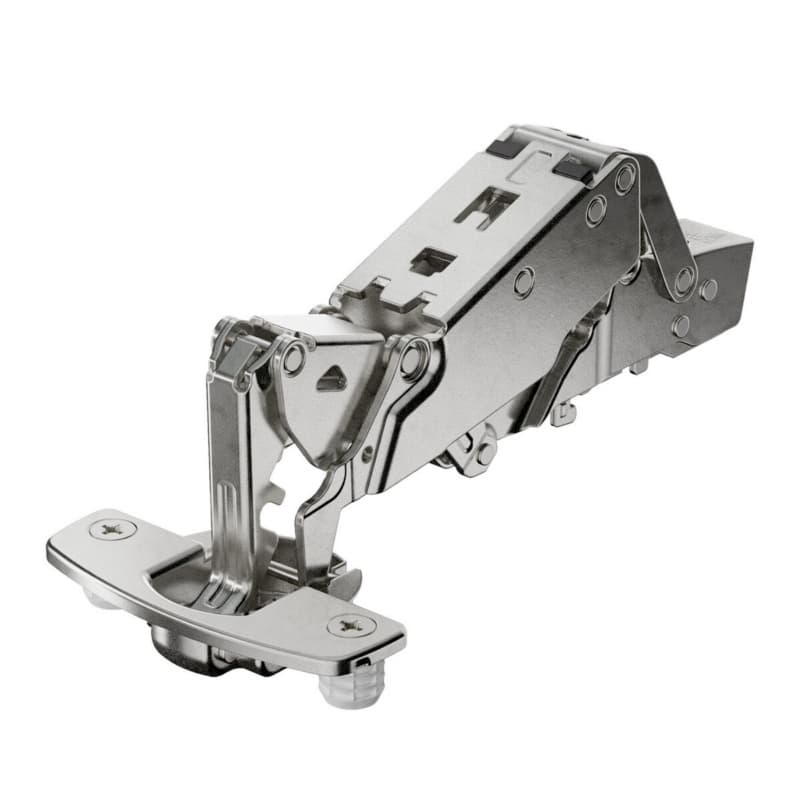

165D Sensys soft-close hinge is a concealed cabinet hinge from Hettich America Corporation that combines a 165 degree opening angle with an integrated Silent System and self-closing feature. The hinge belongs to the Sensys 8657i series, so the soft-close function is built into the hinge body and controls the closing motion for quiet, controlled door travel on cabinets. As a full overlay hinge, it is designed for door mounting where the door overlays the cabinet front, which suits both face-frame and frameless applications that require overlay doors. The hinge is classified as a European concealed long arm hinge and a European zero protrusion hinge, so it supports modern cabinet layouts where the arm stays out of the interior when doors are opened. As a concealed cabinet hinge, it keeps hardware out of sight while handling frequent door cycles in normal cabinet use.
The 165 degree Sensys soft-close hinge is designed for installation with expanding sockets, so the dowel configuration locks into prepared bores in the door for a secure cup fit. The hinge supports a door thickness range from 15 to 32 mm, covering common cabinet door constructions within that span. Integrated overlay adjustment of plus 2 mm to minus 2 mm at the hinge lets the door be shifted sideways on the cabinet after mounting, which helps align door gaps with adjoining fronts. Integrated depth adjustment of plus 3 mm to minus 2 mm provides front-to-back positioning of the door relative to the cabinet front, which helps set reveal and flushness. Height adjustment is handled at the mounting plate, so vertical positioning can be tuned on the plate to line up doors along the run.
This Hettich Sensys soft-close silent system full overlay hinge is specified for both face-frame and frameless cabinets using overlay doors, so it suits projects that mix construction styles while keeping a similar front appearance. The 165 degree opening angle allows doors to open wide in kitchen, bath, or storage cabinets, which helps when interior hardware or shelving sits near the door swing. As a European concealed long arm hinge and European zero protrusion hinge, it keeps the hinge arm inside the envelope that avoids projecting into the cabinet space when open, which benefits installations with interior pull-outs or trays that move past the hinge zone. The door mounting option is overlay, so the door covers the cabinet front edge, supporting continuous face lines across a run of cabinets.
The integrated overlay adjustment of plus 2 mm to minus 2 mm gives sideways movement at the hinge, which allows fine-tuning of door gaps for a clean, even reveal across multiple doors. The depth adjustment of plus 3 mm to minus 2 mm directly at the hinge lets the installer position the door front relative to the cabinet face, which supports correct flushness when coordinating with adjacent fronts or appliances. Height adjustment located at the mounting plate provides vertical tuning, which helps line up rail joints and maintain straight horizontal lines along upper or base cabinets. Quality classification under EN 15570, Level 3 indicates the hinge has been tested within that standard, which supports use in situations where performance level under the EN 15570 framework is important. The nickel plated steel construction contributes a robust metal hinge body with a plated finish that suits concealed locations inside cabinets while working with the integrated Silent System and self-closing feature to handle regular door movement.
The Hettich 9099561 is a concealed cabinet hinge in the Sensys 8657i series, so it mounts inside the cabinet and provides soft-close, self-closing performance for full overlay doors.
The hinge has a 165 degree opening angle, allowing the door to swing very wide, which improves cabinet access and clearance for interior storage or pull-outs.
The hinge is specified for door thickness from 15 to 32 mm, covering many typical cabinet door constructions within that range for face-frame and frameless layouts.
The hinge uses installation with expanding sockets in dowel form, so the cup fits a drilled TB 45 x 9.5 mm pattern with 11.6 mm cup depth for secure seating.
The hinge provides integrated overlay adjustment of plus 2 mm to minus 2 mm and depth adjustment of plus 3 mm to minus 2 mm, with height adjustment handled at the mounting plate.
The hinge is made from nickel plated steel and carries an EN 15570, Level 3 quality classification, pairing metal construction with a tested performance level.
The Hettich Sensys soft-close silent system full overlay hinge with 165 degree opening angle, EN 15570 Level 3 classification, and nickel plated steel construction provides a defined solution for overlay cabinet doors. With a drilling pattern of TB 45 x 9.5 mm, 11.6 mm cup depth, and dowel installation using expanding sockets, the geometry and mounting style are clearly specified for door preparation. Integrated overlay and depth adjustments at the hinge, plus height adjustment at the mounting plate, support alignment of doors on both face-frame and frameless cabinets using overlay fronts during installation and later fine-tuning.
Sold In: 1 Each
