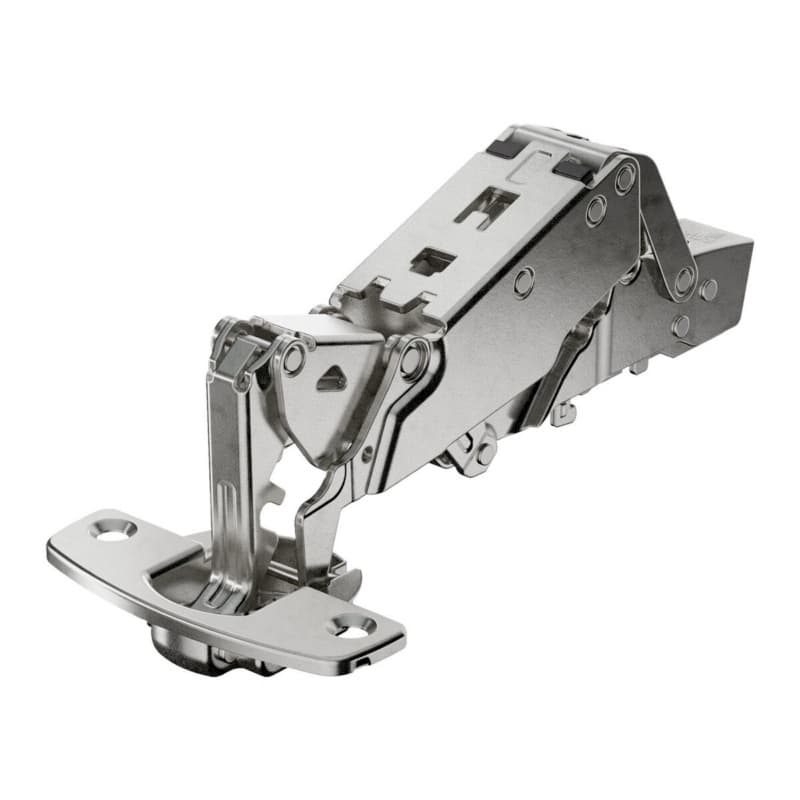

Hettich Sensys Soft-Close Hinge For Wide Opening

Hettich Sensys soft-close hinge gives concealed cabinet doors a wide 165 degree opening while keeping the hardware out of sight, which helps cabinets in busy shops or kitchens open fully without hardware snagging stored items. This zero protrusion hinge keeps the door and hinge out of the cabinet interior sweep, which allows drawers or pull-outs to function in the same cabinet without interference from the hinge arm. The full overlay design lets the door cover the cabinet front, which is useful when aligning door reveals across face-frame or frameless runs. As a concealed long arm hinge, it mounts inside the cabinet, which preserves a clean exterior appearance and protects the mechanism from jobsite bumps. The soft-close Silent System function cushions door closing, which reduces slamming noise in woodworking, commercial, or residential spaces.

Key Working Advantages Of This Sensys Hinge

• The wide automatic closing angle of 35 degrees pulls the door shut from a partially closed position, which speeds day-to-day use and helps doors seat consistently without needing a hard push on every close.
• The temperature stable damper rated for 41 F to 104 F (5 C to 40 C) keeps the soft-close action consistent in typical indoor conditions, which supports predictable door motion in shops, homes, and commercial installations over changing seasons.
• The zero protrusion wide angle design allows interior drawers or pull-outs to operate with the door open 90 degrees or more, which helps maximize storage layouts without hinge arms blocking moving components in the cabinet.
• The full overlay configuration is suited to doors covering the cabinet front, which simplifies creating continuous, aligned door faces on face-frame or frameless casework using the same hinge family.
• The steel and die-cast zinc nickel plated construction provides a robust hinge body with a protective surface, which supports long-term performance of the concealed mechanism in typical cabinet environments.

Installation And Adjustment Details For This Hinge

This Sensys 165 degree hinge uses a screw-on mounting style, which lets the installer fasten the hinge directly to the cabinet and door for a secure mechanical connection during fitting. The cup depth of 11.6 mm defines the bore depth in the door, which guides drilling setups so the hinge sits flush and the arm geometry works as designed. The integrated overlay adjustment of plus 2 mm and minus 2 mm allows fine-tuning the door position after mounting, which helps align reveals between adjacent doors without redrilling. Height adjustment is located at the mounting plate, which lets the installer shift the door up or down on the cabinet to correct small layout variances or sag that can appear once multiple doors are hung.

Using This Full Overlay Hinge In Real Projects

Where This Zero Protrusion Hinge Performs Best

This Sensys 165 degree wide angle hinge is designed for full overlay doors on both face-frame and frameless cabinets, which gives flexibility when standardizing one hinge style across different casework builds. The wide opening angle provides generous access to cabinet interiors, which is particularly helpful on corner units or cabinets with deep pull-outs where extra swing makes loading and unloading easier. Zero protrusion keeps the door and hinge arm clear of interior hardware when the door is open, which is valuable wherever roll-out trays, internal drawers, or organizers share the same space as the door. As a concealed cabinet hinge, it suits applications where a clean frontal appearance is required, such as commercial millwork, built-in furniture, and higher-end residential cabinetry.

How Sensys Details Support Reliable Door Alignment

The integrated overlay adjustment of plus 2 mm and minus 2 mm lets installers dial in the side-to-side position of the door relative to the cabinet edge, which streamlines achieving even gaps across a bank of doors after the hinges are fastened. Height adjustment at the mounting plate gives vertical correction without moving the cup holes, which is useful when small cumulative tolerances in drilling or carcass construction shift door positions over a run. The automatic closing angle of 35 degrees pulls doors from partly open to fully shut, which helps doors land consistently against the cabinet without needing forceful closing. The temperature stable damper keeps the soft-close performance steady within 41 F to 104 F (5 C to 40 C), which supports uniform closing speeds in climate-controlled interiors. Quality classification under EN 15570, Level 3 indicates the hinge has been tested to a recognized standard, which provides confidence when specifying it for frequently used cabinet doors.

Common Questions About The Sensys 165 Degree Hinge

Select This Hinge For Wide Soft-Close Overlay Doors

The Hettich Sensys soft-close hinge with 165 degree opening, full overlay capability, and zero protrusion design offers a practical option when cabinets require wide access and concealed hardware. Its screw-on mounting and 11.6 mm cup depth support predictable drilling and fastening layouts across multiple doors. Integrated overlay and height adjustments help align reveals cleanly on both face-frame and frameless casework. For projects where soft-close action, wide opening, and reliable alignment matter, this Sensys 9099560 hinge from Wurth Baer Supply is a strong fit for professional cabinet installations.
