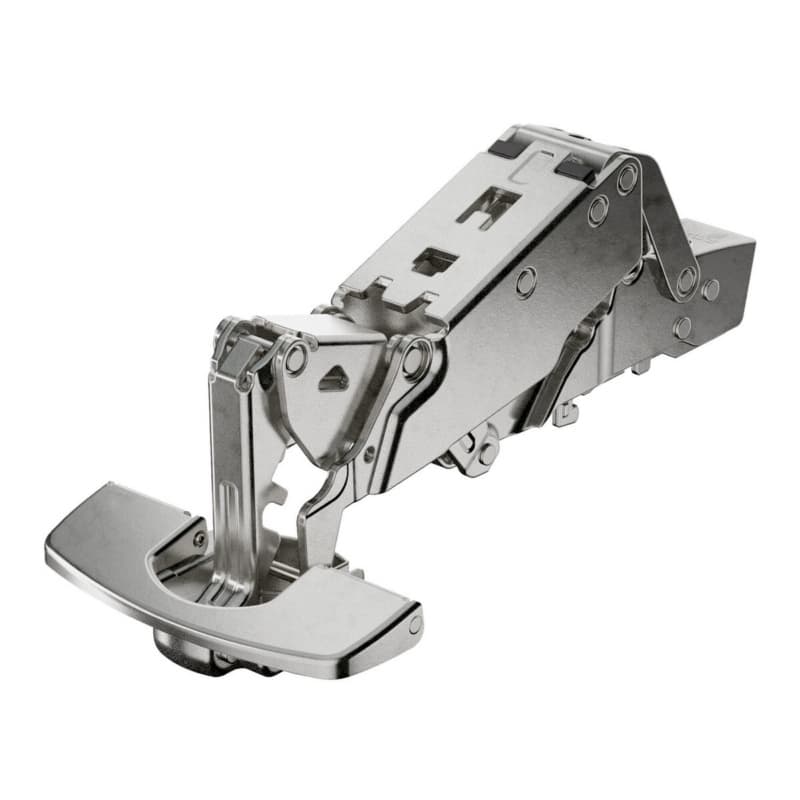

Hettich Sensys Soft-Close Silent System Full Overlay Face-Frame;Frameless Hinges Nickel, 165° Toolless - 9099563

Sensys 165 Degree Hinge For Wide Door Swing

Sensys 165 degree hinge from Hettich America Corporation is a concealed cabinet hinge designed to give a wide opening angle while keeping the hardware out of sight, which helps maintain a clean cabinet appearance on finished jobs. As a zero protrusion hinge, it keeps the door clear of the cabinet interior when opened, which frees up storage space and reduces interference with pull-outs or interior fittings. The hinge provides full overlay for face-frame or frameless cabinets, so the door can cover the cabinet front as intended while still aligning consistently across a run. As a soft close Silent System hinge, it controls door closing speed, which helps protect fronts and reduces noise in kitchens, baths, and commercial spaces. The long arm European style design fits standard concealed hinge layouts, supporting repeatable drilling and straightforward replacement work.

Key Soft Close Hinge Details For Daily Use

• The wide 165 degree opening angle lets doors swing far out of the way, which gives better access to cabinet interiors in tight or busy work areas.
• Zero protrusion geometry keeps the door clear of the cabinet interior when opened, which allows storage space to be used more efficiently around pull-outs or organizers.
• The Silent System soft-close function slows the last part of the swing, which reduces slamming impact on doors and frames during everyday use.
• The hinge is suitable for door thickness from 15 to 32 mm, which covers a broad range of panel constructions often used in residential and commercial cabinetry.
• A cup depth of 11.6 mm allows the hinge cup to sit properly in standard European hinge boring patterns, which supports accurate drilling and consistent seating in the door.
• The hinge is nickel plated over steel and die-cast zinc, which protects the functional parts from wear and helps maintain a uniform appearance in the cabinet interior.

Hinge Adjustment And Fit For Cabinet Alignment

This Hettich Sensys concealed cabinet hinge provides integrated overlay adjustment of plus 2 mm to minus 2 mm, which lets the installer fine tune the door reveal after mounting without reboring or remounting. Height adjustment occurs at the mounting plate, so vertical gaps between doors and cabinet edges can be corrected directly on the installed hardware instead of altering the casework. The hinge belongs to the concealed long arm European hinge class, which matches common drilling jigs and production setups in cabinet shops. Quality classification under EN 15570 Level 3 indicates that the hinge is built for demanding use, which supports long service life expectations in kitchens, baths, or frequent-use storage zones.

Using This Sensys Hinge In Cabinet Projects

Where This Full Overlay Hinge Works Best

This Sensys soft close cabinet hinge is designed as a full overlay hinge for face-frame and frameless cabinets, so it suits projects where the door needs to cover the cabinet front fully while still operating smoothly. The 165 degree opening angle lets doors open wide in corner cabinets or tall units, which helps when loading larger items or when multiple doors are open in a small room. Zero protrusion ensures the open door does not project into the cabinet interior, which allows interior roll-outs or trays to move freely without contact against the door edge. The hinge operates with a temperature stable damper between 41 degrees F and 104 degrees F, which maintains the soft-close function in typical indoor environments across seasonal changes. As a concealed cabinet hinge in nickel finish, it keeps the hardware visually uniform inside the case while leaving exterior faces uninterrupted.

Details That Support Repeatable Alignment And Service

The integrated overlay adjustment of plus 2 mm to minus 2 mm allows small lateral corrections on each door, which shortens time spent chasing even reveals across a whole run of cabinets. Height adjustment at the mounting plate lets installers shift doors up or down against the case, which is helpful for correcting minor construction tolerances without altering hinge cup positions. The 11.6 mm cup depth aligns with common boring depths for European concealed hinges, which keeps the drilling process straightforward with standard tooling. Classification to EN 15570 Level 3 signals that the hinge meets a recognized performance standard, which supports specifying it in projects where documented hinge performance is required. Construction from steel and die-cast zinc with nickel plating provides a robust hinge body and corrosion-resistant surface, which helps the moving parts continue performing smoothly in regular kitchen and bath humidity. With a wide automatic closing angle of 35 degrees, the hinge begins to pull the door closed from a partially open position, which helps doors settle consistently against the cabinet front during everyday use.

Common Questions About This Sensys Hinge

Selecting This Hinge For Your Next Cabinet Run

The Hettich Sensys 165 degree hinge with Silent System provides wide opening, soft close action, and full overlay performance for face-frame and frameless cabinets, which supports smooth, quiet doors across residential or commercial runs. Zero protrusion and a 165 degree swing help cabinets work efficiently with interior pull-outs, while integrated overlay and height adjustments simplify achieving even reveals. Specifying this nickel plated concealed cabinet hinge brings a European standard hinge solution with EN 15570 Level 3 classification, which suits projects where documented hinge performance and consistent operation matter.
