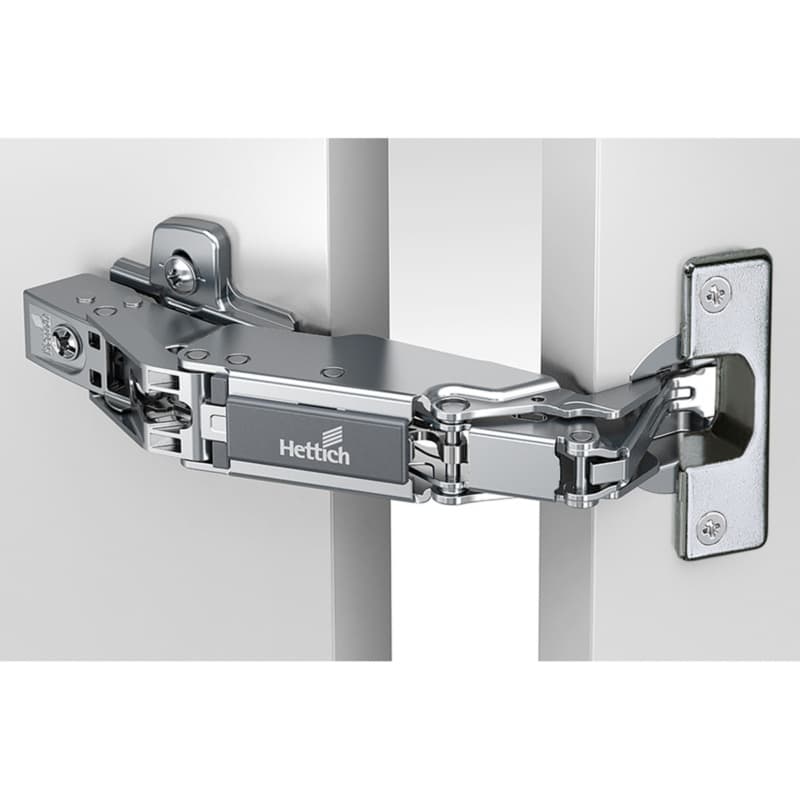

Hettich Sensys Self-Close Hinge For Wide Access

Hettich Sensys self-close hinge is a concealed cabinet hinge designed as a zero protrusion wide angle hinge, so the door opens to 165 degrees while staying clear of interior pull-outs in standard cabinet layouts. This Sensys hinge is specified as full overlay for face-frame and frameless applications, so the door can cover the cabinet side or frame style while using the same hinge line. The hinge is part of the Sensys range from Hettich, giving a consistent concealed look across cabinet runs. Classified as a European concealed long arm hinge in the European standard hinges category, it suits modern cabinet construction where clean exterior lines and accessible interiors are required. The concealed design keeps the hardware out of sight when the door is closed, which helps projects that call for uninterrupted finished surfaces on visible cabinet faces.

Wide Angle Sensys Hinge Details That Matter

• The Sensys hinges from Hettich are described as zero protrusion concealed hinges, which lets the door swing through a wide arc without the hinge arm projecting into the cabinet opening, helping interior fittings retain full access.
• The Sensys wide angle hinge opens to 165 degrees, giving near full access to the cabinet interior so larger items can pass through the opening without catching on the door edge during normal use.
• The hinge has a wide automatic closing angle of 35 degrees, so once the door reaches this point the self-close function pulls it shut, which helps doors return to the closed position consistently in everyday operation.
• The hinge uses a temperature stable damper rated from 41 degrees F to 104 degrees F, so the closing function is designed to perform consistently in that range, which aligns with typical interior room conditions.
• The hinge has integrated overlay adjustment of plus 2mm to minus 2mm, giving lateral movement at the hinge line so doors can be shifted side-to-side on the cabinet for even reveals.
• The hinge has integrated depth adjustment of plus 3mm to minus 2mm, so the door position can be moved in and out relative to the cabinet front, which helps align doors with adjacent fronts on site.
• Height adjustment is located at the mounting plate, so vertical alignment is handled there, allowing the installer to fine-tune gaps between doors and drawer fronts without changing the hinge cup position.
• The hinge is made from steel with a nickel plated finish, so the working components are built from metal with a plated surface that suits typical cabinet environments and matches common interior hardware finishes.

Screw-On Sensys Hinge Mounting And Alignment

The Sensys 165 degree hinge is specified as a screw-on type, so the hinge arm is secured to its mounting points using screws in the designated locations on the hinge parts. The hinge cup depth is 11.6mm, which defines the drilling depth for the cup hole in the door and sets how the hinge sits in the door thickness range during installation. The hinge is rated for door thickness from 15mm to 32mm, so it covers common cabinet door materials from lighter doors up through thicker fronts within that range. The full overlay description identifies its use where the door overlays the cabinet side or face frame, which lets a run of doors hide the cabinet structure while still working with the hinge geometry specified.

Using This Hettich Sensys Hinge In Cabinet Work

Where This Zero Protrusion Hinge Performs Best

This Sensys wide angle hinge is described as a zero protrusion concealed hinge, so when the door is open to its 165 degree swing, the hinge arm does not extend into the interior cabinet space, which supports use with interior organizers or pull-outs located behind the door line. As a full overlay face-frame and frameless hinge, it is suited to cabinets where the door is planned to cover the front edge, so a row of doors can present a continuous surface whether the underlying cabinet is framed or frameless. The hinge belongs to the concealed cabinet hinges class and the European concealed long arm hinges category, which places it within systems commonly used in modern kitchen, bath, and casework projects where adjustability and hidden hardware are standard expectations. Its nickel finish on steel lets the hinge integrate visually with typical nickel toned interior fittings whenever the door is open.

Adjustment And Classification For Consistent Results

The integrated overlay adjustment of plus 2mm to minus 2mm and integrated depth adjustment of plus 3mm to minus 2mm provide three-way door adjustment when paired with the height adjustment at the mounting plate, so the installer can dial in lateral, in-and-out, and vertical positioning without redrilling hinge cups. This hinge carries a quality classification under EN 15570, Level 3, which identifies it under a European standard level for concealed hinges, supporting use where a rated hinge performance class is required in project specifications. The temperature stable damper rated from 41 degrees F to 104 degrees F keeps the self-close damping behavior within its designed range, so within those temperatures the door movement is designed to feel consistent from cabinet to cabinet. The screw-on mounting style also supports repeatable positioning because the hinge is fastened at defined screw points, which aligns with production drilling patterns and straightforward field fitting of the matching hinge plate.

Common Questions About The Sensys 165 Degree Hinge

Selecting This Sensys Hinge For Cabinet Projects

The Hettich Sensys self-close hinge described here combines a 165 degree wide opening angle, full overlay use on face-frame and frameless cabinets, and a zero protrusion configuration, so it supports cabinets that use interior organizers while still keeping fronts fully overlaid. With integrated overlay, depth, and height adjustments, along with a temperature stable damper and EN 15570 Level 3 classification, it aligns with projects that require a concealed hinge system with defined performance characteristics. For cabinet runs that call for concealed European standard hinges in a steel nickel plated finish, this Sensys 9099770 hinge provides the specified geometry and adjustment needed to set doors accurately.
