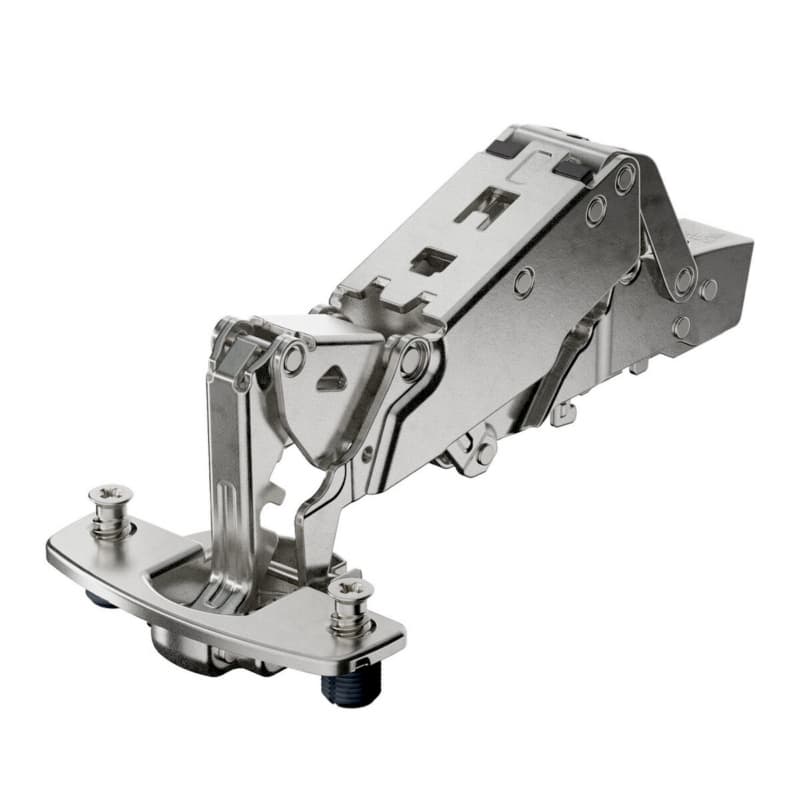

Hettich Sensys Soft-Close Silent System Full Overlay Face-Frame;Frameless Hinges Nickel, 165° Dowel - 9099566

Sensys Wide Angle Hinge For Full Overlay Doors

Sensys wide angle hinge from Hettich America Corporation is a concealed cabinet hinge designed as a zero protrusion hinge, so the door swings clear of the interior and supports efficient use of cabinet storage. This hinge offers a wide automatic closing angle of 35 degrees, which pulls the door closed smoothly from a generous opening range, helping doors settle consistently without slamming. The integrated Silent System soft-close function uses a temperature stable damper rated for 41 F to 104 F (5 C to 40 C), so the closing behavior remains predictable within normal room conditions. As a full overlay face-frame and frameless hinge in nickel finish, it supports a unified look on different cabinet constructions while keeping hardware hidden from the front. Classified under European concealed long arm hinges and European standard hinges, it fits into modern concealed hinge layouts where clean exterior lines and internal clearance are critical.

Key Sensys Hinge Details That Support Daily Use

• The 165 degree opening capability described for this hinge gives doors a very wide swing, which makes access to the cabinet interior easier when loading or working inside the space.
• The zero protrusion design keeps the open door from projecting into the cabinet interior, which helps drawers or pull-outs move freely without the door edge blocking their travel.
• The Silent System soft-close function integrated into the hinge cup slows the door at the end of travel, which reduces impact on the cabinet and helps protect fronts and frames from repeated hard closing.
• The temperature stable damper operating from 41 F to 104 F maintains similar soft-close performance in typical shop, home, or office environments, which supports consistent adjustment results during installation.
• The nickel plated steel and die-cast zinc construction provides a robust hinge body, which supports long-term hinge function under repeated opening and closing in cabinet applications.
• The quality classification under EN 15570, Level 3, indicates the hinge is tested to a high European standard, which matters on jobs where documented performance levels are specified.

Mounting And Adjustment Details For Accurate Fit

This Sensys 165 degree hinge uses an expansion dowel mounting design, which lets the hinge cup lock into the door with factory-formed dowels, supporting repeatable drilling patterns on production or custom doors. The cup depth of 11.6 mm defines the boring depth in the door, which helps align drilling setups and supports clean seating of the hinge cup without breaking through the face. The hinge is specified for door thickness from 15 mm to 32 mm, so it covers common cabinet door materials from thinner fronts up to heavier doors within that range. Integrated overlay adjustment of plus 2 mm to minus 2 mm at the hinge allows lateral positioning of the door on the cabinet, which simplifies fine tuning reveals after the doors are hung. Height adjustment is provided at the mounting plate, so vertical alignment can be dialed in along the face-frame or frameless side panel without re-boring or shifting the door itself.

Using This Concealed Hinge In Cabinet Projects

Where This Full Overlay Hinge Fits Best

This Hettich Sensys soft-close silent system full overlay face-frame and frameless hinge is designed for concealed cabinet applications where a clean exterior and generous opening angle are needed. As a concealed cabinet hinge in the European standard hinge family, it works in layouts using 35 mm hinge cups and matching mounting plates, which are common in modern cabinet construction. The full overlay configuration supports doors that cover the cabinet side or face-frame, letting the door edge align with adjacent fronts for a continuous look. With a door thickness range of 15 mm to 32 mm, it suits many MDF, particleboard, or solid doors sized within that specification on kitchen, bath, or commercial casework. The 165 degree opening capability helps on corner or storage cabinets where wider access to the interior simplifies loading items or working inside the cabinet space.

Details That Help Deliver Repeatable Door Alignment

The integrated overlay adjustment of plus 2 mm to minus 2 mm built into this Sensys wide angle hinge lets installers shift the door sideways relative to the cabinet after mounting, which helps achieve even gaps between doors without altering the drilling pattern. Height adjustment located at the mounting plate separates vertical corrections from the hinge cup position, so up-and-down alignment can be set directly on the casework for efficient on-site tuning. The cup depth of 11.6 mm gives a clear boring target, which supports consistent hinge cup installation across multiple doors using standard 35 mm boring equipment. The zero protrusion hinge geometry keeps the open door clear of the cabinet interior hardware path, which helps maintain smooth operation of interior pull-outs that share the opening. The temperature stable soft-close damper from 41 F to 104 F provides similar closing feel across typical indoor conditions, which supports consistent adjustments on different jobs in the same climate range.

Common Questions About The Sensys 165 Degree Hinge

Select This Sensys Hinge For Precise Cabinet Work

The Hettich Sensys 165 degree soft-close concealed cabinet hinge with full overlay design, zero protrusion geometry, and integrated overlay and height adjustments supports accurate door alignment on face-frame and frameless cabinets. Its 11.6 mm cup depth and dowel mounting layout match standard European concealed hinge drilling, which streamlines layout on production runs. With a door thickness range of 15 mm to 32 mm and nickel plated steel and die-cast zinc construction, it fits many cabinet projects needing a wide opening angle and controlled soft closing. For projects requiring documented performance, the EN 15570 Level 3 classification provides a tested standard for the hinge assembly, supporting specification-driven cabinet installations.
