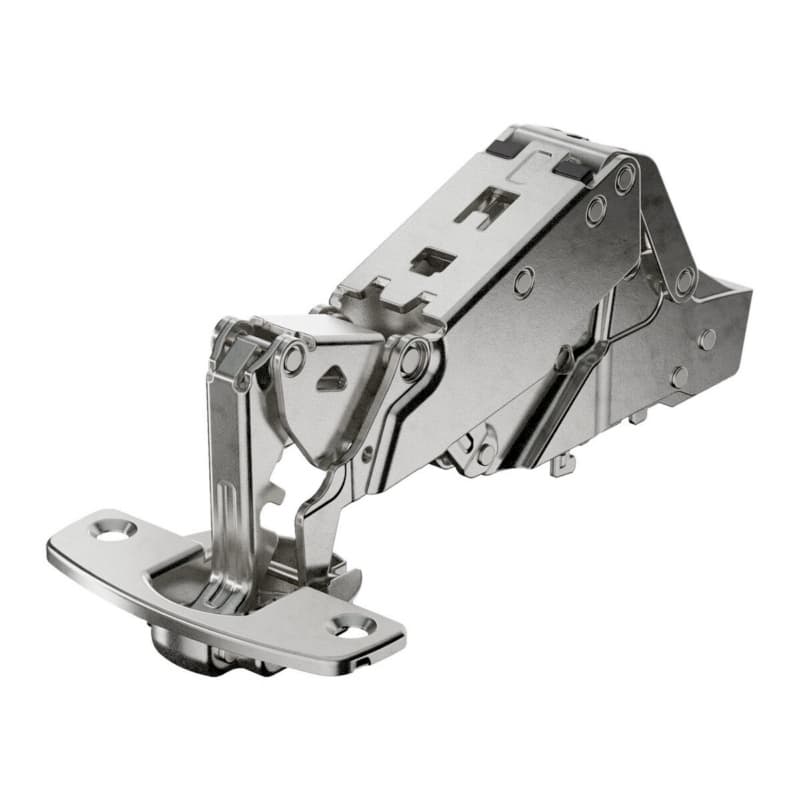

Hettich Sensys Soft-Close Hinge For Wide Access
Hettich Sensys soft-close hinge is a concealed cabinet hinge designed for wide opening and quieter door movement on face-frame or frameless cabinets. The 165 degree opening angle gives broad access across the cabinet front, which helps when loading deeper shelves or full-extension pull-outs. Zero protrusion keeps the door and hinge arm clear of the cabinet interior at full opening, supporting uninterrupted use of trays and organizers. The half overlay configuration allows the door to cover part of the cabinet side, which is useful where two doors share a center partition. Soft-close Silent System damping is built into the hinge, so the closing action is controlled and low impact during everyday use. Steel and die-cast zinc construction with nickel plating provides a robust hinge body with a hard-wearing surface for repeated door cycles in kitchen, bath, or shop cabinetry.
Key Sensys 165 Degree Hinge Working Advantages
- The 165 degree wide angle opening allows the door to swing far past standard hinges, improving reach into corner areas and making it easier to work with large items inside the cabinet.
- Zero protrusion at full opening keeps the hinge arm out of the interior space, which supports the use of interior pull-outs and organizers without the hinge colliding with moving elements.
- The soft-close Silent System damper moderates the closing speed, reducing impact at the frame and helping maintain alignment of doors over repeated everyday use.
- Integrated overlay adjustment of +2mm / -2mm lets the door position be shifted on the cabinet, which helps fine-tune reveals and achieve consistent gaps across a run of doors.
- Height adjustment at the mounting plate provides vertical tuning of the door edge, supporting quick correction of minor misalignment after installation or over time.
- Quality classification under EN 15570, Level 3 indicates the hinge is tested to a demanding performance standard, which supports long-term function in frequently used cabinets.
Mounting, Adjustment, And Cabinet Fit Details
The screw-on design lets the hinge be fixed to the door and cabinet with standard screws using common shop tools, which streamlines installation on both new builds and retrofits. The cup depth of 11.6mm fits doors drilled for that depth, supporting consistent boring setups across multiple doors in a project run. A door thickness range of 15-32mm covers many cabinet door constructions, giving flexibility for different panel builds within that range. Integrated overlay adjustment and height adjustment at the mounting plate provide two key planes of control, which supports accurate door alignment without re-drilling hinge positions. The concealed European-style format keeps the hardware hidden when the door is closed, presenting a clean cabinet front while delivering full hinge function behind the door.
Using This Concealed Hinge In Cabinet Projects
Where This Zero Protrusion Hinge Performs Best
This Sensys 165 degree hinge works well where wide door opening improves access, such as corner cabinets or cabinets with internal pull-out components. Zero protrusion at full opening allows doors to sit fully open without the hinge projecting into the cabinet interior, which is important when trays or baskets slide forward on their own hardware. Half overlay on face-frame or frameless cabinets suits layouts where two doors meet at a shared vertical member, allowing each door to cover part of the structure while still benefiting from the same concealed hinge design. The steel and die-cast zinc hinge body with nickel plating provides a stable platform for heavier or frequently used doors within the specified thickness range of 15-32mm. The concealed configuration keeps the hinge hidden behind the door, supporting a finished look on residential or commercial cabinet fronts while still offering wide-angle access.
Why The Sensys 165 Degree Hinge Aids Alignment
The integrated overlay adjustment of +2mm / -2mm lets the door overlay be shifted relative to the cabinet front after mounting, which helps dial in side-to-side reveals without changing drilling patterns. Height adjustment at the mounting plate adds vertical control, so the top and bottom edges of adjacent doors can be brought into a straight line across a cabinet run. The 11.6mm cup depth supports consistent drilling depth, which helps each hinge seat uniformly in the door and contributes to repeatable alignment. The soft-close Silent System damper manages closing speed, reducing abrupt impacts that can cause screws or mounting plates to loosen over long-term use. Quality classification under EN 15570, Level 3 reflects testing to a recognized European hinge standard, which supports dependable function where doors are opened and closed many times per day. The 165 degree opening angle allows doors to clear the front of adjacent cabinets more easily when swung fully open, reducing the chance of edge-to-edge contact during regular operation.
Common Questions About This Sensys 165 Hinge
What type of cabinet hinge is the Hettich 9099570?
The Hettich 9099570 is a concealed Sensys soft-close hinge for half overlay face-frame and frameless cabinets, so it mounts out of sight while controlling door movement on those cabinet constructions.
How wide does the Sensys 165 degree hinge open?
The Sensys 165 degree hinge opens to 165 degrees, which allows the door to swing very wide and improves access to cabinet interiors and pull-outs near the front edge.
What door thickness range does this hinge support?
This hinge is specified for door thicknesses from 15mm to 32mm, so it covers many common cabinet door constructions within that range on face-frame or frameless builds.
How does the soft-close Silent System help in daily use?
The built-in Silent System damper slows the door as it closes, reducing slamming forces at the frame and helping maintain stable alignment of doors over frequent openings and closings.
What does zero protrusion mean for cabinet interiors?
Zero protrusion means the hinge does not project into the cabinet interior at full opening, so interior pull-outs or trays can move without interference from the hinge arm.
How do the overlay and height adjustments support alignment?
The hinge offers +2mm / -2mm overlay adjustment and height adjustment at the mounting plate, which lets the installer fine-tune door gaps and edge alignment after mounting.
Choose This Hettich Hinge For Wide Opening Control
The Hettich Sensys soft-close hinge with 165 degree opening, zero protrusion, and half overlay configuration offers wide access with controlled closing on face-frame or frameless cabinets. The 11.6mm cup depth, 15-32mm door thickness range, and integrated overlay and height adjustments support precise alignment across cabinet runs. Steel and die-cast zinc construction with nickel plating, combined with EN 15570 Level 3 classification, provides a robust concealed hinge solution for frequently used cabinetry. Select this Hettich concealed cabinet hinge when a wide angle opening and soft-close damping are required within the stated dimensions and adjustment ranges.
