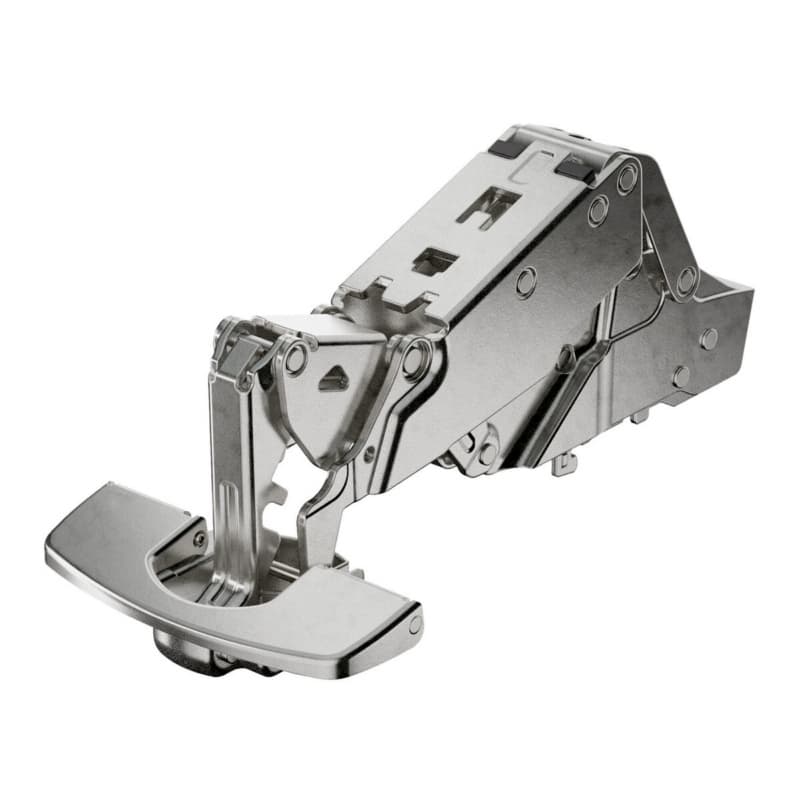

Hettich Sensys soft-close hinge is a concealed cabinet hinge designed to give a wide 165 degree opening angle while keeping hardware out of sight, which helps keep cabinet fronts clean and lets doors open far enough for full access to stored items. This hinge is described as a zero protrusion concealed hinge, so the hinge arm stays clear inside the cabinet when doors are open, which helps drawers and pull-outs move without interference behind the open door. The hinge is part of the Sensys Silent System line with soft-close, so the integrated damper slows the door toward the end of travel, which reduces slamming and helps protect cabinet fronts and door edges from impact. Classified as a concealed cabinet hinge in the European standard hinge category, it suits projects where hidden hardware and repeatable mounting are important.
The hinge is specified as a half overlay hinge for face-frame and frameless applications, so it is suited to layouts where the door overlays only part of the cabinet side or face-frame, which is common in multi-door runs and shared partitions. Door thickness capability from 15 mm to 32 mm covers many residential and commercial cabinet doors, so one hinge type can be applied across a range of fronts in the same project. Cup depth of 11.6 mm keeps the mortise relatively shallow, which helps when working with thinner doors within the stated range and reduces risk of breaking through the outside face during boring. Integrated overlay adjustment of plus or minus 2 mm is built into the hinge, so small side-to-side corrections can be made after mounting, which speeds alignment of reveals. Height adjustment is located at the mounting plate, allowing vertical tuning of the door position to even out gaps across a bank of doors.
The Sensys hinges from Hettich are described as zero protusion concealed hinges that are perfect for optimum use of storage space, which makes them suitable for cabinets that rely on full drawer or pull-out extension behind doors. Face-frame and frameless suitability allows the same hinge model to be used on different cabinet constructions within one job, which simplifies planning when a project mixes both styles. The wide automatic closing angle of 35 degrees means that once the door is brought near this angle the closing action continues on its own, which supports smooth, predictable closing in kitchens, baths, and storage rooms. The hinge function is supported by a temperature stable damper in the range 41 F to 104 F (5 C to 40 C), so the soft-close performance remains consistent in typical conditioned indoor spaces and does not vary sharply with seasonal temperature shifts. As a European concealed long arm hinge within the European standard hinge group, it offers the working clearances and motions that installers expect when laying out drilling patterns and door overlays in standard cabinet systems.
The soft-close Silent System built into this hinge means the damper is already integrated, which removes a separate step and provides a consistent closing curve across all doors that use the same model. The integrated overlay adjustment of plus or minus 2 mm in the hinge lets an installer fine-tune side gaps without remounting the cup, which cuts rework when aligning multiple doors in a continuous run. Height adjustment at the mounting plate separates vertical alignment from the cup position, which makes it easier to level doors relative to each other after the cabinet boxes are set and fastened. Door thickness coverage from 15 mm to 32 mm also reduces the need to change hinge types when moving from standard to thicker doors on the same project, which streamlines drilling setups. Quality classification under EN 15570, Level 3 indicates testing to a demanding standard for hinge performance, which supports confidence when specifying the hinge for frequently used cabinets in kitchens, medical spaces, or commercial storage. The steel and die-cast zinc nickel plated construction paired with zero protrusion geometry helps the hinge maintain its motion while staying out of the way of interior components, which is useful when designing cabinets with high-use pull-outs or internal organizers.
The Hettich Sensys 9099573 is a concealed cabinet hinge from the European standard hinge category, so it mounts inside the door and cabinet, keeping hardware hidden when the door is closed.
The Sensys soft-close hinge is specified with a 165 degree opening angle, allowing doors to swing very wide, which improves access to the cabinet interior and interior pull-outs.
This hinge is specified for door thickness from 15 mm to 32 mm, which covers many common cabinet door constructions and allows one hinge model to serve varied front designs within that range.
The hinge uses a temperature stable damper rated from 41 F to 104 F (5 C to 40 C), so the soft-close action remains consistent across normal indoor temperature variations on the job.
The Sensys 165 hinge offers integrated overlay adjustment of plus or minus 2 mm in the hinge and height adjustment at the mounting plate, which supports fine-tuning door reveals after mounting.
The EN 15570, Level 3 classification indicates the hinge is tested to a European standard for quality and function, supporting use in cabinets that see frequent opening and closing cycles.
This Hettich concealed cabinet hinge combines a 165 degree opening angle, zero protrusion design, and Silent System soft-close, which supports projects that need wide door swing and controlled closing. With door thickness coverage from 15 mm to 32 mm, the hinge suits many cabinet fronts across both face-frame and frameless construction. Integrated overlay and height adjustments help align doors cleanly with fewer steps, keeping installation efficient on multi-door runs. Using the EN 15570 Level 3 classified hinge in your layout helps deliver a consistent motion profile and cabinet access that matches the design intent.
Sold In: 1 Each
Quantity | Unit Price | Catalog | ||||
|---|---|---|---|---|---|---|
Sold in: 1 Each | HT9071650 Mfr# 9071650 | Adjustment Steel Cross Mounting Plate with Locating Pin/Special Screw, Nickel-Plated, 0mm | ||||
Sold in: 1 Each | HT9071645 Mfr# 9071645 | Adjustment Steel Cross Mounting Plate with Euro Screw, Nickel-Plated, 0mm | ||||
Sold in: 1 Each | HT9071670 Mfr# 9071670 | Adjustment Steel Cross Mounting Plate with Chipboard Screw, Nickel-Plated, 0mm | ||||
Sold in: 1 Each | HT9071655 Mfr# 9071655 | Sensys Cam Adjustment Face Frame Cross Mounting Plate, Nickel-Plated, Dowelled, 0mm | ||||
Sold in: 1 Each | HT9071575 Mfr# 9071575 | Cross Mounting Plate with Height Adjustment, Nickel-Plated, Screw-On, 0mm | ||||
Sold in: 1 Each | HT9071585 Mfr# 9071585 | Adjustment Cross Mounting Plate with Locating Pin/Special Screw, Nickel-Plated, 0mm | ||||
Sold in: 1 Each | HT9071625 Mfr# 9071625 | Euro Screw Mounting Plate, Nickel-Plated, Screw-On, 0mm | ||||
Sold in: 1 Each | HT9071595 Mfr# 9071595 | Adjustment Cross Mounting Plate with Expanding Socket, Nickel-Plated, 0mm |
Quantity | Unit Price | Catalog | ||||
|---|---|---|---|---|---|---|
Sold in: 1 Each | HT9100037 Mfr# 9100037 | Overlay Soft Opening for Sensys Wide Angle Hinge, Anthracite | ||||
Sold in: 1 Each | HT9100116 Mfr# 9100116 | Half Overlay Soft Opening for Sensys Wide Angle Hinge, Anthracite |
Quantity | Unit Price | Catalog | ||||
|---|---|---|---|---|---|---|
Sold in: 1 Each | HT9179885 Mfr# 9179885 | 3mm Sensys Cam Adjustable Face Frame Mounting Plate, Nickel-Plated | ||||
Sold in: 1 Each | HT9084930 Mfr# 9084930 | Sensys Cam Adjustment Face Frame Mounting Plate, Nickel-Plated, Screw-On, 0mm | ||||
Sold in: 1 Each | HT9088247 Mfr# 9088247 | Face Frame Mounting Plate with Height Adjustment, Nickel-Plated, Screw-On, 1.5mm | ||||
Sold in: 1 Each | HT9088245 Mfr# 9088245 | Linear Mounting Plate with Height Adjustment, Nickel-Plated, Screw-On, 3mm | ||||
Sold in: 1 Each | HT9084931 Mfr# 9084931 | Sensys Cam Adjustment Face Frame Mounting Plate, Nickel-Plated, Screw-On, 4.5mm | ||||
Sold in: 1 Each | HT9090884 Mfr# 9090884 | Sensys Cam Adjustment Universal Face Frame Mounting Plate, Nickel-Plated, Screw-On, 4.5mm |
Quantity | Unit Price | Catalog | ||||
|---|---|---|---|---|---|---|
Sold in: 1 Each | HT9071668 Mfr# 9071668 | Adjustment Cross Mounting Plate with Euro Screw, Nickel-Plated, 5mm | ||||
Sold in: 1 Each | HT9071673 Mfr# 9071673 | Adjustment Steel Cross Mounting Plate with Chipboard Screw, Nickel-Plated, 5mm | ||||
Sold in: 1 Each | HT9071658 Mfr# 9071658 | Sensys Cam Adjustment Face Frame Cross Mounting Plate, Nickel-Plated, Dowelled, 5mm | ||||
Sold in: 1 Each | HT9071578 Mfr# 9071578 | Adjustment Cross Mounting Plate, Nickel-Plated, Screw-On, 5mm | ||||
Sold in: 1 Each | HT9071628 Mfr# 9071628 | Adjustment Cross Mounting Plate with Euro Screw, Nickel Plated, 5mm | ||||
Sold in: 1 Each | HT9071598 Mfr# 9071598 | Adjustment Cross Mounting Plate with Expanding Socket, Nickel-Plated, 5mm |
Quantity | Unit Price | Catalog | ||||
|---|---|---|---|---|---|---|
Sold in: 1 Each | HT9090756 Mfr# 9090756 | 165˚ - 105˚ Opening Angle Limiter for Sensys Wide Angle Hinge, Anthracite | ||||
Sold in: 1 Each | HT9090864 Mfr# 9090864 | 165˚ - 90˚ Opening Angle Limiter for Sensys Wide Angle Hinge, Anthracite |
