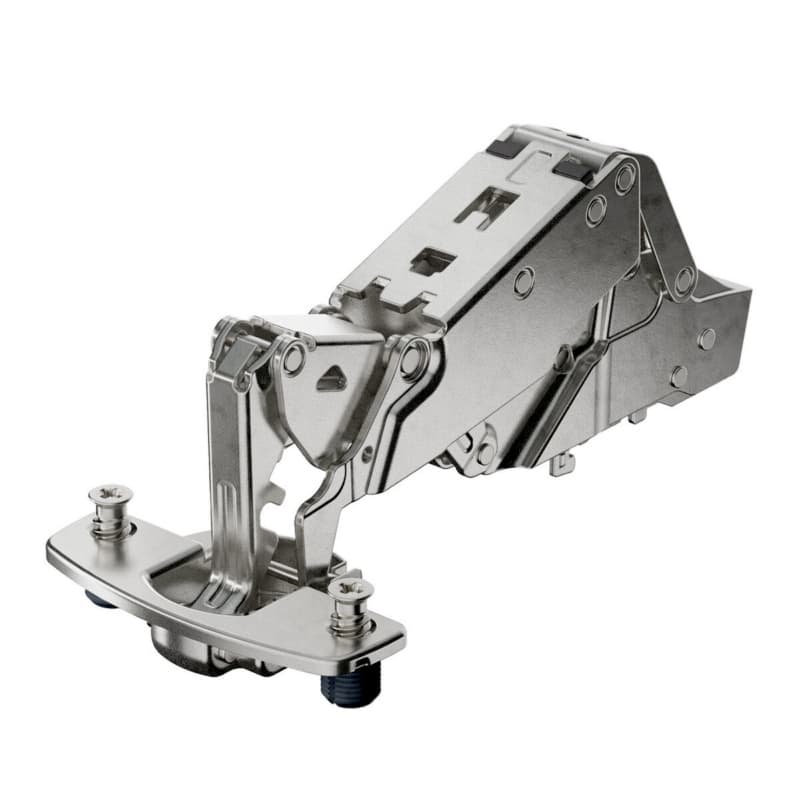

Hettich Sensys Soft-Close Silent System Half Overlay Face-Frame;Frameless Hinges Nickel, 165° Dowel - 9099576

Sensys 165 Degree Concealed Hinge For Storage

Sensys 165 degree concealed hinge delivers a wide opening angle while staying hidden in the cabinet, so fronts open generously without exposed hardware in finished work. This Hettich America Corporation hinge is a concealed cabinet hinge from the Sensys line, so it fits projects that call for a European standard hinge look. The hinge is designed as a half overlay option, which lets one cabinet side panel carry two doors with controlled coverage and consistent reveals. Its zero protrusion design keeps the open door clear of the interior, so pull-outs and storage space are not blocked by the hinge arm. As a soft-close Silent System hinge, it slows the door movement at the end of travel, which reduces door impact on the cabinet. The hinge operates to 165 degrees of opening, which helps when access into deep or wide cabinets is important on the job.

Key Sensys Hinge Details That Help On Site

• The wide automatic closing angle of 35 degrees pulls the door closed from an open position, which helps doors shut consistently without heavy force in everyday cabinet use.
• The temperature stable damper rated for 41 F to 104 F holds its soft-close function in common room conditions, which keeps the closing action predictable in normal interior environments.
• The integrated overlay adjustment of plus 2mm / minus 2mm allows fine tuning of the overlay position, which helps align doors to adjacent fronts without reboring or moving the cabinet.
• The height adjustment at the mounting plate provides vertical movement at the plate connection, which helps straighten reveals along the cabinet run after doors are hung.
• The hinge is classified to EN 15570, Level 3, which signals it has been tested to an industry standard level for concealed hinges that see regular cabinet service.
• The steel and die-cast zinc construction with nickel plating gives a hard-wearing metal body and a nickel finish, which supports long-term hinge function and a consistent interior hardware appearance.

Mounting, Cup Depth, And Door Thickness Setup

This Sensys hinge uses an expanding dowel design, which fits drilled mounting holes in the door and provides a secure mechanical hold when the dowels are set. The hinge cup depth is 11.6mm, so standard cup drilling operations can be matched to that depth for proper seating in the door. It is specified for door thickness from 15mm to 32mm, which covers a broad range of cabinet door materials used in residential and commercial work. The integrated overlay adjustment of plus 2mm / minus 2mm operates at the hinge, so side gaps can be dialed in without altering the drilling pattern. Height adjustment is located at the mounting plate, so vertical reveals can be refined after the doors are installed on the cabinet. These adjustment points allow final fitting to be handled with hardware settings rather than structural cabinet changes.

Using The Hettich Sensys 165 Hinge In Projects

Where This Sensys Half Overlay Hinge Fits Best

This Hettich Sensys soft-close Silent System half overlay hinge is suited to cabinets that need wide opening angles and efficient interior use. The 165 degree opening capability supports applications where deep drawers, pull-outs, or wide shelving sit behind the door, because the hinge arm stays clear thanks to the zero protrusion design. Being a concealed European standard hinge, it works well in frameless and face frame layouts that call for a clean exterior and accessible interior. The specified door thickness range of 15mm to 32mm covers typical panel constructions, so the same hinge type can be used across different cabinet lines using those thicknesses. With a cup depth of 11.6mm, the hinge matches common boring setups on standard cabinet doors, which keeps drilling operations consistent across a shop run while still accommodating the soft-close mechanism and angle geometry.

Why These Sensys Details Support Repeatable Results

The Silent System soft-close function built into this hinge manages the door closing speed at the end of swing, which helps reduce noise and stress on the cabinet when doors are used repeatedly. The wide automatic closing angle of 35 degrees means once the door passes that point the hinge takes over to pull it shut, which promotes uniform closing behavior across multiple doors on a bank of cabinets. The temperature stable damper rated from 41 F to 104 F maintains that controlled motion across typical interior temperature swings, so action remains similar from season to season within that band. The integrated overlay adjustment of plus 2mm / minus 2mm and the height adjustment at the mounting plate translate into quick fine tuning of gaps with a tool, which helps shorten final fitting time while still bringing doors into a precise alignment. EN 15570, Level 3 quality classification documents that the hinge design has been assessed to a recognized concealed hinge standard, which supports confidence when this model is selected for cabinets that see regular opening and closing in daily use.

Common Questions About This Sensys 165 Hinge

Selecting This Sensys Hinge For Your Cabinets

The Sensys 165 degree concealed hinge from Hettich America Corporation combines wide opening, zero protrusion, and Silent System soft-close in one concealed cabinet hinge, which suits storage-focused cabinets. With its half overlay setup, cup depth of 11.6mm, and door thickness range of 15mm to 32mm, it aligns with many European standard hinge drilling and construction practices. The integrated overlay and height adjustment features help dial in reveals after hanging the doors, so installation and final fit can be handled efficiently on site or in the shop.
