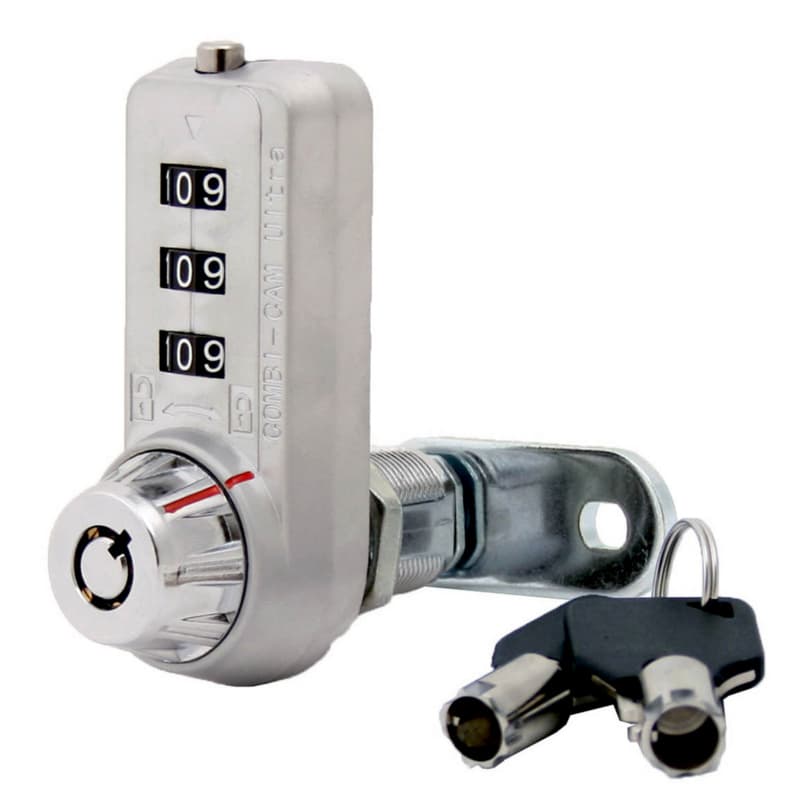

Olympus Lock, Inc Offset Cam 1/4" Set Back - 30026D

Olympus Lock Offset Cam For Locker Security

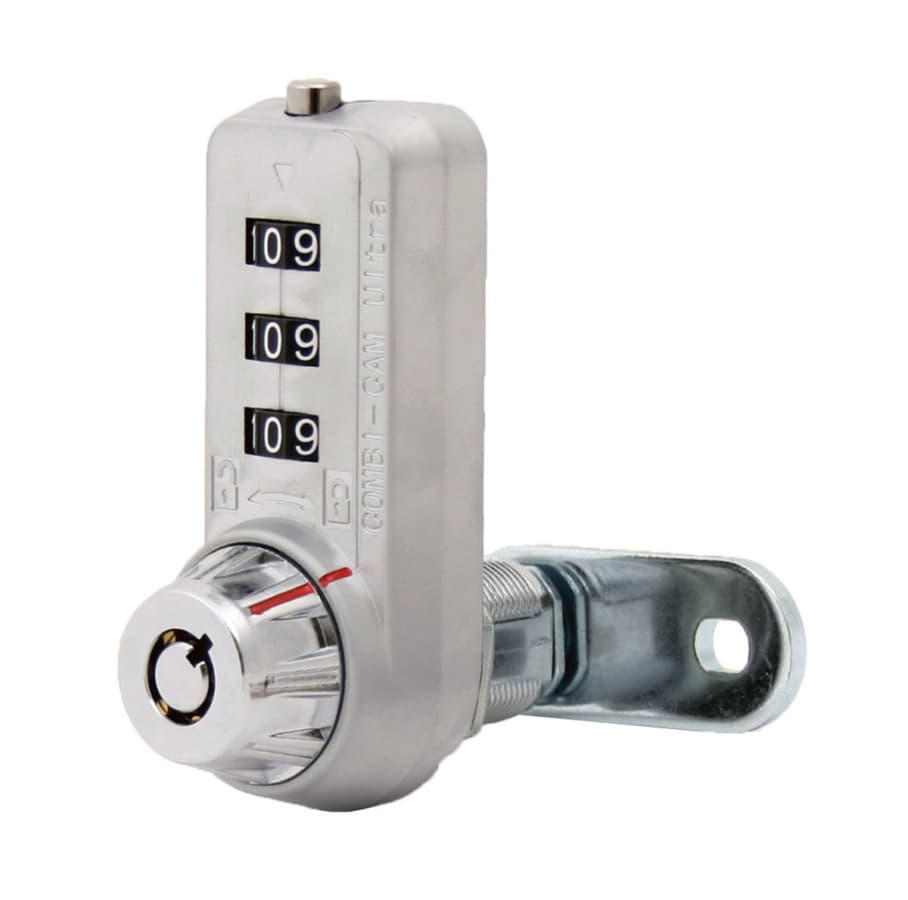

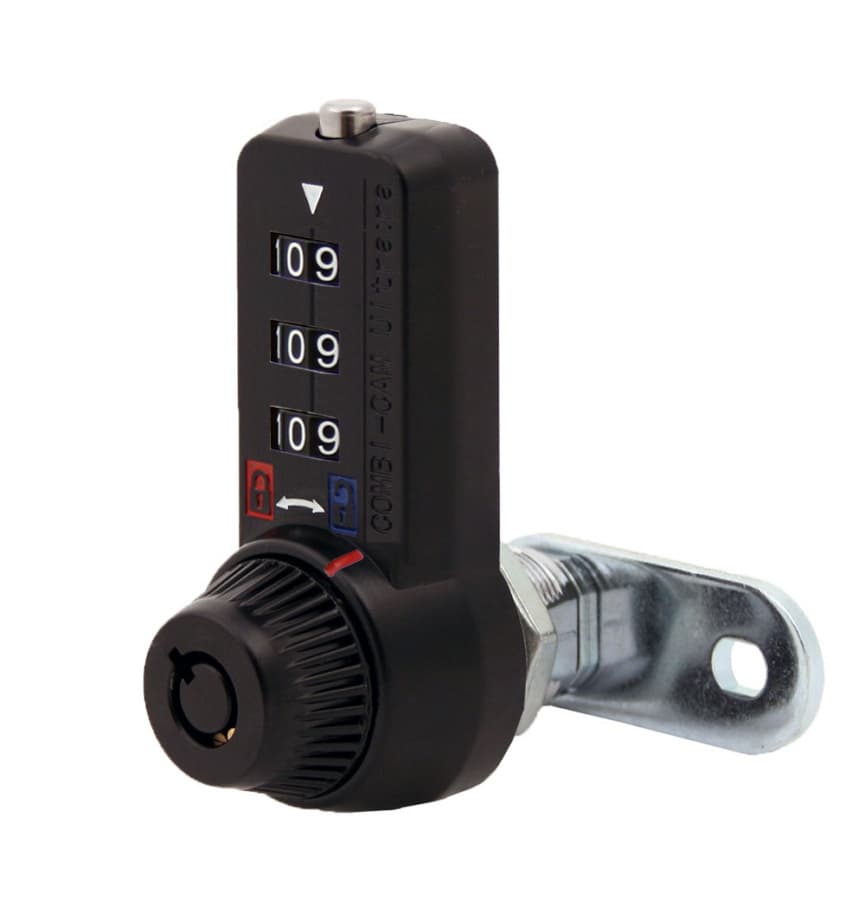

Olympus Lock offset cam gives you a 1/4 inch set back on a Combi-Cam Ultra 3-dial rectangular combination cam or locker lock, which positions the cam properly on the latch side so doors or drawers engage securely. The 1-1/2 inch cam length works with Combi-Cam Ultra bodies, so installers can match the reach of the cam to the lock housing and strike location. This offset version is designed for locker-style applications using the Combi-Cam Ultra system, so it suits school, fitness, or workplace lockers that need coded access. The cam is part of a magnetic key and keyless style lock family, which supports combination-based operation where keyed access is not wanted as the primary use pattern. The offset geometry helps align the cam with the frame, which reduces rework caused by misaligned latching surfaces.

Key Olympus Lock 30026D Details That Matter

• The 1/4 inch set back design shifts the cam toward the lock body, which helps the installer match the cam throw to locker door or drawer fronts where the latch sits closer to the panel edge.
• The 1-1/2 inch overall cam length provides extended reach from the lock spindle, which helps span typical locker or cabinet face thicknesses to contact keeper hardware reliably.
• Combi-Cam Ultra 3-dial configuration uses three rotating dials for code setting, which gives users numeric control of access without separate keys in day-to-day operation.
• Key override and code retrieval capabilities allow the Combi-Cam Ultra system to be opened or reset with override keys, which helps facility managers handle forgotten combinations efficiently.
• Vertical mounting for doors or horizontal mounting for drawers lets one lock body handle both orientations, which simplifies standardization across mixed locker or casework layouts.
• Durable all-metal construction supports the cam and lock body, which helps the assembly handle frequent opening cycles in locker environments without deforming under normal loads.
• Up to 1,000 possible combinations on the Combi-Cam Ultra provide a broad range of codes, which supports user separation in multi-user locker banks without repeating many codes.
• Pick resistant dials are designed to resist manipulation of the combination, which helps keep unauthorized users from decoding the lock by feeling dial positions.

Offset Cam Fit, Mounting, And Lock Orientation

The Olympus Lock 30026D 1/4 inch set back offset cam is sized for Combi-Cam Ultra combination cam or locker locks, so it locates correctly on the lock spindle and follows the intended throw arc. The 1-1/2 inch length interacts with the lock body to reach keeper hardware, so installers can align the strike on locker frames or cabinet sides to that path. Because the Combi-Cam Ultra can be mounted vertically on doors, the cam will swing across the door edge to catch a frame or jamb. When the same lock is mounted horizontally on drawers, the cam travels under or behind the drawer front to engage a fixed catch, which supports consistent latching across different casework layouts.

Using The Olympus Offset Cam In Real Projects

Where This Rectangular Cam Lock Works Best

The Olympus Lock, Inc. 1/4 inch set back offset cam is tailored for locker applications using the Combi-Cam Ultra 3-dial rectangular combination cam or locker lock, so it fits projects where users need coded access to personal storage. In door-mounted lockers, the vertical mounting option on the Combi-Cam Ultra positions this offset cam to sweep behind the door edge, so it can connect with a frame-mounted keeper in a predictable arc. In drawer-based storage, the horizontal mounting option lets the same cam travel parallel to the drawer front, so it can hook or stop against a fixed component inside the cabinet. Because this cam belongs to the magnetic key and keyless lock product class, it matches systems that emphasize combination control rather than standard keyed cylinders.

Why This Cam Design Supports Consistent Results

The specified 1/4 inch set back offset and 1-1/2 inch cam length work together with the Combi-Cam Ultra body, so the locking throw follows a known path that installers can layout on doors and drawers. The all-metal construction adds rigidity to that movement, so the cam maintains its shape relative to the lock spindle under repeated opening and closing cycles. With up to 1,000 possible combinations on the 3-dial Combi-Cam Ultra, each installed cam and lock pair can serve many users with distinct codes, which is useful in banks of lockers or shared storage. Pick resistant dials on the Combi-Cam Ultra make manipulation of the code more difficult, so the cam is less likely to be turned by someone guessing or feeling for positions. When facility managers use the key override and code retrieval capabilities, they can reset combinations while keeping the same cam and lock assembly in place, which supports long-term use without swapping hardware.

Common Questions About Olympus Lock 30026D Use

Select This Offset Cam For Combi-Cam Ultra Jobs

The Olympus Lock, Inc. 30026D 1/4 inch set back, 1-1/2 inch offset cam is specified for Combi-Cam Ultra 3-dial rectangular combination cam and locker locks, so it fits directly into that locking system. For locker, cabinet, or drawer projects that rely on magnetic key and keyless combination control, this cam provides the offset geometry and reach those locks expect. Order the 30026D through Wurth Baer Supply to match Combi-Cam Ultra installations where a dedicated offset cam is required.
