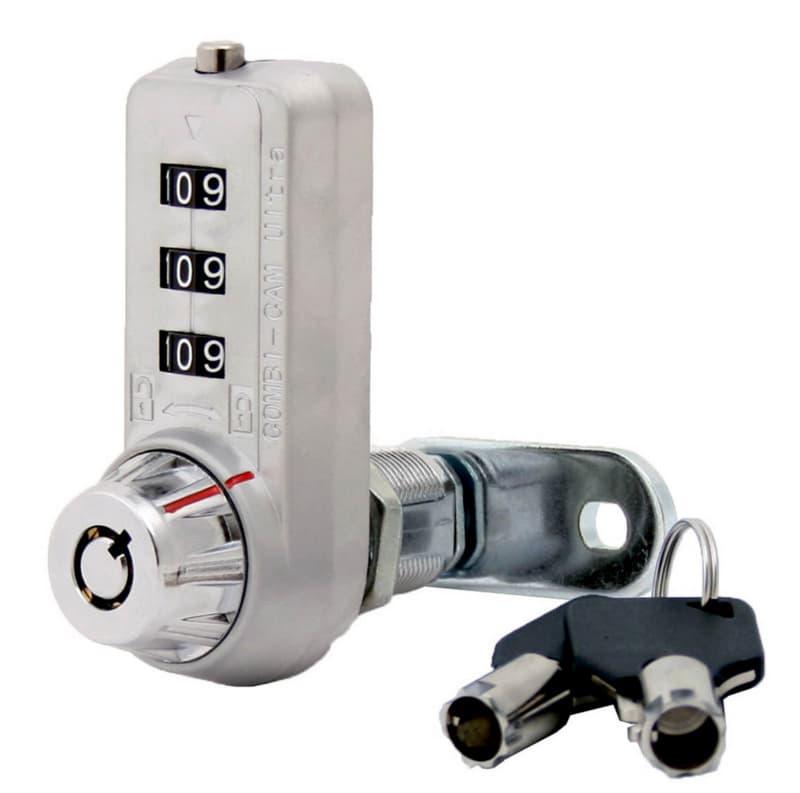

Olympus Lock, Inc Offset Cam 1/8" Thickness - 30595D

Olympus Lock Offset Cam For Combi-Cam Ultra

Olympus Lock offset cam is a 1/8 inch thick, 1-1/4 inch long cam with 1/2 inch offset that works as the driving arm on the Combi-Cam Ultra 3-dial combination cam or locker lock, so the lock can secure doors or drawers in practical locker layouts. This offset geometry positions the cam properly behind a strike when the lock body is mounted, which helps the lock throw engage reliably without reworking panel layouts. The part is classified under magnetic key and keyless locks and works within that cam lock system, so it fits keyless locker installations using this series. The cam is produced by Olympus Lock, Inc., so its dimensions match the 30595D specification for repeatable replacements across similar jobs.

Key Cam Details That Support Locker Work

• The 1/8 inch cam thickness provides a defined bearing surface for the Combi-Cam Ultra mechanism, helping the lock tongue move smoothly against strikes in locker and cabinet projects.
• The 1-1/4 inch length gives the cam enough reach from the lock spindle to the strike area, which helps span typical door and frame layouts without altering standard cutouts.
• The 1/2 inch offset shapes the cam throw relative to the lock face, positioning the contact point to line up with strikes in offset door and drawer designs.
• The offset cam configuration is designed for the Combi-Cam Ultra 3-dial rectangular combination cam or locker lock, so it works as the moving latch element within that keyed-override combination system.
• The cam is identified as Olympus Lock, Inc. part 30595D, tying the geometry to a defined part number so installers can duplicate successful layouts and order matching pieces for future projects.

Mounting The Olympus Offset Cam In Lockers

The Olympus Lock, Inc. 30595D offset cam is specified for use with the Combi-Cam Ultra rectangular combination cam or locker lock, which can be mounted vertically for doors or horizontally for drawers, so the same cam geometry can serve multiple orientations. When the lock body is mounted as designed, the 1/2 inch offset steps the cam out from the spindle centerline, helping it sweep across the strike zone in either mounting position. The 1/8 inch thickness and 1-1/4 inch length cooperate with the Combi-Cam Ultra mechanism, so the dial action can retract and project the cam along a controlled arc that suits standard locker door and drawer layouts.

Using This Offset Cam In Keyless Locker Setups

Where The Olympus Lock 30595D Cam Fits

The Olympus Lock, Inc. 30595D cam is described as ideal for locker applications when paired with the Combi-Cam Ultra 3-dial rectangular combination cam or locker lock, so it suits projects where users operate lockers without traditional keys. In these installations the Combi-Cam Ultra functions as the locking head, and this offset cam acts as the latch arm that captures a frame or strike, turning user dial input into a mechanical hold on the door or drawer. Because the lock can be mounted vertically for doors or horizontally for drawers, the same cam can work across banked lockers, mixed door-and-drawer storage, or cabinet-style compartments that share this keyless system. The category classification under magnetic key and keyless locks positions this cam within a system built specifically for keyless operation, which is useful wherever combination access helps manage shared storage in woodworking shops, commercial lockers, or similar installations using this lock family.

Why Combi-Cam Ultra Details Matter In Use

The Combi-Cam Ultra 3-dial rectangular combination cam or locker lock that uses this Olympus offset cam provides up to 1,000 possible combinations, and the cam translates each authorized opening into a consistent throw distance, helping doors and drawers release in a predictable way across multiple units. The lock features key override and code retrieval capabilities, with override keys sold separately, and the cam is the part that physically responds when those override functions are used, so staff access can mechanically retract the cam without changing how the door hardware lines up. The lock assembly is specified as durable, all-metal construction, and this matching metal cam supports that design by carrying the locking load at the door edge. The dials are described as pick resistant, and when the combination aligns correctly the mechanism turns this offset cam through its arc, so resistance at the dial side pairs with a precise cam action at the strike for dependable locker operation.

Common Questions About Olympus Locker Cam Use

Selecting This Offset Cam For Locker Projects

The Olympus Lock, Inc. 30595D offset cam pairs directly with the Combi-Cam Ultra 3-dial rectangular combination cam or locker lock, so choosing this part lets installers match 1/8 inch thickness, 1-1/4 inch length, and 1/2 inch offset to known locker layouts. That combination of dimensions and offset supports vertical door and horizontal drawer mounting with the same lock body, helping standardize hardware in keyless locker runs. For projects using this magnetic key and keyless lock family from Olympus Lock, Inc., this cam gives a defined way to translate dial or key override operation into secure, repeatable cam engagement.
