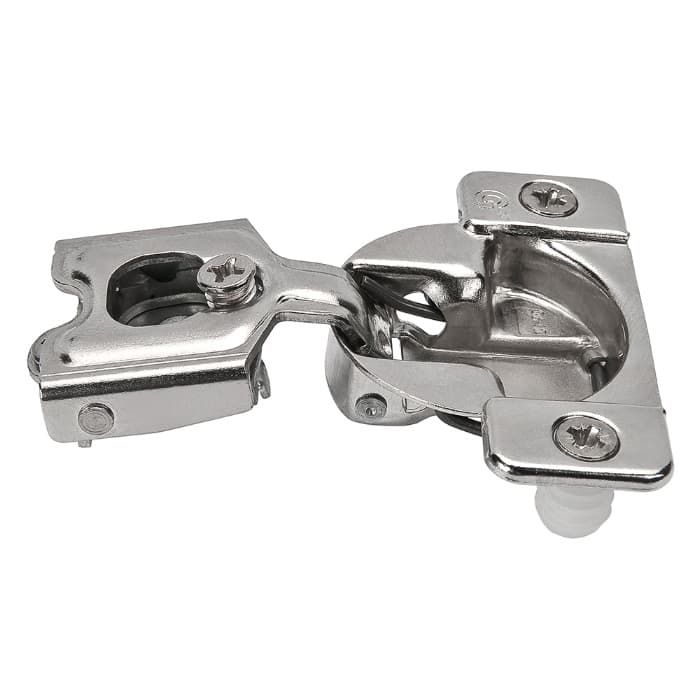

Grass TEC 864 hinge is a concealed cabinet hinge that provides a 1 inch overlay on face-frame cabinets, so doors cover the frame consistently on jobs built to that overlay spec. This TEC 864 self-close 1 inch overlay face-frame hinge in nickel finish keeps the hardware out of sight while delivering a clean cabinet look on finished installs. The TEC 864 series hinge line is made in the USA and is engineered to exceed industry standards for load rating, opening and closing cycles, which supports long service life in cabinets that see frequent use. All TEC 864 hinges feature a solid metal cup, giving the hinge a sturdy seating in the door. All moving mechanism parts have all-steel construction, so the working components stay stable under repeated opening and closing.
TEC 864 hinges have two cabinet mounting options, side mount and wraparound mount, so the same hinge series can be used across different face-frame cabinet runs. The wraparound mount style mounts on 3/4 inch thick face frames by positively locating the hinge base on the face frame, which helps repeat hinge placement from cabinet to cabinet. The 108 degree hinge has three dimensional adjustment: cam side adjustment plus or minus 1.5 mm, cam depth adjustment 2.5 mm out and 0.5 mm in, and slotted screw hole height adjustment plus or minus 2 mm. These adjustments allow the installed door to be shifted horizontally, in and out, and up or down within these ranges, so reveals and alignment can be fine-tuned after the hinge is installed on the cabinet.
This Grass TEC 864 self-close 1 inch overlay face-frame hinge in nickel is intended for concealed cabinet hinge applications on face-frame cabinets built with a 1 inch overlay layout. The hinge belongs to the TEC 864 Series hinge line, so it shares that familys design intent for concealed face-frame installations. TEC 864 hinges are in the concealed cabinet hinges class and are part of the concealed face frame hinges category, placing this model among hardware used where front hardware visibility is minimized. TEC 864 hinges are designed to work with doors up to 3/4 inch thick, matching many standard cabinet door builds used in kitchens, baths, and similar projects. TEC hinges have a shallow 10.5 mm cup, allowing use on a range of profiled door edges without deep boring that might weaken thinner door sections around the mortise.
The 108 degree hinge has three dimensional adjustment, combining cam side, cam depth, and slotted screw hole height movement so installers can dial in precise door positioning after the cups and mounts are fixed. The cam side adjustment of plus or minus 1.5 mm lets the door be moved left or right within that range, which helps equalize reveals between adjacent doors. The cam depth adjustment of 2.5 mm out and 0.5 mm in changes how tightly the door sits toward the face frame, which is useful when aligning doors flush with surrounding surfaces. The slotted screw hole height adjustment of plus or minus 2 mm shifts the door up or down slightly, allowing margins at top and bottom rails to be brought into line. TEC 864 hinges have side mount and wraparound mount options, so installers can choose a cabinet mounting style that fits the specific face-frame construction. The wraparound mount style mounts on 3/4 inch thick face frames by positively locating the hinge base on the face frame, helping maintain consistent hinge setback without separate layout jigs. This model uses a screw-on design at the cabinet door cup fastening interface, suited to jobs that rely on mechanical fastening rather than pre-dowelled attachment. Available boring patterns of 42 mm and 45 mm allow door preparation to match common drilling setups used with concealed hinge boring equipment.
The Grass TEC 864 self-close 1 inch overlay face-frame hinge is for concealed cabinet hinge applications on face-frame cabinets built around a 1 inch overlay layout.
The 108 degree TEC 864 hinge opens to approximately 108 degrees, which provides wide access to the cabinet interior and working room for adjustments at the hinge.
The TEC 864 hinge is designed to work with doors up to 3/4 inch thick, aligning with many standard cabinet door thicknesses used in residential and commercial projects.
The 108 degree TEC 864 hinge has cam side, cam depth, and slotted screw hole height adjustments, so the mounted door can be shifted in three directions within the stated millimeter ranges.
TEC 864 hinges have side mount and wraparound mount options, giving flexibility to match the hinge mounting method to the cabinet face-frame construction.
The TEC hinge shallow 10.5 mm cup reduces boring depth, which supports use on many profiled door edges without removing excess material from the door.
The Grass TEC 864 self-close 1 inch overlay face-frame hinge in nickel brings concealed cabinet hinge performance to 1 inch overlay face-frame layouts. The TEC 864 series hinge line is made in the USA and engineered to exceed industry standards for load rating, opening and closing cycles, supporting long-running cabinet installations. All TEC 864 hinges feature a solid metal cup and all-steel moving mechanism parts, giving the hinge a robust structure around the working components. For projects using 3/4 inch thick face frames and doors up to 3/4 inch thick, this 108 degree TEC 864 hinge offers three dimensional adjustment and flexible mounting options to align doors cleanly across the run.
Sold In: 1 Each
