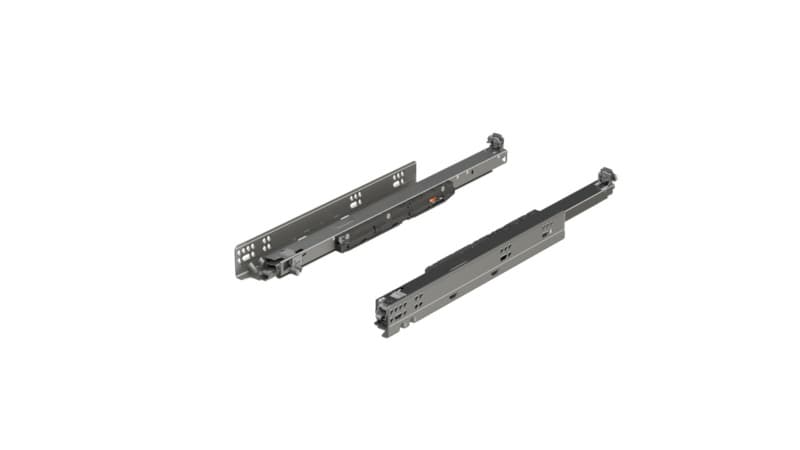

Blum MOVENTO 21" Soft-Close Blumotion Full Extension Undermount Drawer Slides, Roller Bearing Zinc - 7695330S

Blum MOVENTO 21 Inch Undermount Drawer Slides

Blum MOVENTO 21 inch undermount drawer slides provide a full extension concealed runner system, so drawers travel completely out of the cabinet and keep hardware hidden where a clean look matters on finished jobs. The synchronized MOVENTO smooth running action keeps movement consistent along the entire stroke, which helps keep face gaps tight and reduces the chance of drawers racking under load. BLUMOTION soft-closing is built into the runners, so drawers slow down and close softly, which helps protect fronts and minimizes slamming in busy workspaces or homes. These runners are designed for frameless or blocked-out face frame cabinets, so they fit common cabinet construction methods without changing your box build approach. They are specified for use with 1/2 inch (13 mm) or 5/8 inch (16 mm) drawer thickness, giving a clear range when planning side clearances and material choice on new or replacement projects.

Key MOVENTO Features That Support Cabinet Work

• The full extension concealed runner system lets the entire drawer box clear the cabinet, which improves access to stored items and simplifies adjustments at the back of the drawer during installation.
• Synchronized MOVENTO smooth running action stabilizes the drawer through the slide travel, which supports precise reveals and helps maintain alignment when drawers are loaded in daily use.
• BLUMOTION soft-closing is integrated into the slides, which slows the drawer near closing and helps reduce impact on fronts, joints, and cabinet cases over repeated use.
• Four dimensional adjustment is built into the system, which provides installer control over height, side-to-side, depth, and tilt settings to fine tune gaps and front alignment after the drawer is hung.
• Elongated holes for depth adjustment on the runners allow front-to-back tweaking at the cabinet, which helps dial in overlay and flush conditions without remaking drawer boxes.
• Bottom mount holes are provided in the runners, which support secure mounting beneath the drawer and keep the hardware out of sight when the drawer is open.

Installation Details For 21 Inch Undermount Slides

This MOVENTO heavy duty slide is specified as a 21 inch runner, so it suits drawer depths planned around that nominal length in frameless or blocked-out face frame cabinets. For drawer box construction, the system is designed for use with 1/2 inch (13 mm) or 5/8 inch (16 mm) material, which defines the side thickness window when laying out your parts and clearances. Bottom mount holes are incorporated into the runner, allowing fastening from underneath the drawer to keep sides clean. Elongated holes for depth adjustment at the cabinet connection give front-to-back play, which is useful when aligning fronts across a bank of drawers or matching adjacent doors. The MOVENTO system provides four dimensional adjustment, so final fine-tuning can be done after installation rather than relying solely on box accuracy.

Movento Slides In Real Cabinet Installations

Where These Heavy Duty Slides Are Applied

This Blum MOVENTO heavy duty runner system is categorized as an undermount drawer slide, so it supports drawer boxes from below and keeps hardware concealed for a clean interior and exterior appearance. The system is intended for frameless or blocked-out face frame cabinets, so it fits typical shop-built European style boxes and American face frame cabinets when the frame is blocked out at the sides. The runners offer full extension, so they work well in base cabinets, tall units, or utility drawers where reaching items at the rear is important. The 21 inch length aligns with common cabinet depths, which helps integrate these runners into standard casework without redesigning carcass dimensions around the hardware.

Why Load Ratings And Adjustments Matter On Site

This MOVENTO slide line is described as heavy duty, with specified 155 lb dynamic and 170 lb static load capacity for heavy duty runners, so it can support demanding drawer applications where contents may be substantial. Standard duty runners in the same family carry 110 lb dynamic and 125 lb static load capacity, which defines a lighter-duty option when extreme loads are not expected. Having these defined load capacities helps match runners to the expected drawer contents, especially in shop, pantry, or office installations. The built-in four dimensional adjustment allows height, side, depth, and tilt tuning at the runner interface, which helps installers correct small case or drawer variances without reshaping parts. Elongated holes for depth adjustment add front-to-back flexibility, supporting consistent front reveals across multiple openings. The BLUMOTION soft-closing function slows the final travel, which reduces stress on fasteners and joints during repeated closing cycles. This runner system is also designed to be used with the TIP-ON BLUMOTION touch-to-open system, so it can support push-to-open soft-close applications where a handle-free front design is desired and consistent function is needed across many drawers.

Common Questions About Blum MOVENTO 21 Inch Slides

Select Blum MOVENTO Slides For Demanding Drawers

The Blum MOVENTO 21 inch soft-close full extension undermount drawer slides combine concealed runners, synchronized smooth running action, and BLUMOTION soft-closing, so they support clean designs and controlled movement in frameless or blocked-out face frame cabinets. Defined use with 1/2 inch or 5/8 inch drawer thickness, bottom mount holes, and elongated depth adjustment slots help streamline layout and on-site tuning. With specified standard and heavy duty load capacities and compatibility with the TIP-ON BLUMOTION touch-to-open system, this MOVENTO runner system gives cabinet shops and serious installers a precise hardware option for projects that demand smooth action and dependable performance.
