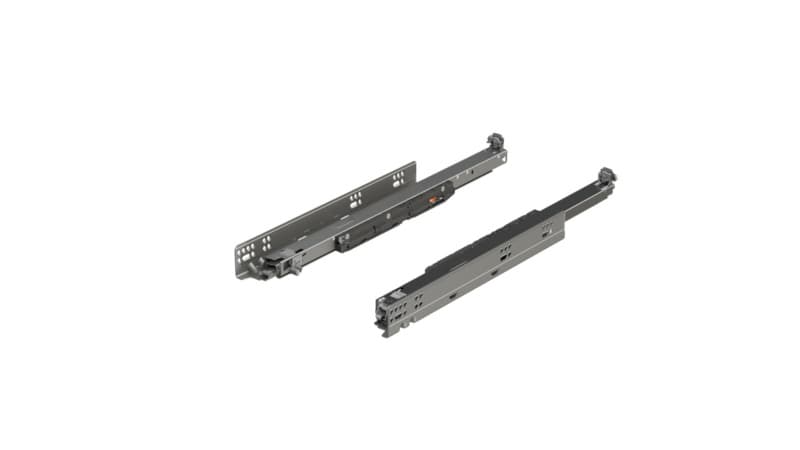

Blum MOVENTO 24" Soft-Close Blumotion Full Extension Undermount Drawer Slides, Roller Bearing Zinc - 7696100S

Blum MOVENTO 24 Inch Undermount Drawer Slides

Blum MOVENTO 24 inch undermount drawer slides are a full extension concealed runner system that lets drawers travel their full length, so stored items remain accessible from front to back. The synchronized MOVENTO smooth running action keeps motion consistent along the slide, which helps drawers feel controlled even when loaded. BLUMOTION soft-closing is built in, so drawers slow and close gently, reducing slamming noise in daily use. These slides are designed as an undermount drawer slide system, keeping hardware hidden under the drawer for a clean cabinet interior. They are part of Blum undermount drawer slides, which are widely used in cabinetry where concealed hardware and consistent motion are priorities. The runners are zinc finished, which provides a hard-wearing surface on the slide components for long-term use. This model is identified as 7696100S, supporting ordering and field reference.

Key MOVENTO Runner Details For Cabinet Projects

• The new and advanced full extension concealed runner system lets drawers open fully while staying hidden under the box, helping maintain a clean cabinet look while preserving access to stored items.
• Synchronized MOVENTO smooth running action keeps both sides of the runner moving together, which supports even motion and helps reduce racking when drawers are opened or closed from one side.
• BLUMOTION soft-closing is integrated into the slide, so drawers slow down before closing, which reduces impact on the cabinet front and can help components experience less day-to-day stress.
• The runners work in frameless or blocked-out face frame cabinets, allowing the same slide family to be used across different cabinet constructions for consistent performance through a project.
• Four dimensional adjustment at the runner provides multiple planes of fine tuning, which helps installers dial in front gaps and reveals without rebuilding a drawer box.
• Bottom mount holes are provided, giving a defined mounting pattern on the cabinet side that supports repeatable installation layouts across multiple cabinet units.

Installation And Load Details For These Slides

The MOVENTO 24 inch runners are designed for use with 1/2 inch (13 mm) or 5/8 inch (16 mm) drawer thickness, so drawer box construction can follow these standard material sizes. Elongated holes for depth adjustment in the runner allow the drawer to be shifted front-to-back, helping align drawer fronts with adjacent fronts after the slides are mounted. Bottom mount holes on the runner give a clear fastening pattern at the cabinet, supporting consistent spacing and alignment from cabinet to cabinet. Standard duty runners in this family support 110 lb dynamic and 125 lb static load capacity, giving drawers enough rating for many day-to-day storage tasks. Heavy duty runners offer 155 lb dynamic and 170 lb static load capacity, so drawers built on that version can handle higher stored loads while staying within the slide design range.

Using MOVENTO Slides In Real Cabinet Builds

Where These 24 Inch MOVENTO Slides Fit Best

The Blum MOVENTO 24 inch full extension undermount drawer slides fall under the product class of undermount drawer slides, so they are suited to applications where the hardware is concealed under the drawer. The runners are intended for frameless or blocked-out face frame cabinets, so they can be used both in frameless box systems and in face frame layouts where a block-out brings the mounting surface flush. Their design for 1/2 inch or 5/8 inch drawer thickness supports common plywood and solid material sizes found in shop work. As full extension slides, they position the drawer fully out of the cabinet opening, which is helpful in deeper base cabinets where the rear of the drawer would otherwise be hard to reach. The synchronized MOVENTO running action supports smooth motion even when the drawer is pulled from one side in everyday use.

Why These Adjustment And Load Details Matter

The four dimensional adjustment feature built into these MOVENTO slides allows fine tuning in multiple directions at the runner, which lets installers correct for slight variances in cabinet or drawer construction without rebuilding components. Elongated holes for depth adjustment give direct control over how far the drawer front sits relative to the cabinet face, helping line up fronts across banks of drawers. Bottom mount holes provide a defined screw layout, supporting jigs or repeatable drilling patterns in production and helping installers maintain consistent slide placement. The available 110 lb dynamic and 125 lb static load capacity for standard duty runners lets these slides carry typical drawer contents within the rated range during motion and at rest. For heavier applications, the 155 lb dynamic and 170 lb static load capacity on heavy duty runners supports higher loads while operating on the same MOVENTO system geometry.

Common Questions About Blum MOVENTO 24 Inch Slides

Select Blum MOVENTO Slides For Your Next Build

The Blum MOVENTO 24 inch soft-close BLUMOTION undermount drawer slides combine a full extension concealed runner system with synchronized MOVENTO smooth running action, so motion stays controlled across the drawer travel. Their four dimensional adjustment and elongated holes for depth adjustment give room to fine tune fronts after mounting. Load capacities from 110 lb dynamic to 170 lb static across standard and heavy duty runners support a range of storage demands. When a project calls for undermount drawer slides in frameless or blocked-out face frame cabinets, this MOVENTO 7696100S runner provides a defined option with clear thickness and load guidelines.
