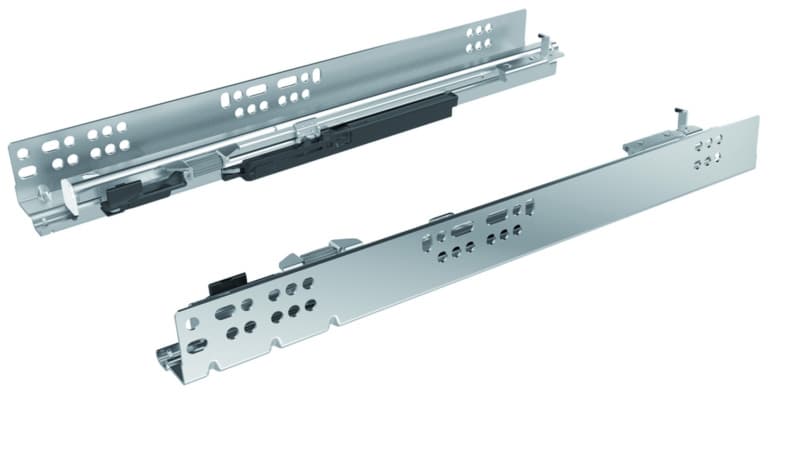

Hettich Quadro V6 24" Soft-Close Full Extension Undermount Drawer Slides, Ball Bearing Right hand Zinc - 9262853

Hettich Quadro V6 Undermount Slide For 24 Inch Drawers

Hettich Quadro V6 undermount drawer slide gives a 24 inch drawer a full extension soft-close action using an integrated damping system, so the drawer runs to the front with controlled, quiet closing that suits finished kitchen or shop cabinetry. The right hand design with ball bearing guidance supports smooth travel on the active side of the drawer, which helps the drawer track accurately under typical cabinet loads. As an undermount slide, the hardware stays hidden under the drawer box, keeping the cabinet interior visually clean while still carrying the rated load. The slide on installation method lets the drawer box engage the slide from above, so the drawer box can be set in place after the cabinet is set. This model is identified as Hettich America Corporation part 9262853, which ties directly to the Quadro V6 system and its matching front fixing components.

Key Drawer Slide Details That Support Daily Use

• The full extension action lets the drawer travel fully out to the rated length, so the full depth of the drawer can be accessed from above, simplifying loading and unloading near the back.
• The integrated damping system Silent System slows the final travel of the drawer, so the front closes gently against the cabinet, reducing impact on drawer fronts and hardware over repeated use.
• The slide design supports a load capacity up to 90 lbs dynamic and 100 lbs static on a 21 inch slide length as per ANSI/BHMA 156.9 grade 1, so the system is engineered around demanding drawer loads.
• The slide is made from galvanized steel, so the running components have a corrosion-resistant base material that fits typical kitchen, bath, and shop interior environments.
• The Quadro V6 construction uses ball bearing guidance inside the undermount slide, so the drawer movement stays consistent along its travel path, which supports precise front alignment work.

Undermount Slide Fit, 4D Adjustment, And Drawer Build

This Quadro V6 undermount drawer slide is designed for drawer sides up to 5/8 inch or 16 mm thickness, so drawer box construction can follow that side dimension when sizing the components. The slide works in both face frame and frameless cabinet applications, so the same running gear can be applied across different cabinet constructions within one project. The design works with 4D front fixing clips and tilt adjustment, so the drawer front can be positioned in height, side, depth, and tilt relative to the cabinet opening. Tool-less, intuitive height adjustment up to plus 2 mm, side adjustment from plus or minus 1.5 mm, and depth adjustment from plus or minus 2 mm allow the installer to fine-tune the front reveal without separate tools at those interfaces.

Using The Hettich 9262853 Slide In Cabinet Projects

Where This Quadro V6 Undermount Slide Fits Best

The Hettich Quadro V6 undermount drawer slide is used where a 24 inch drawer length is needed with a concealed runner under the drawer, so the cabinet interior shows the drawer box rather than side-mounted hardware. Because the slide is suitable for both face frame and frameless applications, it can be planned into kitchen, bath, or shop cabinetry that mixes construction styles but uses the same running system. The design supports drawers with side thickness up to 5/8 inch or 16 mm, so standard plywood or board thicknesses in that range align with the slide geometry. The right hand designation defines this component as the active side of the pair, which keeps the motion control and damping on a known side for consistent assembly.

Adjustment Features That Support Repeatable Drawer Alignment

The Quadro V6 slide uses 4D front fixing clips and tilt adjustment, which allows the drawer front to be set in four directions so reveals can be matched from opening to opening. Tool-less, intuitive height adjustment up to plus 2 mm means the drawer front can be shifted upward within that range, helping line the top edge of the drawer with neighboring fronts. Side adjustment up to plus or minus 1.5 mm allows the front gap to be balanced left to right, which is useful when cabinet openings vary slightly from nominal size. Depth adjustment up to plus or minus 2 mm lets the front be set flush with the cabinet face or door plane, so the nose of the drawer matches the surrounding run. Tilt adjustment allows the top and bottom of the front to be leveled visually relative to the cabinet, which helps when the cabinet or floor is slightly out of plane.

Common Questions About This Hettich Undermount Slide

Choose This Slide For Precise Soft-Close Drawer Action

The Hettich Quadro V6 undermount drawer slide with integrated Silent System damping, 4D front adjustment, and capacity verified to ANSI/BHMA 156.9 grade 1 offers a defined solution for 24 inch drawers built with 16 mm sides. For projects using face frame or frameless cabinets that call for full extension soft-close undermount motion, this Hettich America Corporation part 9262853 provides a consistent running and alignment platform. Select this slide when a concealed runner, controlled closing, and fine front adjustment contribute directly to the finished cabinet result.
