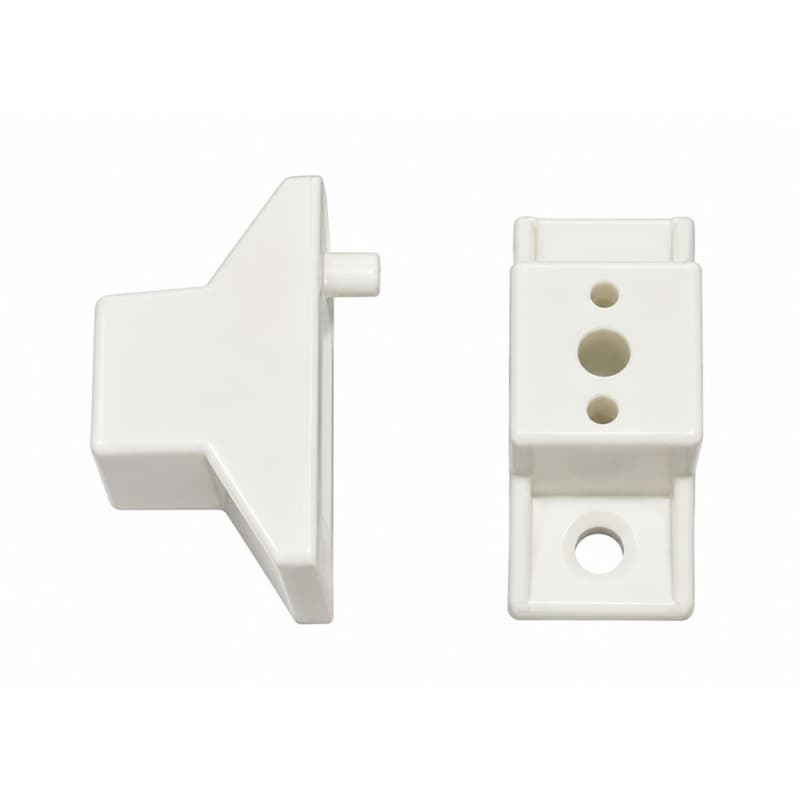

Drawer Slide Spacers Heavy-Duty Nylon Brackets, Rectangular 1", White

Drawer Slide Spacers For Face Frame Clearance

Drawer slide spacers are rectangular 1 inch heavy-duty nylon brackets in white from Bainbridge Manufacturing, built to position drawer slides so they clear face frames. The 1 inch depth creates a consistent stand-off point from the cabinet side, which helps align slides in face frame cabinets. The white color ties in with light cabinet interiors, which keeps installations looking uniform. Each spacer is made from heavy-duty nylon, which provides a stable support surface for the drawer slide. These spacers work with any drawer slides, so one part number can serve multiple slide lines on the same job. As part of Wurth Baer Supply's drawer slide accessories offering, this spacer is suited to cabinet and drawer projects that need reliable slide offset.

Key Spacer Details That Support Slide Setup

• The spacer has a 1 inch depth, which sets slide hardware away from the cabinet wall to line up with face frames and keep drawer boxes running square.
• The rectangular shape gives a flat bearing surface, which helps the slide sit solidly against the spacer and reduces twist during fastening.
• Construction in heavy-duty nylon provides a firm yet forgiving interface between slide and cabinet, which helps maintain alignment under typical drawer use.
• The white color works with white cabinet interiors, which keeps the spacer visually unobtrusive once the drawer is installed.
• The design is for use with any drawer slides, meaning one style of spacer can standardize installations across different slide types on the same project.
• Cabinet mounting holes on 32 mm centers align with 32 mm system drilling, which speeds marking and drilling layouts in production or shop environments.
• One center euro screw connection point for the drawer slide gives a defined mounting reference, keeping the slide correctly located on the spacer.

Spacer Mounting Layout For Drawer Slides

This Bainbridge Manufacturing spacer uses two cabinet mounting holes spaced 32 mm apart, which lines up with 32 mm system cabinet drilling for quick installation. The fixed spacing supports repeatable placement up and down a cabinet run. A single center euro screw point ties the drawer slide to the spacer, so the slide locks directly to the spacer rather than relying only on side pressure. Used with any drawer slides, the spacer sits between cabinet side and slide, setting a 1 inch gap that matches the face frame projection. The white, heavy-duty nylon body supports this gap while keeping the interior appearance clean.

How This Spacer Works In Drawer Projects

Using The Spacer In Face Frame Cabinets

This drawer slide spacer is used in cabinet work when drawer slides need to clear face frames. The 1 inch depth matches that offset, so installers can bridge from the cabinet side to the back of the face frame plane using the same part every time. Because it is rectangular heavy-duty nylon, the spacer presents a stable, flat mounting surface for the slide, which supports smooth drawer action once installed. The two cabinet mounting holes on 32 mm centers integrate into a 32 mm cabinet drilling pattern, letting shop or field work align to familiar system lines. In practice, the spacer sits between cabinet side and drawer slide, correcting the setback created by the frame without altering the cabinet box.

Details That Help Repeatable Slide Alignment

The combination of 1 inch depth, rectangular shape, and heavy-duty nylon construction supports consistent slide alignment from cabinet to cabinet. The predefined 32 mm cabinet mounting holes reduce layout time, because installers follow the system spacing rather than marking custom positions for every spacer. A single center euro screw location for the drawer slide provides a clear registration point, which helps keep the slide straight relative to the spacer throughout fastening. Using one spacer style with any drawer slides allows shops to standardize their face frame clearance method while working across different slide models. The white finish keeps the spacer visually low-profile inside typical light-colored cabinet interiors, supporting clean finished appearances around open drawers.

Common Questions About Bainbridge 3602WH-52 Spacer

Select This Spacer For Face Frame Slide Runs

The Bainbridge Manufacturing 3602WH-52 drawer slide spacer provides a 1 inch heavy-duty nylon bracket in white for setting slides out to face frame depth. With cabinet mounting holes at 32 mm spacing and a center euro screw point for the slide, it fits naturally into 32 mm cabinet construction methods. For cabinetmakers and installers planning drawer runs that need consistent face frame clearance, this spacer gives a single, repeatable part that aligns with Wurth Baer Supply's broad line of drawer slide accessories.
