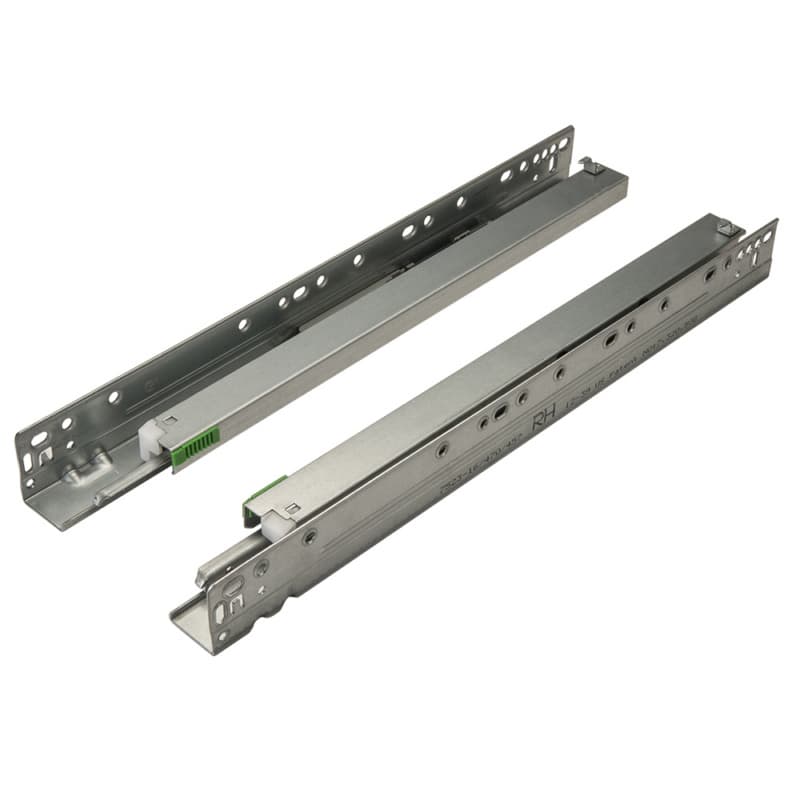

Salice Futura undermount drawer slides use precision Delrin 100 bearings to deliver perfectly silent motion, which keeps drawer operation smooth in everyday cabinet use. The 18 inch soft-close full extension design lets the drawer travel its full length, so stored items remain accessible from the front without overextending the cabinet. These slides are part of the Futura Series undermount line, so they stay hidden beneath the drawer, leaving the cabinet interior visually clean while still supporting the load underneath. Made in Italy, the slides follow Salice America specifications for the A7555/457 CP6 model, giving installers a defined reference when matching to drawings or existing jobs. The zinc finish on the slides provides a consistent metal surface along the length of the runner, which supports predictable movement with the Delrin components during the slide stroke.
These Salice Futura 18 inch undermount drawer slides install with #6 flat head wood screws, so the slide rail seats properly into the cabinet while the screw heads sit flush in the countersunk holes. Depth adjustment is handled by slotted holes in the slide, which allow small front-to-back shifts during installation so the fitter can align the drawer front with the cabinet face. The front locking clips on this Futura model incorporate an easy-to-reach height adjustment lever with plus 2.5 mm range, giving vertical fine tuning at the front of the drawer after the box is mounted on the runners. With a 75 lb dynamic load capacity and 100 lb static load capacity, the slides support typical drawer contents while maintaining the specified soft-close motion and full extension stroke.
These Salice Futura undermount drawer slides are built as an 18 inch full extension configuration, so they suit drawer boxes designed around that nominal slide length in typical cabinet runs. The undermount format positions the hardware under the drawer, which keeps the drawer sides free for straight box construction while the runners manage guidance and soft-close function below. Compatibility with both 1/2 inch and 5/8 inch drawer side thickness means the same A7555/457 CP6 slide model can be used on different box thickness standards within one job, reducing variation in hardware selection while still meeting the side panel dimensions. The zinc slide finish interacts with the Delrin 100 bearings along the travel path, supporting consistent movement as the drawer is cycled under normal cabinet conditions.
The depth adjustment by slotted holes gives the installer front-to-back play during mounting, allowing the slide position to be shifted slightly so drawer fronts can line up with adjacent fronts along the cabinet face. Once the box is engaged on the runners, the front locking clips hold the drawer on the slides while still enabling service access when needed, which matters when aligning multiple drawers in stacked configurations. The height adjustment lever on the front locking clips provides plus 2.5 mm of vertical movement at the front, so a small tilt or height mismatch can be corrected without rebuilding the box. The soft-close full extension action works together with the 75 lb dynamic load rating, so drawers loaded up to that moving capacity travel their full stroke and close under control for everyday cabinet use.
The Salice A7555/457 CP6 are Futura Series 18 inch soft-close full extension undermount drawer slides, so they mount beneath the drawer and provide controlled closing.
These Futura undermount slides are compatible with either 1/2 inch or 5/8 inch drawer side thickness, which lets one slide model serve both common box constructions.
These Salice Futura slides have a 75 lb dynamic load capacity and a 100 lb static load capacity, so they support typical drawer contents within those ratings.
These slides use front locking clips with an easy-to-reach height adjustment lever providing plus 2.5 mm movement, allowing precise vertical alignment of the drawer front.
These Futura slides are built with precision Delrin 100 bearings, which guide the runner for perfectly silent motion during opening and closing cycles.
These Salice Futura undermount slides are installed with #6 flat head wood screws, which seat into the slide holes so the runners sit flush against cabinet members.
The Salice Futura 18 inch soft-close full extension undermount drawer slides, A7555/457 CP6, combine Delrin 100 bearings, zinc runners, and defined adjustment features for controlled motion and alignment. At Wurth Baer Supply, this Futura Series undermount model supports projects needing concealed slides that work with 1/2 inch or 5/8 inch drawer sides while carrying up to the stated dynamic and static load capacities.
Sold In: 1 Pair
Quantity | Unit Price | Catalog | ||||
|---|---|---|---|---|---|---|
Sold in: 1 Pair |  UBA750.010 Mfr# A750.010 | Futura Left/Right 6-Way Adjustable Locking Device Set | ||||
Sold in: 1 Pair |  UBA710.610 Mfr# A710.610 | Futura Left/Right Front Locking Device Set | ||||
Sold in: 1 Each |  UBAGSKXR5 Mfr# AGSKXR5 | Futura Narrow Rear Mounting Bracket, Metal | ||||
Sold in: 1 Each |  UBAGSKXX5 Mfr# AGSKXC5 | Futura Rear Mounting Bracket, Zinc-Plated |
