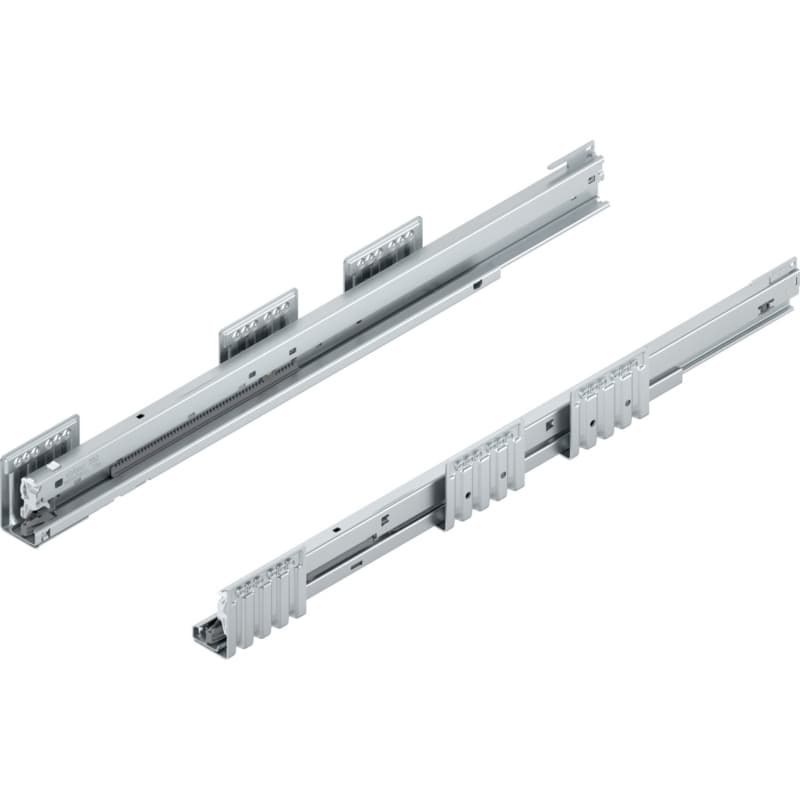

This is the 600mm (24 inch) cabinet profile set from Blum's MERIVOBOX metal drawer system, sold as a left-hand and right-hand pair with a 70 kg (154 lb) weight capacity, full-extension travel, and integrated soft-close. It forms the structural side assembly for a MERIVOBOX drawer at this nominal length.
At 600mm, this profile is the right choice when the cabinet is deep and the drawer needs to carry real weight. Pantry pull-outs stocked with canned goods, pot drawers in a production kitchen, deep tool drawers in a shop cabinet — these are the applications where shorter profiles and lower-rated systems fall short. Full extension means the entire drawer interior is accessible when the drawer is open, which matters most when the drawer is deep and contents sit toward the back. The integrated soft-close handles the return quietly regardless of how loaded the drawer is, which is the behavior a 70 kg rating demands in practice.
The cabinet profile is formed steel with a zinc-plated finish that holds up in the humid cycling a kitchen or utility room puts on drawer hardware. MERIVOBOX uses double-walled steel side construction, so the profile presents a clean inner face and a smooth outer wall while concealing the running hardware between the walls. The zinc finish coordinates with the MERIVOBOX system's standard interior language and pairs with the system's front fixings, back panels, and cover caps in the same finish family. Material and finish claims here trace to the listed product attributes; cleanability specifications are not stated in the source data.
Cabinet shops running a full MERIVOBOX kitchen specify the 600mm profile for base cabinets with a 24 inch depth or a full pantry column. Designers building handle-less kitchens rely on this length when the pull-out needs to clear a deep countertop overhang and still present the whole interior. Contractors retrofitting a deep utility or laundry cabinet get the capacity and travel distance this profile delivers without switching drawer systems. This cabinet profile set is a MERIVOBOX-specific component; it pairs with MERIVOBOX runners, front fixings, and back panels — not with components from other Blum drawer systems or other brands.
This is the cabinet profile set — the pair of steel members that mount in the cabinet and carry the drawer. You also need the MERIVOBOX drawer members (the sides that attach to the drawer box), the drawer back, a bottom panel cut to spec, and the front fixing brackets to complete a working drawer.
The soft-close is integrated into the profile and engages automatically on every close. There is no switch or setting to activate; the damper catches the drawer in the last portion of travel and brings it to a silent stop.
MERIVOBOX is engineered for frameless cabinet construction on the 32mm grid. For face-frame installations, check whether Blum's face-frame rear mounting hardware is available for this system before specifying — the source data does not confirm face-frame compatibility for this profile.
MERIVOBOX drawer members are designed to work with the system's own steel side profiles rather than a wood drawer box. Build the interior to Blum's published specification for this nominal length, including the bottom panel cutting formula and back panel dimensions.
A 600mm cabinet profile set rated at 70 kg with full extension and integrated soft-close removes the constraint on what a deep drawer can hold and how it behaves in use. Specify it where depth, capacity, and quiet operation all need to be answered at once.
Sold In: 6 Set
