Grass Nexis Pie-Cut Corner Hinges For Corner Doors

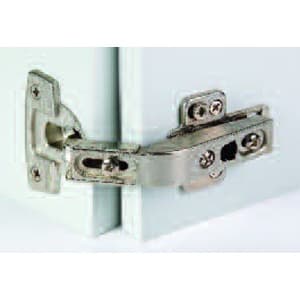

Grass Nexis pie-cut corner hinges give folding corner cabinet doors a concealed swing that keeps hardware out of sight while the doors operate. These concealed cabinet hinges are designed as Nexis pie-cut hinges for folding doors in corner cabinets, so they handle the specific geometry of that application. The self-closing function pulls doors shut at the end of travel, which helps doors sit consistently without extra adjustments after normal use. A shallow cup depth of 10.8 mm lets the hinge sit in thinner door profiles than deeper cup designs, helping on tighter door constructions. The hinge fits doors from 19 mm to 24 mm thick, covering a common thickness range in cabinet doors so one hinge model can suit multiple runs. Nexis hinges are designed to work with Grass Nexis mounting plates, keeping the system within the same engineered family for predictable alignment.

Key Nexis Hinge Details That Help On The Job

• Side-to-side adjustment of plus 2 mm to minus 2 mm lets the installer tune door reveals after mounting, which helps clean up small drilling or layout variances without re-boring.
• Height adjustment of plus 2 mm to minus 2 mm provides vertical tuning at the hinge, so doors can be lifted or dropped slightly to line up edges across a run of cabinets.
• Depth adjustment of plus 2 mm to minus 2 mm shifts the door in and out relative to the face, which helps set consistent overlays and reduce rubbing on adjacent parts.
• A boring pattern of 42 mm matches a defined drilling layout on the door, which supports repeatable CNC or jig-based boring for multiple doors in a project.
• The Nexis self-closing design brings the folding doors tightly against the cabinet when near closed, which helps doors stay shut and maintain a uniform corner line over time.

Face Frame Pie Cut Hinge Mounting And Cup Details

This Grass Nexis self-close overlay face-frame pie cut corner hinge uses a shallow 10.8 mm cup depth, so the cup bore does not need to be as deep as on some other concealed cabinet hinges and can help protect door face material. The hinge suits door thickness from 19 mm to 24 mm, allowing one drilling setup to cover that range instead of changing tooling for each thickness. Nexis hinges are designed to work with Grass Nexis mounting plates, giving a matched hinge and plate system that keeps mounting geometry consistent across installations. A boring pattern of 42 mm defines the distance between cup holes on the door, so once that pattern is set in the drill press, jig, or CNC, the workflow can stay consistent from door to door.

Using This Nexis Pie Cut Hinge In Corner Cabinets

Where This Pie Cut Corner Hinge Is Applied

This Grass Nexis self-close overlay face-frame pie cut corner hinge is designed for folding doors in corner cabinets, so it specifically serves pie-cut style corner openings rather than straight runs. Grass Nexis pie-cut corner hinges are used in conjunction with the Nexis 170 degree hinges, meaning the 170 degree models handle the main door swing while this hinge manages the folding connection between the doors. Being a concealed cabinet hinge, it sits inside the door and cabinet layout, leaving the exterior free of visible hinge hardware, which suits projects targeting a clean, modern look. The hinge works within the Nexis system using Grass Nexis mounting plates, so the same mounting scheme used on the 170 degree hinges carries over to the pie-cut corner position.

Adjustment And Design Details For Repeatable Results

Side-to-side adjustment of plus 2 mm to minus 2 mm on this Nexis concealed pie cut hinge provides lateral movement at the hinge arm, which helps correct door-to-door gaps along the folding joint and against adjacent fronts without re-drilling. Height adjustment of plus 2 mm to minus 2 mm lets the installer move doors slightly up or down on the mounting plates, so reveals can be brought into line across the top or bottom of the corner assembly. Depth adjustment of plus 2 mm to minus 2 mm changes how far the doors sit from the cabinet face, which is important for matching overlays and preventing interference with handles or adjacent cabinets. The shallow 10.8 mm cup depth reduces how much material is removed from the door during boring, which can support better strength in the hinge area of doors within the 19 mm to 24 mm thickness range. A 42 mm boring pattern ties directly into standard drilling setups, so production shops can run doors for this hinge alongside other Nexis hinges without changing spacing.

Common Questions About This Grass Nexis Pie Cut Hinge

Select This Nexis Hinge For Corner Folding Doors

The Grass Nexis pie-cut corner hinge with dowel cup fastening combines a 10.8 mm shallow cup depth with a 42 mm boring pattern, giving a defined drilling setup for doors from 19 mm to 24 mm thick. Side-to-side, height, and depth adjustments of plus 2 mm to minus 2 mm support fine tuning after mounting so folding corner doors align with the rest of the run. Working in conjunction with Nexis 170 degree hinges and Grass Nexis mounting plates, this concealed cabinet hinge completes the Nexis system for corner cabinet folding doors.
