Hettich Actro 5D 350mm Soft-Close Full Extension Undermount Drawer Slides, Ball Bearing Right hand Zinc - 9257068
Description
Hettich Actro 5D 350mm Drawer Slide Function

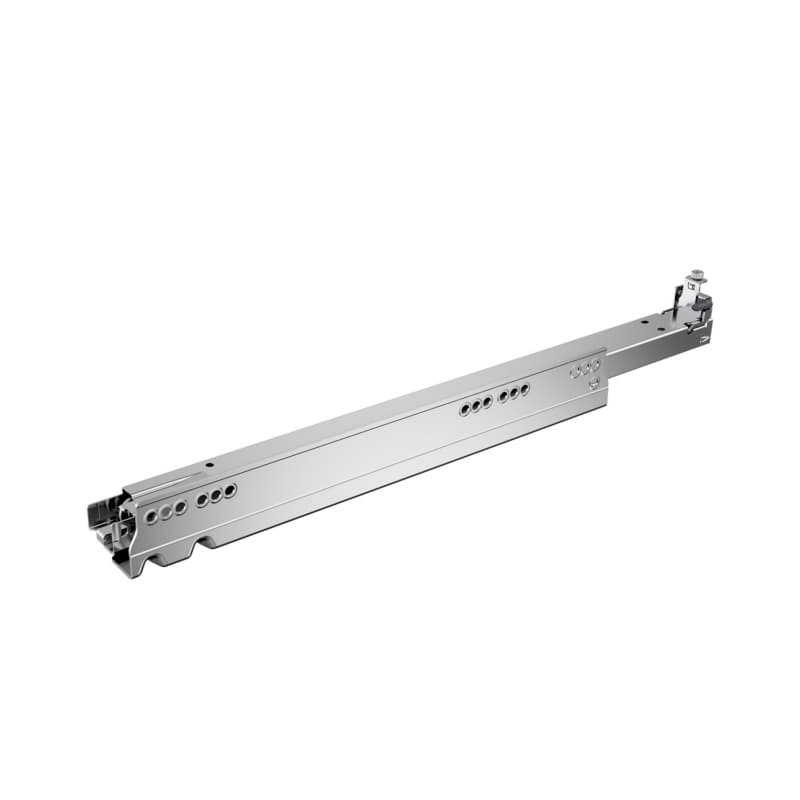

Hettich Actro 5D 350mm drawer slide is a full extension undermount drawer runner that moves the drawer fully out of the cabinet opening, giving clear access to contents along the entire drawer length during everyday use. The soft-close action on this runner slows the drawer travel at the end of the stroke, bringing it to a controlled stop that helps reduce slamming impact on the cabinet and drawer joints over time. This runner is designed for combining with a wooden drawer, so the metal hardware remains hidden under the box while the user sees only the wooden sides during operation. The product is a right hand runner, which defines its placement on the right side of the drawer system during installation for consistent motion and alignment. A ball bearing system guides the movement, creating a smooth running action that supports repeatable opening and closing under load.
Key Drawer Runner Details That Support Jobs
- The runner is part of the Hettich Actro 5D system, so it provides 5-way adjustment that helps the installer fine-tune front alignment between multiple drawers for a uniform cabinet look.
- Full extension travel lets the drawer slide completely out to its rated length, improving reach into the back of wooden drawers on kitchen, bath, or shop cabinetry.
- Soft-close operation cushions the last part of the close, helping protect drawer fronts and cabinet frames from repeated impact during normal use.
- The load capacity is defined in load classes XS (10 kg), L (40 kg), and XL (70 kg), so the system can be matched to expected drawer weights within the Actro 5D program.
- The runner uses galvanized steel construction, which provides a hard metal surface at the sliding members that supports long-term motion in typical indoor woodworking environments.
Undermount Slide Mounting And Adjustment Use
This product is an undermount drawer slide for wooden drawers, so it fastens beneath the drawer box, leaving the sides clean and allowing the slide to carry weight from below. Tool-less height adjustment up to plus 3 mm lets the installer shift the drawer front vertically relative to the runner, helping align top and bottom gaps across a bank of drawers without separate tools. Side adjustment up to plus or minus 1.5 mm enables lateral positioning of the drawer front, so reveals at left and right can be balanced after the drawer is hung. Tilt adjustment up to plus 4 mm permits the angle of the drawer front to be changed, which is useful when trying to achieve a consistent diagonal reveal or correcting a slight out-of-square opening. Radial adjustment up to plus or minus 1.5 mm gives another dimension of fine-tuning for the drawer fit within the cabinet opening during final alignment.
How This Actro 5D Runner Performs In Use
Where The Hettich Actro 5D 350mm Runner Fits
The product is an undermount drawer slide in the Drawer Slides & Accessories | Slides, Undermount category, so it is intended for furniture and cabinetry where the slide is hidden beneath a wooden drawer box. The 350mm runner length supports drawer designs built around that nominal depth, providing guided motion that matches the cabinet carcase dimension in metric projects. This right hand runner works as one side of a paired installation, establishing consistent tracking on the right while a corresponding component controls the left. The load capacity of the Actro 5D system is defined in load classes XS (10 kg), L (40 kg), and XL (70 kg), which indicates the runner family is engineered for a range of drawer weight scenarios in residential or commercial casework. Load capacity to EN 15338, Level 3 means the runner performance is verified against that European standard level, so the slide is tested to a defined benchmark of cyclic use and load handling.
Why Actro 5D Adjustments Support Clean Results
The runner provides tool-less height adjustment up to plus 3 mm, allowing installers to raise the drawer front slightly in the opening, which helps correct small vertical mismatches without rehanging the drawer. Side adjustment up to plus or minus 1.5 mm lets the drawer front shift left or right relative to the runner, making it easier to align reveals between neighboring fronts after installation. Tilt adjustment up to plus 4 mm changes the angle of the drawer front, which helps achieve parallel gaps to adjacent doors or drawers when cabinet conditions or construction introduce slight twist. Radial adjustment up to plus or minus 1.5 mm further refines how the drawer sits in the opening, supporting smoother interaction with soft-close and push to open Silent components in the Actro 5D program. The full extension design works together with these adjustments so the drawer tracks evenly over its full travel, which supports stable motion at different load levels in regular operation.
Common Questions About The 9257068 Runner
What type of drawer slide is the 9257068 runner?
The 9257068 runner is a Hettich Actro 5D full extension undermount drawer slide for wooden drawers, so it carries the drawer from below while remaining concealed under the box.
How much adjustment does the Hettich Actro 5D runner provide?
The runner offers tool-less height adjustment up to plus 3 mm, side adjustment plus or minus 1.5 mm, tilt adjustment up to plus 4 mm, and radial adjustment plus or minus 1.5 mm for front alignment.
What does full extension mean on this undermount slide?
The Hettich Actro 5D 350mm drawer slide provides full extension, so the drawer travels out to its designed length, improving access to the rear of the wooden drawer.
How is load capacity defined for the Actro 5D system?
The Actro 5D system is defined with load classes XS (10 kg), L (40 kg), and XL (70 kg), so drawers can be designed around expected weight ranges in that family.
What standard does the 9257068 drawer runner meet?
The runner has a load capacity to EN 15338, Level 3, indicating it is tested to that European drawer slide performance standard level for load and cycle criteria.
What material is used for the Hettich Actro 5D 350mm runner?
The Hettich Actro 5D runner is made from galvanized steel, providing metal slide members suited to typical indoor cabinetry and furniture environments.
Selecting This Runner For Your Drawer Project
The Hettich Actro 5D 350mm drawer slide pairs full extension travel with soft-close motion and 5-way adjustment, supporting clean drawer action and fine front alignment in wooden drawers. The undermount design positions the galvanized steel runner beneath the drawer box, keeping the hardware hidden while carrying the load. Load capacity defined in EN 15338, Level 3 and Actro 5D load classes means the system is engineered for typical furniture and cabinet applications. For projects that call for a 350mm undermount runner with precise adjustment and soft-close performance, this right hand Actro 5D runner offers a defined set of motion and alignment capabilities to build into your next run of casework.
