Hettich Actro 5D 400mm Soft-Close Full Extension Undermount Drawer Slides, Ball Bearing Left hand Zinc - 9257071
Description
Hettich Actro 5D 400mm Drawer Slide Purpose

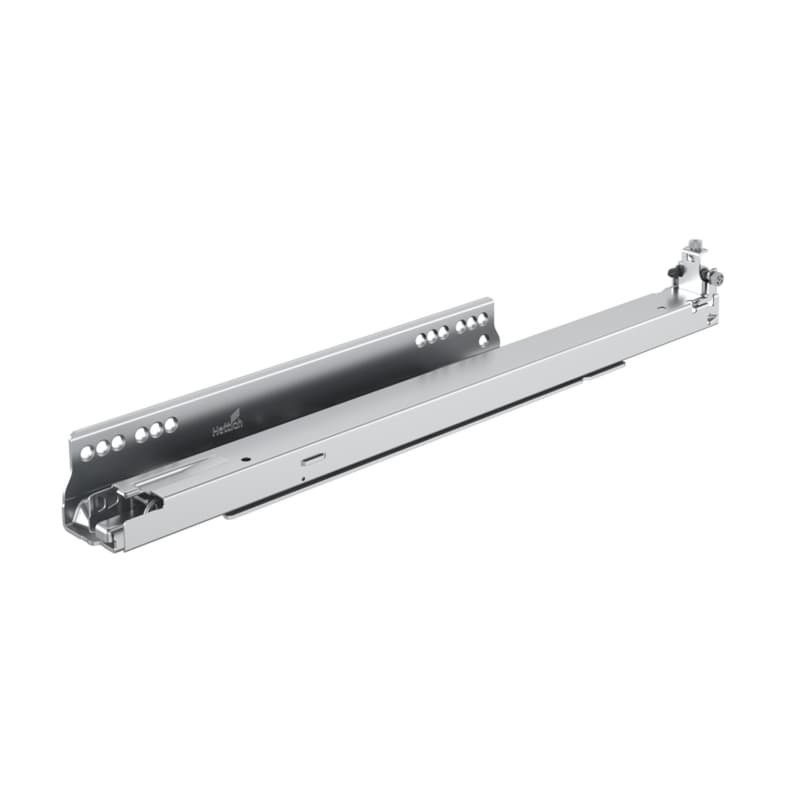

Hettich Actro 5D 400mm drawer slide is a soft-close, full extension undermount runner designed for wooden drawers, so the slide sits concealed under the box while still delivering full access to the drawer interior for day-to-day use. The left hand design with manufacturer part 9257071 lets you pair it with the corresponding right hand runner, keeping each side correctly oriented during installation and service. The soft-close function helps the drawer close in a controlled way, which supports quieter cabinet operation in residential or commercial spaces. Because it is specified as a full extension runner, the drawer can travel fully out to the rated length, which helps installers deliver clear access to stored items in deeper cabinets. As part of the Hettich Actro 5D runner range in load class L (40 kg), it is set up to handle typical medium-duty drawer loads while staying within its tested performance range.
Key Hettich Actro 5D Runner Advantages
- The soft-close full extension runner design lets the wooden drawer open fully yet close in a controlled motion, which supports smooth user operation and reduces slamming in fitted cabinetry.
- Undermount runner construction places the 400 mm slide beneath the drawer, which keeps hardware out of sight and helps installers deliver clean, modern cabinet interiors without visible side-mounted members.
- The runner is specified in load class L (40 kg) and tested to EN 15338, Level 3, so the slide performance is matched to medium-duty loads and verified against a recognized furniture hardware standard.
- Tool-less height adjustment up to plus 3 mm allows vertical alignment of the drawer front without separate tools, saving time during fitting and simplifying fine-tuning across multi-drawer stacks.
- Side adjustment up to plus or minus 1.5 mm, tilt adjustment up to plus 4 mm, and radial adjustment up to plus or minus 1.5 mm give flexibility to align fronts and gaps, helping correct minor cabinet and drawer variances on site.
- The galvanized steel construction of the Actro 5D runner provides a robust metal slide body that resists corrosion in typical interior environments, supporting long-term drawer function in kitchens, baths, and casework.
Installation And Adjustment Details For This Runner
This Actro 5D full extension undermount runner is designed specifically for combining with a wooden drawer, so the slide interfaces with a wooden box rather than metal sides. The left hand runner layout sets the orientation on the cabinet side, which helps during layout when mirroring with the right hand unit. Tool-less height adjustment up to plus 3 mm lets the installer shift the drawer vertically after mounting, which is useful for matching adjacent fronts along a run. Side adjustment up to plus or minus 1.5 mm allows lateral fine-tuning, so reveal lines can be evened out without remaking drawer boxes. Tilt adjustment up to plus 4 mm supports precise front tilt alignment, giving better control over top and bottom gaps. Radial adjustment up to plus or minus 1.5 mm offers another axis of correction, which helps refine the drawer fit when cabinets or fronts are slightly out.
Using The Actro 5D Runner In Real Projects
Where This 400mm Left Runner Fits Best
The Hettich Actro 5D 400mm drawer slide works as a full extension undermount solution for wooden drawers that fall within the L (40 kg) load class, so it suits many medium-load storage applications in kitchens, baths, and general casework. Its 400 mm length ties directly to the drawer depth, which helps designers and builders plan cabinet carcase dimensions around a known slide travel. Because the runner is designed as an undermount type, it supports projects where a concealed slide is preferred, keeping focus on the drawer fronts and materials rather than the hardware. The left hand configuration with part number 9257071 makes it clear which side of the cabinet this runner serves, which simplifies specifying matching handed components in project documentation and ordering lists.
Why Actro 5D Adjustments Improve Drawer Results
The Actro 5D runner offers tool-less height adjustment up to plus 3 mm, which means vertical positioning of the wooden drawer front can be altered after the runner is installed, reducing rework when aligning multiple fronts. Side adjustment up to plus or minus 1.5 mm lets the installer shift the drawer laterally within the opening, which helps establish consistent side reveals even if cabinet sides vary slightly. Tilt adjustment up to plus 4 mm provides control over the top-to-bottom angle of the drawer front, allowing fine-tuning so upper and lower gaps stay parallel across a bank. Radial adjustment up to plus or minus 1.5 mm adds an extra axis to correct minor positional issues, so the drawer can run smoothly while also sitting square in the face frame or frameless opening. Tested load capacity according to EN 15338, Level 3, and galvanized steel construction together support consistent runner performance over repeated cycles, which matters in high-use cabinet locations where drawers are opened and closed many times per day.
Common Questions About The Hettich 9257071 Runner
What type of drawer does the Actro 5D 400mm runner support?
The Actro 5D 400mm runner is described for combining with a wooden drawer, so it is intended to mount beneath wooden drawer boxes in cabinet and casework applications.
How does the soft-close full extension action help in daily use?
The runner provides soft-close full extension, so drawers pull fully out for access, then close in a controlled motion that reduces noise and impact on the cabinet.
What load capacity class does this Hettich 9257071 runner have?
This runner belongs to load class L (40 kg), which aligns it with medium-duty drawer loads suited to many residential and commercial storage applications.
What adjustment options are built into the Actro 5D runner?
The Actro 5D runner offers tool-less height adjustment up to plus 3 mm, side adjustment up to plus or minus 1.5 mm, tilt adjustment up to plus 4 mm, and radial adjustment up to plus or minus 1.5 mm.
Why is EN 15338 Level 3 testing relevant for this slide?
The runner has load capacity to EN 15338, Level 3, which ties its performance to a recognized standard for furniture hardware testing and service life expectations.
What material and finish are used for this undermount runner?
The Actro 5D runner is made from galvanized steel, giving the slide a corrosion-resistant metal surface suited to typical interior cabinet environments.
Selecting This Actro 5D Runner For Your Project
The Hettich Actro 5D 400mm drawer slide combines soft-close full extension undermount operation with multiple adjustment options, so it supports precise alignment of wooden drawers in medium-load installations. Its designation as a left hand galvanized steel runner in load class L (40 kg), tested to EN 15338 Level 3, ties directly to real project requirements where both capacity and long-term function matter. When a project calls for a concealed slide with refined front adjustment, this Actro 5D 9257071 runner gives installers and fabricators a clear, specification-led option for building consistent cabinetry banks.
