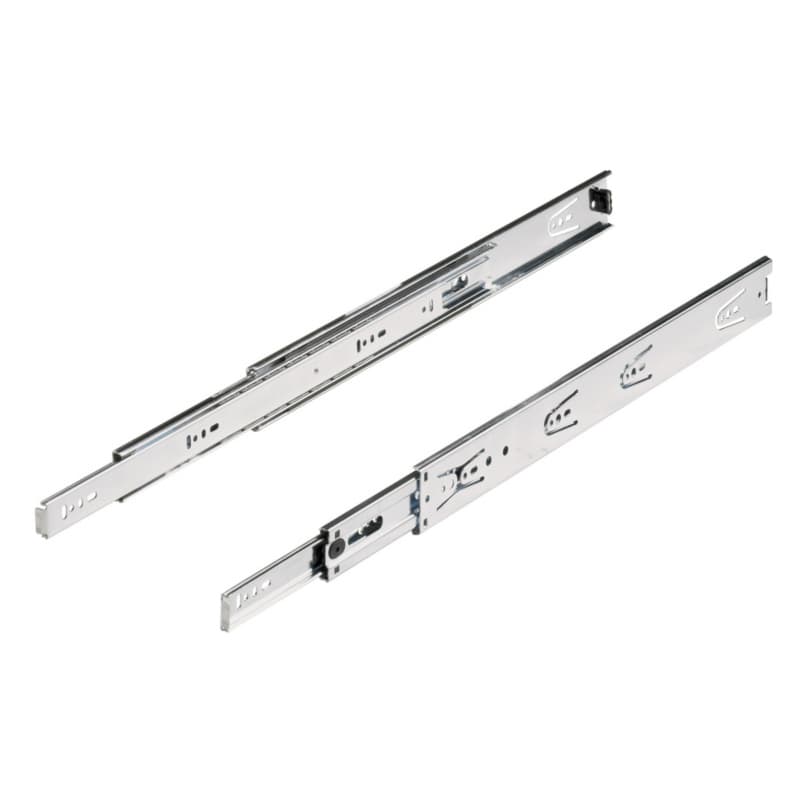

Hettich 12" Full Extension Standard Ball Bearing Drawer Slides KA 5632 Series, Unhanded Side Mount Zinc - 1071893
Description
Hettich 12 Inch Ball Bearing Drawer Slides For Smooth Access
Hettich 12 inch ball bearing drawer slides describe a KA 5632 Series full extension runner in galvanized steel that lets a drawer travel its full length, so the entire drawer space stays visible and reachable during use and fitting. The standard ball bearing construction supports the drawer on rolling elements, which gives a smooth, controlled motion under load when opening and closing. The side mount design places the slide on the drawer sides, which suits typical cabinet carcass layouts in many woodworking projects. An integrated self closing mechanism with Silent System cushioned closure pulls the drawer shut at the end of travel, reducing impact at the front. That self closing action helps the drawer settle consistently in the cabinet, which matters for front alignment and quieter operation. The runner is unhanded, so the same member can serve either side of the drawer during installation and replacement.
Key KA 5632 Slide Details That Support Daily Use
- The KA 5632 Series full extension design lets the drawer extend fully, which helps reach tools or stored items at the back without shifting contents around.
- The galvanized steel construction provides a rigid slide body, which supports high lateral stability so drawers track straight in typical cabinet applications.
- The standard ball bearing runner uses rolling contact, which produces a smooth pull under load and helps reduce effort when moving heavier drawers.
- The integrated self closing mechanism with Silent System cushioned closure draws the drawer closed, which softens closing impact at the face and supports consistent front positioning.
- The unhanded layout allows each slide member to fit either side, which simplifies stocking for installers handling multiple cabinet runs with the same runner type.
- The design suits wooden drawers with grooved, rebated, or loosely fitted bases, which aligns the slide with common drawer box construction methods in woodworking shops.
Side Mount Drawer Slide Installation And Removal Workflow
The KA 5632 Series runner is configured as a side mount drawer slide, so it aligns along the drawer sides during installation in a cabinet. A release lever in the design lets the drawer detach from the runner, creating a two-part workflow where the cabinet member and drawer member separate. That release function supports removal of the drawer for fitting, adjustment, or service without disturbing the fixed cabinet member, which saves time during layout corrections. When refitting, the drawer can be guided back onto the runner and re-engaged using the same mechanism, which restores the original travel path. The full extension behavior then returns, providing complete access to the drawer length once again.
Using Hettich KA 5632 Slides In Wood Drawer Projects
Where This Galvanized Steel Runner Fits Best
The KA 5632 Series full extension runner works with wooden drawers that have grooved, rebated, or loosely fitted bases, so it aligns well with drawer boxes built using typical shop techniques. Because the slide mounts on the drawer sides, it suits cabinets where the carcass design anticipates side-mounted hardware instead of under-mount layouts. The galvanized steel material forms a solid channel for the ball bearings, which contributes to reliable guidance across the entire extension path. In practice, this runner supports drawer setups where access to the complete interior length is important, since full extension lets the rear section move completely clear of the cabinet front.
The unhanded configuration means the same KA 5632 runner pattern can be used on either the left or right side of the drawer, so one slide type addresses both sides in construction runs. The self closing mechanism with Silent System cushioned closure activates at the end of inward travel, pulling the drawer into its final position and damping the last part of the motion. That combination helps the drawer front settle into a consistent stop point, which is valuable when multiple drawer fronts align across a bank of cabinets. The ball bearing design supports smooth sliding under working loads, so the drawer can move evenly along the runner as it travels from fully closed to fully extended.
Why KA 5632 Slide Details Support Repeatable Results
The full extension characteristic of the KA 5632 runner allows the drawer to move completely out to its design length, which makes the entire base area visible during fitting and later during daily use. That clear view of the bottom panel is helpful when checking how a grooved or rebated base meets the drawer sides in wood construction. The ball bearing mechanism maintains guided contact over the whole stroke, which supports repeatable motion each time the drawer is opened or closed in service. The self closing feature engages near the end of the closing travel, using internal action to draw the drawer the rest of the way in and cushion the final contact.
The Silent System cushioned closure moderates the closing speed at the last moment, which reduces force at the cabinet front and supports quieter operation in installed environments. Because the runner is unhanded, the same installation pattern can be mirrored from one side of the drawer to the other without changing parts, which simplifies layout. The galvanized steel finish covers the channel that guides the ball bearings, and that protected surface supports the sliding interface over time. As a side mount design, the KA 5632 runner establishes its reference along the drawer sides, which creates a direct relationship between slide position and drawer front reveal in the finished cabinet.
Common Questions About Hettich KA 5632 Drawer Slides
What type of drawer motion does the KA 5632 slide provide?
The KA 5632 Series slide provides full extension motion, so the drawer can travel its complete length and expose the entire interior during access and fitting.
How does the self closing Silent System mechanism work in practice?
The integrated self closing mechanism with Silent System cushioned closure pulls the drawer shut at the end of travel and softens the final impact, supporting quieter, more controlled closing.
Can the KA 5632 drawer be removed after installation?
The KA 5632 runner uses a release lever that lets the drawer detach from the runner, so the drawer can be removed and then refitted using the same slide members.
What drawer construction is this Hettich slide designed for?
This Hettich slide is designed for wooden drawers with grooved, rebated, or loosely fitted bases, aligning with common woodworking drawer box methods.
Where is the KA 5632 runner mounted on the drawer?
The KA 5632 Series is a side mount ball bearing drawer slide, so it runs along the drawer sides within the cabinet structure.
Does the KA 5632 slide support smooth movement under load?
The standard ball bearing construction and high lateral stability are designed to provide smooth movement and guided support as the drawer opens and closes.
Select Hettich KA 5632 Slides For Side Mount Wood Drawers
The KA 5632 Series full extension ball bearing drawer slide in galvanized steel combines side mount installation, unhanded runners, and self closing Silent System closure to support controlled drawer motion. For wooden drawers with grooved, rebated, or loosely fitted bases, this configuration aligns with typical cabinet construction while providing full travel and smooth guidance. Choosing this Hettich America Corporation slide lets the drawer use a proven runner pattern that supports consistent closing behavior and straightforward removal and refitting with its release lever.
