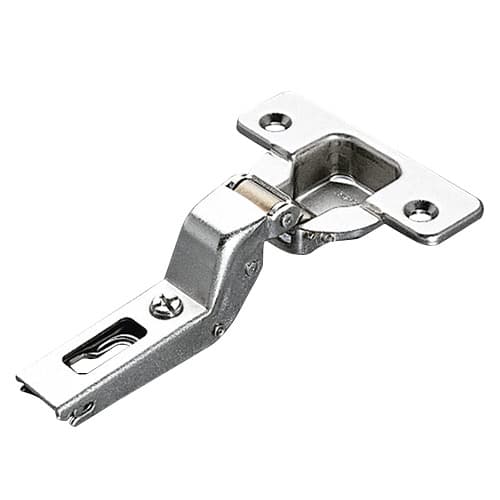

This Salice Series 200 concealed hinge is built for inset doors that sit flush within the cabinet opening, on both face-frame and frameless cabinets, with a clean nickel finish and dowel mounting for production-ready installs.
An inset door sits inside the cabinet opening rather than over it, framed by an even reveal on all sides. The full crank arm on this hinge carries the geometry that pulls the door back into that position, clearing the opening as it swings to 110 degrees without the door catching on the frame. The 35mm cup seats in a bored hole in the back of the door, and the arm connects to a base plate mounted to the cabinet, which is sold separately and must match the Salice Series 200 system. This hinge works on both face-frame and frameless boxes, so it fits a range of cabinet constructions in the same shop or on the same job. Door thickness up to 15/16 inch is supported.
The hinge body is steel in a nickel finish. On inset cabinets, hardware is often visible from the inside when the door is open, so a consistent finish across hinges matters more than on a full-overlay run. The nickel here reads clean against pulls, knobs, and slides in the same family. Height and side adjustment are built in, so doors can be brought to a matching reveal after the cabinet is set without removing the door from the plate.
Dowel mounting is the preferred path in CNC-driven shops: the cup's pre-attached dowels press into bored holes in the door without cup screws, which removes a fastening step and keeps the cycle time down across a production run. The self-open motion means the door stays put at any angle once opened, which suits display cabinets, appliance garages, and any application where a spring or damper closing action is not wanted. For a project that needs a closing action on inset doors, the self-close version of this series is the alternative to consider. This hinge is for indoor cabinetry on standard doors in the 16 to 22mm range. For doors thicker than 15/16 inch, a thick-door hinge is the right selection.
No. The hinge clips to a Salice base plate that mounts to the cabinet, and that plate is sold separately. Use a plate from the Salice Series 200 system to match this hinge. Plates from other brands will not connect.
Self-open means the hinge is free-swinging: no spring pulls the door shut and no damper slows it. The door stays wherever you leave it. If you need a door that closes on its own, choose the self-close version of this series instead.
The cup carries pre-attached dowels that press into holes bored in the door, so no cup screws are needed. A CNC or line-borer set up for 35mm cup holes and the matching dowel pattern handles this efficiently in a production environment.
Yes. It works on both, as long as the base plate you pair it with is correct for the cabinet construction. Confirm the plate style, face-frame or frameless, when ordering.
Specify this hinge when the job calls for flush inset doors on a production schedule, a consistent nickel finish through the run, and a free-swinging action that holds the door at any position.
Sold In: 1 Each
