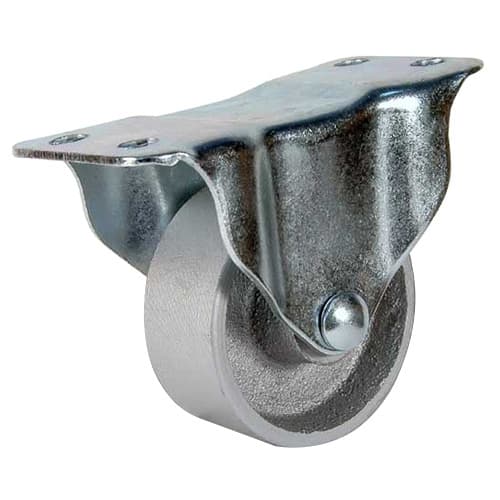

DH Casters Rigid Caster With 3" Steel Wheel No Brake, Plate Mount 250lb Capacity - C-GD30SR

DH Casters Rigid Caster For Material Handling

DH Casters rigid caster is a plate mounted caster designed to carry up to 250 lb, so it supports medium-duty loads in material handling, office furniture, and store fixture applications where consistent rolling support is needed. The rigid design holds the wheel in a fixed direction, which keeps carts or fixtures tracking straight in defined lanes or along walls. A 3 inch steel wheel with 1-1/4 inch tread width provides a narrow, solid rolling surface that fits under compact bases while still distributing weight effectively over the floor. The steel wheel construction resists deformation under rated load, helping keep the rolling action consistent over time. A zinc plated finish on the rig provides a protective surface that helps the caster maintain its appearance and function in typical indoor shop, office, or retail environments where exposure to handling and movement is routine.

Key Caster Details That Support Daily Use

• The 250 lb load capacity allows a single caster to carry substantial weight, so a set sized to the application can handle loaded carts, fixtures, or furniture without overloading individual points.
• The 3 inch wheel diameter keeps overall height compact, which helps maintain a low center of gravity on equipment or fixtures while still giving enough wheel size for smooth movement on typical hard floors.
• The 1-1/4 inch tread width concentrates the load on a moderate footprint, which aids maneuvering in tighter spaces while still offering enough contact area for stable rolling in straight-line applications.
• The plate mount design provides a broad mounting surface, helping spread forces into the base of a cart or fixture for stable attachment where a plate layout can be accommodated.
• The zinc plated finish on the rig adds a protective layer to the metal surfaces, which supports resistance to normal handling wear in indoor material handling, office, and retail settings.

Plate Mount Caster Dimensions For Setup

This plate mount rigid caster uses a plate sized 2-1/2 inch by 4-7/8 inch, giving a rectangular mounting footprint that fits many compact carts and fixtures. The defined plate dimensions help layout mounting hole positions relative to the base, which supports repeatable placement across multiple units on a single frame. With a 3 inch wheel diameter and 1-1/4 inch tread width, the caster adds a modest overall height while keeping the wheel narrow, so it fits under smaller bases where vertical space is limited. The 250 lb load rating per caster helps installers select an appropriate quantity and layout of casters to match the expected load across the base structure.

Using This Rigid Plate Mount Caster On Projects

Where This 3 Inch Steel Wheel Caster Fits

This DH Casters rigid caster with 3 inch steel wheel is suited to material handling projects that call for straight-line travel, because the fixed rig keeps the wheel tracking in a single direction under load. The stated applications of material handling, office furniture, and store fixtures show it is intended for carts, desks, displays, or similar pieces that move across shop, office, or retail floors. The 2-1/2 inch by 4-7/8 inch plate size matches compact base areas typically found on small carts or fixtures, so it integrates into frames without requiring large mounting surfaces. The 1-1/4 inch tread width supports use on narrow legs or rails where a wider wheel might interfere with adjacent components in the assembly.

Why The Rigid Plate Design Supports Repeatable Results

The rigid plate design keeps the caster from swiveling, so once the plate is aligned on the base, the wheel direction stays fixed for consistent tracking along aisles or work cells. This predictable orientation simplifies layout when pairing with swiveling casters at the opposite end, because the fixed casters define the travel direction. The zinc plated finish on the rig helps maintain smooth operation by protecting the metal surfaces from typical contact during daily movement, which supports long-term consistency across multiple installations. The 250 lb capacity rating guides how many rigid casters to distribute under a frame so the load is shared properly, encouraging uniform performance across each mounting point. The 3 inch steel wheel construction supplies a solid rolling interface that resists flattening under the rated load, which helps maintain the same rolling feel each time the equipment is moved along regular paths.

Common Questions About The C-GD30SR Caster

Choose This Caster For Straight-Line Rolling Duties

This DH Casters rigid caster with 3 inch steel wheel and 250 lb capacity offers a compact, plate mounted option for straight tracking in material handling, office furniture, and store fixture projects. The 2-1/2 inch by 4-7/8 inch plate, steel wheel construction, and zinc plated finish together provide a defined mounting footprint and solid rolling interface suited to indoor environments. When selecting casters for your next cart, desk, or fixture build, match this rigid plate mount caster to locations where you want controlled, straight-line movement under medium-duty loads.
