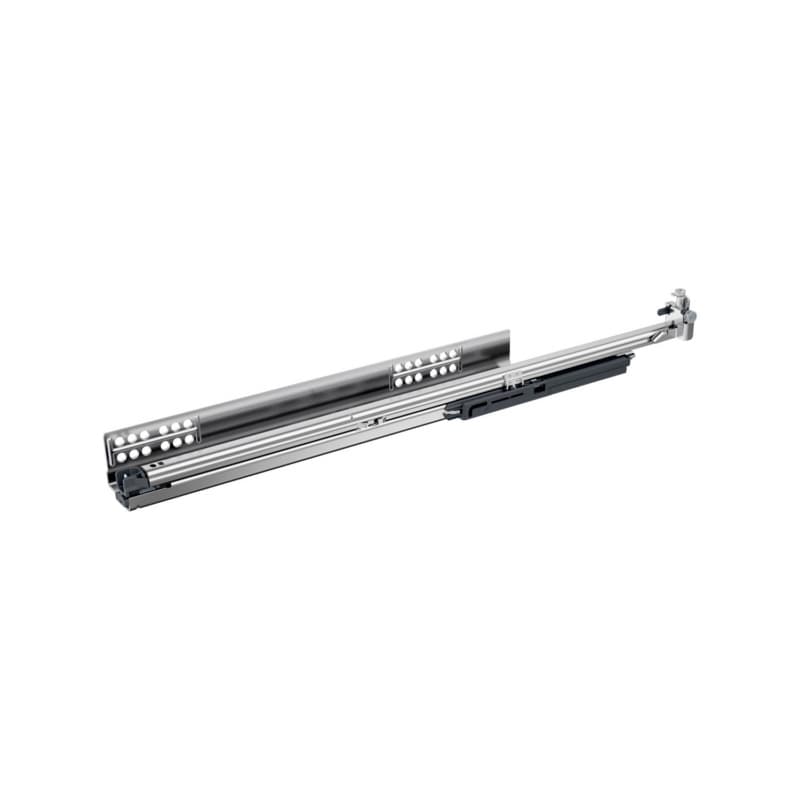

Hettich Quadro V6 5D undermount drawer slide is a 450mm, left hand, soft-close, full extension slide that supports standard drawer applications, so it suits projects that demand smooth travel with front access to the full drawer length. The soft-close Integrated Silent System gently controls closing, which reduces slamming and helps protect drawer fronts and contents from impact stress over time. Full extension travel lets the drawer clear the cabinet, giving better visibility into the back corners during everyday work. As an undermount design, the slide is concealed beneath the drawer box, which leaves the drawer sides free for clean cabinet interiors and straightforward profile design. The slide uses ball bearing technology, providing consistent guided movement that supports frequent opening and closing in busy environments. With its left hand configuration, this part fits the designated side within a Quadro system layout.
Convenient slide on installation with 2D catches and tilt adjustment streamlines mounting, because the drawer can be connected to the undermount slide in a controlled motion rather than complex assembly. Tool-less, intuitive adjustment of the drawer front panel means the installer can fine-tune alignment at the cabinet face without extra tools, which speeds fitting on site or in the shop. Height adjustment up to plus 3mm lets the drawer front be raised within the opening, helping align reveals across a bank of drawers. Side adjustment up to plus or minus 1.5mm, with a maximum drawer side profile thickness of 15mm, helps correct small lateral offsets while still respecting the stated drawer profile limits. Depth adjustment up to plus 2mm/minus 1mm allows the front to sit flush with surrounding fronts, helping manage step differences. Tilt adjustment up to plus 4mm and radial adjustment up to plus or minus 1.5mm further refine the front plane, supporting consistent gaps from top to bottom.
This soft-close full extension undermount slide is positioned for standard drawers that benefit from full access and controlled closing, such as storage in cabinetry built around 450mm nominal drawer depths. The undermount format keeps the hardware out of sight beneath the drawer box, which suits projects where a clean side profile and finished interior are important. With a load capacity up to 30 kg for standard applications, the slide supports contents commonly found in residential or light commercial drawers that stay within that stated load range. The left hand designation defines its placement in a paired slide arrangement, helping maintain correct orientation during installation. As galvanised steel hardware, it is suited to indoor furniture environments where protected steel offers long-term functional stability. When used within the Quadro V6 5D family, the 450mm length and 5D adjustment capabilities help support consistent hardware selection across a run of cabinetry.
Tool-less drawer front adjustment affects workflow by letting the fitter dial in front alignment directly on the installed slide, which reduces time spent removing components to correct minor deviations. Height adjustment up to plus 3mm provides vertical tuning, so stacked drawers can be leveled against each other for an even reveal line. Side adjustment up to plus or minus 1.5mm works with the allowed maximum drawer side profile thickness of 15mm, supporting small horizontal corrections while staying within the slide's design envelope. Depth adjustment up to plus 2mm/minus 1mm lets the installer bring the drawer front forward or back, helping achieve a consistent front plane across doors and drawers in the same elevation. Tilt adjustment up to plus 4mm pivots the front, which is useful when top and bottom gaps read differently and need visual balancing. Radial adjustment up to plus or minus 1.5mm fine-tunes the front position relative to the running gear, supporting smooth travel with an aligned face. These combined adjustments support repeatable, precise drawer front positioning across multiple cabinets.
The Hettich 9332655 is a Quadro V6 5D 450mm left hand soft-close full extension undermount drawer slide, so it mounts beneath the drawer and provides controlled, full-length travel.
This undermount drawer slide has a load capacity up to 30 kg for standard applications, which supports typical drawer contents when they are kept within that stated load range.
The tool-less drawer front adjustment on this slide lets installers set height, side, depth, tilt, and radial position directly on the hardware, which speeds front alignment and fine-tuning.
This slide offers height adjustment up to plus 3mm, side adjustment up to plus or minus 1.5mm, depth adjustment up to plus 2mm/minus 1mm, tilt adjustment up to plus 4mm, and radial adjustment up to plus or minus 1.5mm.
The Hettich Quadro V6 5D slide is made from galvanised steel, which supports long-term function of the running components in typical interior furniture environments.
The load capacity of this slide is to EN 15338, Level 3, which ties its stated performance to a defined furniture hardware testing standard.
This Hettich Quadro V6 5D 450mm left hand soft-close full extension undermount drawer slide combines an Integrated Silent System with extensive tool-less front adjustment, so it aligns well with projects that value precise reveals and quiet, controlled drawer motion. Using the specified load capacity up to 30 kg for standard applications, plus the defined height, side, depth, tilt, and radial adjustments, supports efficient installation and consistent drawer performance across a furniture run.
Sold In: 10 Each
