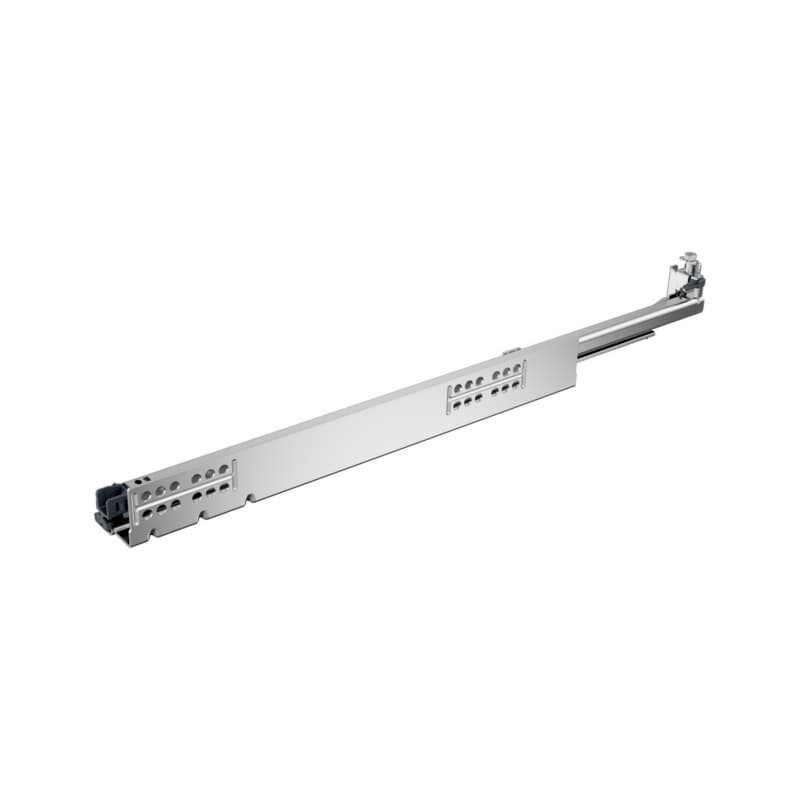

Hettich Quadro V6 5D undermount drawer slide defines this right hand 500mm full extension slide as a concealed option for drawers where clean looks and smooth travel matter on finished cabinetry. The soft-close Silent System is integrated into the slide, so the drawer closes gently, which helps protect front alignment and reduces impact on cabinet fronts over repeated use. Full extension travel lets the drawer open its complete length, giving access to the entire drawer space, which supports efficient storage layout on deeper drawers. The slide is designed as a right hand member, so it matches applications where a separate left hand slide is used to complete the pair. Quadro ball bearing technology in this undermount format guides the drawer precisely, which supports accurate movement when tight reveals and consistent gaps are part of the job requirement.
Tool-less, intuitive adjustment of the drawer front panel is built into this undermount slide, so fit can be refined after the drawer is hung, which supports cleaner reveals without extra tools. Height adjustment up to plus 3mm is provided, letting the front move vertically to align top edges or match adjacent drawer lines. Side adjustment up to plus or minus 1.5mm is available when the drawer side profile thickness is at most 15mm, which allows small lateral corrections so joints and gaps look even. Depth adjustment up to plus 2mm and minus 1mm is integrated, letting the front move in and out to flush with doors or neighboring fronts. Tilt adjustment up to plus 4mm and radial adjustment up to plus or minus 1.5mm further refine the front position, which helps compensate for minor cabinet irregularities while keeping the drawer running correctly.
This 500mm soft-close undermount drawer slide length suits drawers designed around 500mm runners, which ties the motion hardware directly to common cabinet carcase depths. As an undermount drawer slide in the Hettich Quadro V6 5D family, it supports applications where hardware is concealed beneath the drawer box, keeping the sides clear for clean interior lines and custom drawer side materials. The right hand design of this Hettich 9332660 right hand slide defines its role in a left-right pair, which helps plan inventory and layout when specifying multiple cabinets. The product is classified as an undermount drawer slide for standard applications up to 30 kg, so it addresses everyday storage such as kitchen, bath, and furniture drawers within that loading. Load capacity to EN 15338, Level 3 is specified, meaning the slide has been tested to that standard level, which matters on projects that reference that performance class in specifications.
The tool-less drawer front adjustment on this height and side adjustable drawer slide lets installers dial in height, side, depth, tilt, and radial settings directly on the hardware, which reduces time spent rebuilding drawer boxes when small alignment issues appear. Height adjustment up to plus 3mm and side adjustment up to plus or minus 1.5mm (with drawer side profile thickness up to 15mm) give practical ranges for correcting stacked drawer banks, which helps keep sight lines straight across large cabinet runs. Depth adjustment up to plus 2mm and minus 1mm means the front can be set flush or slightly proud according to design intent, which is useful when pairing drawers with framed openings or overlay doors. Tilt adjustment up to plus 4mm and radial adjustment up to plus or minus 1.5mm further fine-tune the front plane, supporting precise reveals even when cabinet walls vary. The slide is manufactured from galvanised steel, so the runner structure uses a treated steel surface that supports consistent motion performance in typical interior woodworking environments.
The 500mm soft-close undermount drawer slide works with drawer designs built around 500mm runner length, which helps match cabinet depth when planning box dimensions.
The slide has a load capacity up to 30 kg for standard applications, which sets its use range for typical storage loads on kitchen, bath, or furniture drawers.
The Hettich Quadro V6 5D undermount drawer slide offers tool-less height, side, depth, tilt, and radial adjustments, which helps align drawer fronts precisely after installation.
The integrated Silent System in this soft-close undermount drawer slide slows and cushions closing, which reduces slamming forces on drawer fronts and cabinet structures.
This undermount drawer slide lists load capacity to EN 15338, Level 3, which aligns it with projects referencing that specific drawer runner performance classification.
The Hettich 9332660 right hand slide is made from galvanised steel, which provides a treated steel construction suitable for typical interior cabinet environments.
This full extension soft-close drawer slide pairs 500mm undermount Length, a 30 kg standard application load rating, and EN 15338 Level 3 performance with extensive tool-less adjustment, so it supports precise front alignment on modern cabinetry. The right hand Quadro V6 5D configuration with integrated Silent System and optional Push to open Silent retrofit option offers a concealed runner solution for projects calling for soft-close motion and potential handle-free operation. For jobs using galvanised steel undermount drawer slide hardware with defined adjustment ranges, this Hettich America Corporation model 9332660 provides a clearly specified runner choice ready to match 500mm drawer designs.
Sold In: 10 Each
