Knape And Vogt 8400 Drawer Slide Performance

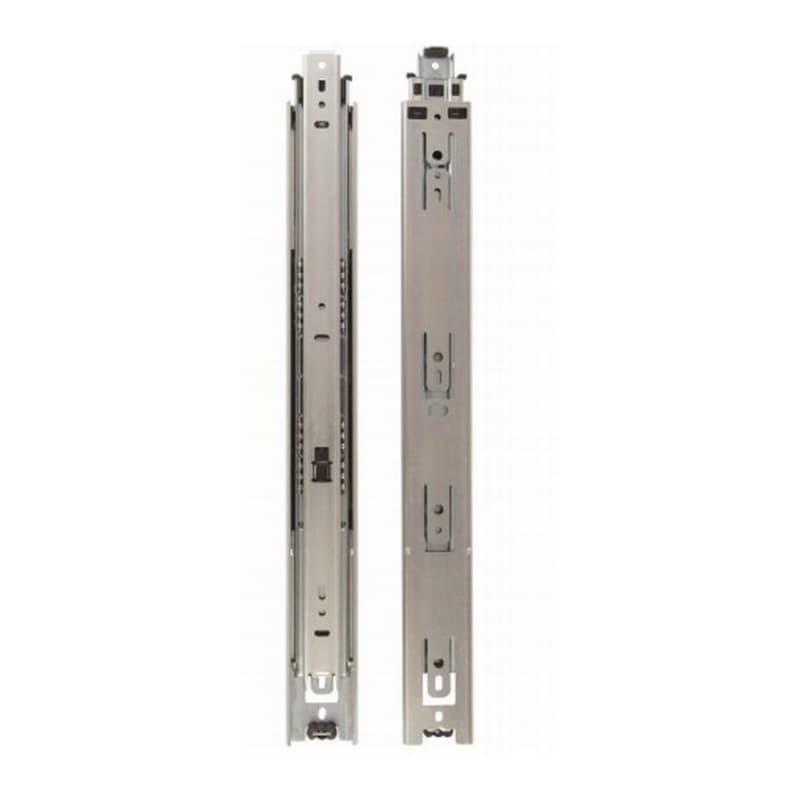

Knape and Vogt 8400 drawer slide in the 8 inch length provides full extension travel, letting the drawer open to its rated length so contents are accessible without overtravel. The side mount, ball bearing design supports smooth movement along the cabinet side, which helps drawers feel consistent from fully closed to fully open. An anochrome finish on the steel slide gives a zinc-based protective surface, supporting appearance and performance in typical cabinet environments. The slide is part of the Knape and Vogt 8400 Series, so its geometry, disconnect method, and clearances follow that established platform. This model is unhanded, so the same member style works on either left or right side, simplifying layout and part selection. The hold-in, anti-rebound feature uses the internal mechanism to help resist the drawer drifting back out after closing.

Key 8400P 8 Full Extension Slide Details

• The 8 inch length defines the drawer travel, which suits shallow drawers where space is tight yet full extension is still required for direct front access.
• Side clearance of 1/2 inch plus 1/32 inch minus 0 inch on each side sets the fitting gap, giving a clear machining target for consistent cabinet and drawer widths.
• Height of 1-13/16 inch establishes the vertical space needed on the drawer side, guiding notch depths and placement when working within limited face-frame or opening heights.
• The 32 mm pattern on the slide matches that system layout, allowing hole positions to line up with standard line boring for faster, repeatable installation.
• The ball bearing construction supports guided travel along the members, which helps drawers open and close smoothly under normal cabinet loading.
• A lever disconnect lets the drawer member separate from the cabinet member, which aids removal for finishing, adjustment, or service without disturbing the cabinet installation.

Side Mount Drawer Slide 8 Inch Fit

This side mount drawer slide 8 inch model is built for mounting along the cabinet interior sides, so the cabinet member references the side panel instead of the drawer bottom. The specified 1/2 inch plus 1/32 inch minus 0 inch side clearance on each side defines the total width difference between cabinet opening and finished drawer box. That clearance, combined with the 1-13/16 inch slide height, sets the working envelope for both drawer and cabinet members. Using the stated 32 mm pattern, bore lines can follow standard system rows, which supports alignment across multiple drawers in the same cabinet run. The anochrome finish on the steel surfaces contributes to a consistent sliding interface where the bearings track, which supports repeatable feel over time.

Using This Ball Bearing Drawer Slide Effectively

Where This 8 Inch Slide Works Best

This 8 inch ball bearing drawer slide suits short-depth drawers where available cabinet depth is limited yet full extension access is desired. The slide operates as a side mount unit, so it works in cabinet constructions that provide side panels tall enough for the 1-13/16 inch height. Because the model is unhanded, it can be placed on either side without different part numbers, which can simplify stock and field layout. The 32 mm pattern gives hole locations that correspond to system rows, so it fits well in cabinets bored on that standard. The anochrome finish supplies a zinc-based surface along the slide members, which supports function in normal interior woodworking environments where metal hardware must resist routine wear.

Details That Support Consistent Drawer Results

The lever disconnect on the 8400P 8 full extension slide provides a defined release point between cabinet and drawer members, which helps during installation by allowing drawers to be fitted or adjusted off the cabinet. The ball retainer latch is part of the internal slide design, helping keep the bearing set positioned on the raceways, which supports smooth travel when the drawer is cycled repeatedly. Full extension travel means the moving member reaches out to expose the full drawer length, which aids access to storage at the back of the drawer. Side clearance of 1/2 inch plus 1/32 inch minus 0 inch per side provides a specific tolerance window, supporting drawers that track cleanly without side bind. The hold-in, anti-rebound function works within the slide mechanism to help the drawer stay located at the closed position once pushed shut, which is useful in cabinets where slight movement could otherwise nudge drawers forward.

Common Questions About This KV 8400 Slide

Selecting This Slide For Your Drawer Build

The Knape and Vogt 8400 drawer slide with 8 inch length, full extension travel, and side mount ball bearing construction gives a defined geometry for short drawers. With 1/2 inch plus 1/32 inch minus 0 inch side clearance, 1-13/16 inch height, and 32 mm pattern, it fits well into system-based cabinet work. The anochrome finish, unhanded members, lever disconnect, and hold-in anti-rebound feature combine to support practical drawer operation in everyday cabinetry. Select this model when an 8 inch, full extension side mount slide from the 8400 Series matches your cabinet layout.
