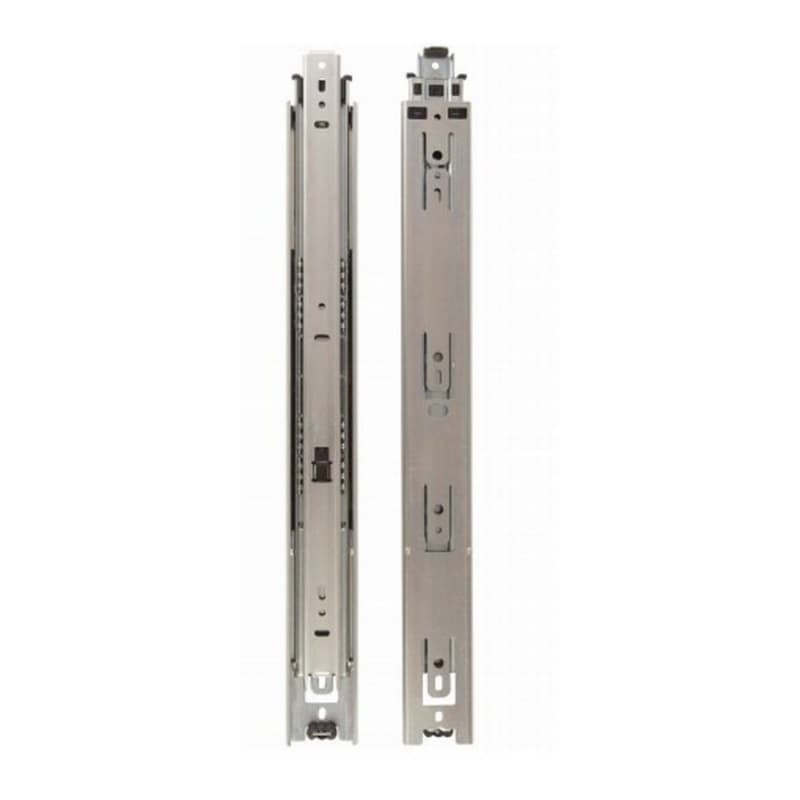

Knape And Vogt 10 Inch Slides For Full Extension

Knape and Vogt 10 inch drawer slides give a short drawer full extension travel, so the drawer clears the cabinet face and exposes the interior for access and hardware servicing. These 8400 Series slides use ball bearing construction, which supports smooth, repeatable motion under load in side mount drawer applications. The slides are unhanded, so the same member design works on either side of the drawer, which simplifies layout and reduces part variation on the bench. A hold-in anti-rebound function keeps the drawer in the closed position once pushed shut, which helps keep fronts aligned in rows of cabinets. The anochrome finish provides a uniform, metallic appearance across the members, which matters where slides are visible in open-case or utility cabinetry.

Key 8400 Series Details For Daily Cabinet Work

• Kv Model #8400 identifies this slide as part of the 8400 Series, so installers matching existing hardware can align performance and geometry within that series.
• A 10 inch length works with shallow drawers, which is useful in tight cabinet bays where depth is limited by plumbing, electrical, or case construction.
• The 1/2 inch plus or minus 1/32 inch side clearance per side defines the required gap between drawer and cabinet, which drives drawer box sizing and jig settings.
• A height of 1-13/16 inch sets the vertical footprint of the slide, which affects where it can sit on low drawer sides or near bottom rails.
• The 32 mm pattern provides hole locations aligned with 32 mm system drilling, which speeds layout on line-bored cabinet sides and drawer boxes.
• The anochrome finish creates a consistent coated surface, which supports a clean appearance on exposed or semi-exposed casework projects.

Side Mount Drawer Slide Fit And Mounting Points

This Knape and Vogt 8400P 10 side mount drawer slide uses a specified side clearance of 1/2 inch plus 1/32 inch minus 0 inch on each side, which sets a clear drawer width target for dependable motion. The defined height of 1-13/16 inch provides a fixed reference when positioning the slide vertically on drawer sides and cabinet members, which helps align multiple drawers in a bank. The 32 mm pattern on the members coordinates with system drilling, so case sides and drawers bored on that standard can accept the slide without additional layout steps. Recommended fasteners are #7 x 1/2 inch Phillips truss head, which match the slide hole design and help seat the members securely to wood components.

Using These 8400P 10 Slides In Real Projects

Where Knape And Vogt 8400 Series Slides Work

The Knape and Vogt 8400P 10 full extension slide fits side mount drawer applications where a 10 inch travel is sufficient for the box depth, such as shallow base cabinets, vanities, or utility pullouts. The unhanded design means each slide member can serve on either the left or right, which reduces part sorting when building multiple cabinets at once. The 32 mm pattern makes this slide suitable for frameless or face-frame cabinets that use line boring for system holes, because the pattern ties directly into those rows. The hold-in anti-rebound behavior helps drawers stay seated when installed in banks, which supports consistent reveals when fronts are aligned during final fit. The anochrome finish suits jobs where the slide may be visible when drawers are open, supporting a uniform hardware look across the run.

Details That Support Smooth Drawer Replacement

This 8400 Series slide uses a lever disconnect feature, which lets the drawer member separate from the cabinet member by operating the lever, so drawers can be removed for adjustments, finishing, or service without unfastening the members. The ball retainer latch helps keep the ball bearings properly positioned in the slide, which supports smooth travel over time in typical cabinet use. Side clearance of 1/2 inch plus 1/32 inch minus 0 inch per side provides a precise target for drawer box width, which reduces rework when repeating the same setup across a production run. The specified height of 1-13/16 inch lets builders design drawer sides and clearances to accommodate the hardware early in the layout. The recommended #7 x 1/2 inch Phillips truss head fasteners match the mounting holes, which supports secure installation into cabinet sides and drawer boxes. The product is identified as 8400P 10 and sold by Wurth Baer Supply, so reordering for future projects can follow the same part number for consistent hardware.

Common Questions About 10 Inch 8400P Slides

Selecting 8400P 10 Slides For Your Next Build

The Knape and Vogt 8400P 10 full extension side mount drawer slide combines a 10 inch length, 1/2 inch plus 1/32 inch minus 0 inch side clearance, and a 1-13/16 inch height, giving cabinet builders clear parameters for drawer box sizing and hardware location. The lever disconnect, ball bearing construction, hold-in anti-rebound function, and 32 mm pattern support efficient installation and smooth drawer operation across production or custom work. Ordering this 8400P 10 anochrome slide from Wurth Baer Supply keeps the hardware specification consistent across projects.
