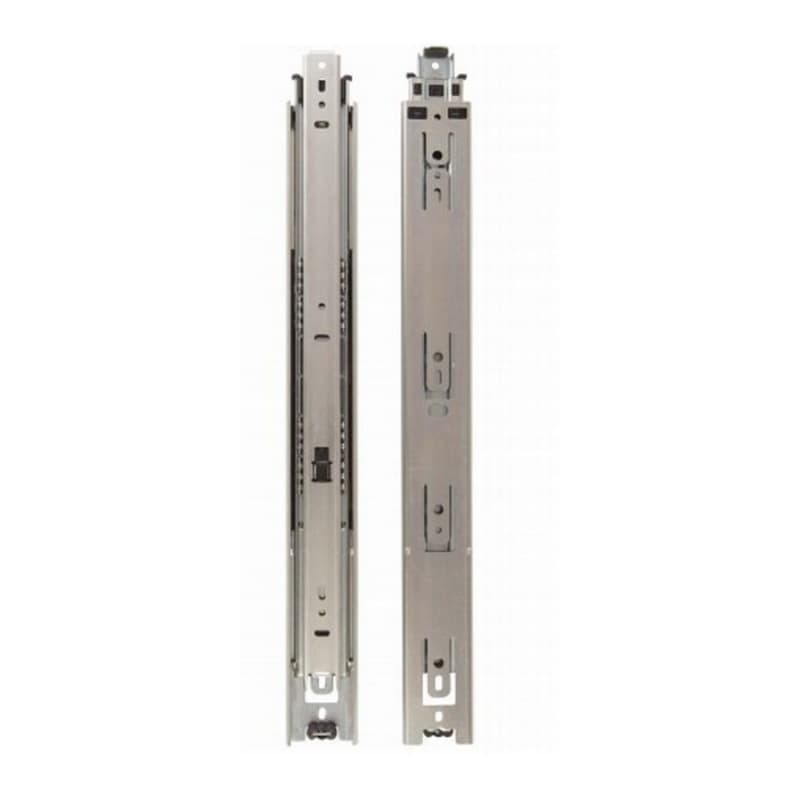

Knape and Vogt 24 Inch Drawer Slides For Smooth Access

Knape and Vogt 24 inch drawer slides in the 8400 Series provide full extension, so the 24 inch drawer length can be used for complete access to stored contents during regular operation. The side mount design fits cabinets set up for side-mounted slides, aligning with common shop construction methods. A ball bearing design supports smooth movement along the slide members, which helps drawers open and close with a consistent feel over repeated cycles. The hold-in anti-rebound feature works to keep the drawer in the closed position, reducing nuisance reopening in everyday use. These slides are non-handed, so the same model works on either side of the drawer, simplifying part stocking and layout. The anochrome finish gives the slide a uniform metal appearance, matching other anochrome-finished hardware in a project. A 1/2 inch plus or minus 1/32 inch side clearance per side gives a defined target gap for cabinet and drawer construction.

Key 8400P 24 Slide Details For Cabinet Work

• The 24 inch length matches drawers built for a 24 inch slide, helping align cabinet depth with standard case dimensions used in many shop layouts.
• Full extension travel lets the drawer clear the cabinet face, so stored items can be reached without working around partially hidden space at the back.
• The ball bearing construction supports smooth sliding action along the members, which matters when drawers are opened and closed many times during normal use.
• Lever disconnect is built into the 8400 Series, allowing the drawer member to be separated from the cabinet member for installation or removal when a project calls for that handling.
• The non-handed design means each slide pair can be used on either side, which keeps ordering straightforward and reduces left-right part sorting during assembly.
• A 1-13/16 inch overall height defines how much vertical room the slide occupies, helping plan drawer box height and spacing between stacked drawers.

Side Mount Drawer Slide Fit And Fastening Setup

This Knape and Vogt 8400P 24 model is a side mount drawer slide, so it is intended to fasten to the cabinet sides and drawer sides rather than the bottom. Side clearance is specified as 1/2 inch plus 1/32 inch minus 0 inch on each side, which sets a clear target for drawer box width relative to the cabinet opening. The slide height of 1-13/16 inch defines the band of space along the drawer side that needs to be kept clear of other hardware or cutouts during construction. The recommended fasteners are #7 x 1/2 inch Phillips truss head screws, which match the hole sizing and pattern used on the 8400 Series members. A 32 mm pattern is noted, so the hole layout ties in with cabinet systems that work off 32 mm spacing for hardware positioning.

Using Knape And Vogt 8400P 24 Slides In Projects

Where These 24 Inch Slides Are Applied

The Knape and Vogt 8400P 24 drawer slides are classified as side mount, ball bearing slides, fitting projects that call for that hardware class in cabinets or casework. With a 24 inch length and full extension, these slides match drawers that run the full cabinet depth in many standard bases or tall cabinet sections. The 1/2 inch plus or minus 1/32 inch side clearance on each side is helpful when building drawer boxes to fit a known face-frame or frameless opening size. Because they are non-handed, the same slide type can be used on both left and right drawers across a job, keeping part numbers consistent from cabinet to cabinet. The anochrome finish ties these slides into projects that already use anochrome-finished components, creating a unified hardware appearance along the cabinet interiors.

Details That Support Repeatable Drawer Installations

The 8400 Series lever disconnect feature allows the drawer member to be released from the cabinet member, which can simplify attaching slides to drawer boxes on the bench and then setting drawers into the cabinet. A ball retainer latch is specified, helping keep the ball bearings in place within the slide during use, which supports consistent action over time. The hold-in anti-rebound function works to resist the drawer moving back out after closing, important in everyday environments where minor vibration could shift the drawer position. The 1-13/16 inch slide height and 32 mm pattern provide fixed reference dimensions that align with drilling jigs and line-boring patterns, which helps keep mounting locations repeatable from one cabinet run to the next. Using the recommended #7 x 1/2 inch Phillips truss head screws pairs the slide with fasteners sized for the hole design, which supports a secure connection at the mounting points.

Common Questions About 8400P 24 Drawer Slides

Select Knape And Vogt 8400P 24 Slides For Precise Fit

The Knape and Vogt 8400P 24 combines a 24 inch full extension length, side mount configuration, and ball bearing action to support everyday drawer use in cabinets built around these dimensions. With a defined 1/2 inch plus or minus 1/32 inch side clearance per side, it gives clear guidance for matching drawer width to the opening. The anochrome finish and 1-13/16 inch height provide known reference points for integrating these slides into existing cabinet hardware standards. For projects using side mount, ball bearing slides with lever disconnect in the 8400 Series, the 8400P 24 aligns with those requirements.
