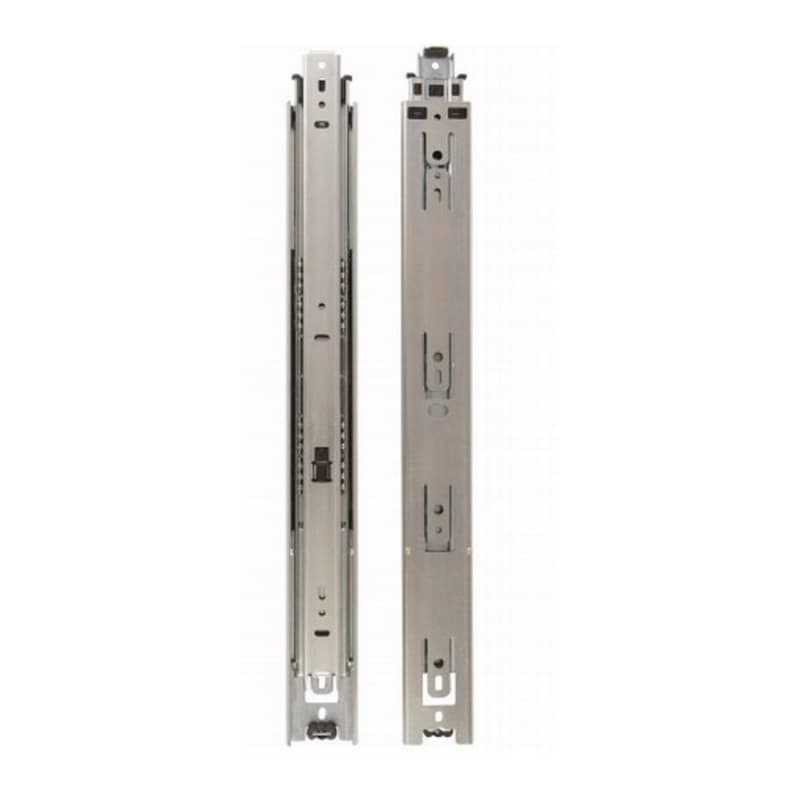

Knape and Vogt 18 inch drawer slides give an 18 inch full extension travel, so drawers open their full length for clear access to stored items during everyday use and cabinet service work. These 8400 Series ball bearing drawer slides use a ball retainer latch that supports smooth, guided motion, which helps drawers track consistently under load in typical cabinetry applications. The finish is anochrome, so the slide surfaces have a uniform metal look that suits most shop-built casework and blends well with common cabinet interiors. This model is a side mount drawer slide, so it installs along the drawer sides and cabinet members, matching standard side mount construction used in many shops. The slides are non-handed, so the same member style works on either side, which simplifies layout and reduces orientation errors when installing multiple drawers on a job.
This 8400P 18 side mount drawer slide is designed as a side mount, ball bearing slide, so it aligns with drawer sides and cabinet sides in standard joinery layouts. The specified side clearance of 1/2 inch plus 1/32 inch minus 0 inch on each side defines the required spacing between the drawer box and cabinet opening, which lets you size drawer widths to hit a consistent running fit. A height of 1-13/16 inch sets how much vertical space the slide occupies, which matters when positioning slides between drawer bottoms and cabinet rails in stacked drawer banks. Recommended fasteners are #7 x 1/2 inch Phillips truss head screws, so fastening points are chosen around that screw size during drilling and assembly.
The Knape and Vogt 8400P 18 drawer slides fall under side mount drawer slides, so they fit typical cabinet cases where slides attach to the cabinet sides and drawer sides. The 18 inch length suits cabinets built for medium-depth drawers, matching many base and utility cabinet dimensions. The 32 mm pattern on the slide aligns with 32 mm system boring, which supports frameless cabinets and any construction that follows this hole spacing. Non-handed design means each slide can serve either left or right positions, which streamlines inventory and simplifies allocation on site or in the shop. The anochrome finish works in general woodworking environments, so these slides integrate into many different cabinet lines without visual conflict. Being ball bearing slides places them in applications that need guided travel along a fixed path in everyday cabinet use.
The specified 1/2 inch side clearance with a tolerance of plus 1/32 inch and minus 0 inch on each side gives a clear target for drawer width relative to the opening, which supports consistent running clearances from cabinet to cabinet. Full extension design means the drawer can travel its 18 inch length, which helps when planning drawer depth so stored items are accessible without overbuilding the opening. The 1-13/16 inch slide height creates a known zone on the drawer side, which aids in standardizing your jig setups for marking or drilling pilot holes. Lever disconnect allows the drawer member to be separated from the cabinet member, which helps with finishing, transport, or later adjustments since drawers can be removed and reinstalled on the same hardware. The ball retainer latch helps retain the ball bearings in position, which supports smoother operation across repeated open and close cycles in daily cabinet use.
The 8400P 18 is a Knape and Vogt side mount, ball bearing drawer slide in the 8400 Series, which suits standard cabinet drawers needing guided, full-extension travel.
The 8400P 18 drawer slides use 1/2 inch side clearance plus 1/32 inch minus 0 inch on each side, which directly sets the target drawer box width for a given opening.
The 8400P 18 slide height is 1-13/16 inch, which defines how much vertical space the hardware occupies on the drawer side during layout.
The 8400P 18 is a full extension slide, so the 18 inch drawer can open its full length, helping provide access to the entire drawer interior.
The 8400P 18 drawer slide has a 32 mm pattern, which aligns with 32 mm cabinet construction and supports system-based drilling layouts.
The 8400P 18 uses recommended fasteners of #7 x 1/2 inch Phillips truss head screws, which guides screw selection and pilot hole sizing during installation.
Choosing the Knape and Vogt 18 inch drawer slides with full extension, side mount design, and 1/2 inch side clearance lets you base drawer box sizing on specific, published dimensions. The 32 mm pattern, 1-13/16 inch height, and lever disconnect together support repeatable layouts and straightforward service access across multiple cabinets. For projects planned around an 18 inch full extension slide, the 8400P 18 specification gives a defined hardware standard you can apply from design through final installation.
Sold In: 1 Set
Quantity | Unit Price | Catalog | ||||
|---|---|---|---|---|---|---|
Sold in: 1 Each | KV8404 Mfr# 8404 | Face Frame Bracket for 8400 Series Slides, Front Mount, Zinc | ||||
Sold in: 1 Each | KV8404-B Mfr# 8404B | Face Frame Bracket for 8400 Slides, Front-Mount, Zinc |
Quantity | Unit Price | Catalog | ||||
|---|---|---|---|---|---|---|
Sold in: 1 Each | KV8402 Mfr# 8402 | Rear Mounting Bracket for 8400 Series Slides, Zinc | ||||
Sold in: 1 Each | KV8401B Mfr# 8401 | Rear Mounting Bracket with Extended Rear Flange, Zinc Plated |
Quantity | Unit Price | Catalog | ||||
|---|---|---|---|---|---|---|
Sold in: 1 Each | KV8404-KIT Mfr# 8404B KIT | Face Frame Bracket kit for 8400 Series Slides, Zinc |
