Knape and Vogt 14 Inch Drawer Slide Use

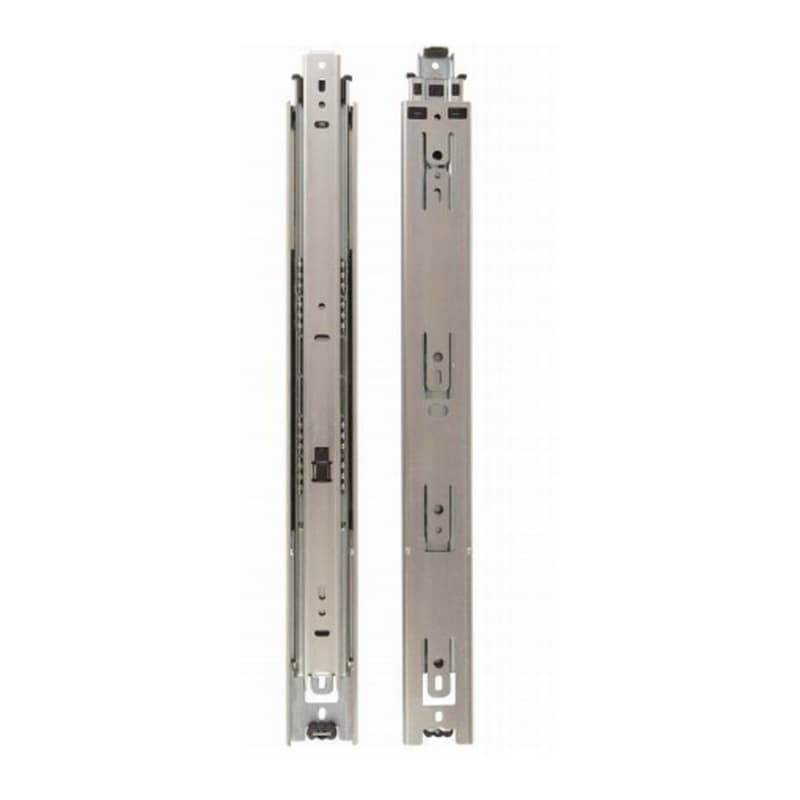

Knape and Vogt 14 inch drawer slide is a side mount, ball bearing, full extension slide from the 8400 Series, so the drawer can travel its full length for clear access to contents in cabinets or casework. The slide is part of the Side Mount Drawer Slides product class, which keeps mounting predictable for projects already built around this style. The finish is anochrome, which provides a clean, neutral appearance that blends with typical cabinet hardware layouts. This model is unhanded, so the same slide design works on either side of the drawer, simplifying layout and inventory on installs. The slide uses ball bearings, which support smooth motion along the travel path for repeatable opening and closing. The product is identified as Knape and Vogt Model #8400 with a 14 inch length, giving installers a defined fit target when matching cabinet depth and drawer box length.

Key Working Details For Drawer Slide Choice

• The 14 inch length defines how far the drawer can extend, which helps match slide travel to typical cabinet depths in residential or commercial casework.
• The side clearance is 1/2 inch plus 1/32 minus 0 inch on each side, so drawer box width can be sized precisely to maintain smooth travel without binding.
• The slide height is 1-13/16 inch, which matters when setting drawer box side heights and checking stack layouts in multi-drawer cabinets.
• The 32 mm pattern is present, so the slide aligns with 32 mm system drilling in cabinet sides, supporting faster layout in system-built carcasses.
• The finish is anochrome, so the slide offers a neutral metallic look that coordinates with typical cabinet hardware and shop standards.
• Features include lever disconnect, ball retainer latch, and non-handed design, which simplify drawer removal, keep bearings in place, and reduce left/right part variation during installation.

Mounting And Clearance Details For Installation

This Knape and Vogt 8400P 14 full extension drawer slide is a side mount design, so it fastens directly to the cabinet side and drawer side for straightforward alignment. The specified side clearance of 1/2 inch plus 1/32 minus 0 inch each side guides drawer box width, helping installers maintain a consistent gap that supports smooth ball bearing motion. The slide height of 1-13/16 inch influences how tall the drawer side panels can be, especially when stacking several drawers in a bank. A 32 mm pattern is provided, which fits well with cabinets drilled on a 32 mm system and supports repeatable hole positions. Recommended fasteners are #7 x 1/2 Phillips Truss Head, giving a clear screw size and head style that matches the slide mounting holes for reliable holding.

Drawer Slide Use And Workflow In Cabinet Builds

Where This 8400P 14 Slide Is Typically Used

The Knape and Vogt 8400P 14 full extension drawer slide is identified as a 14 inch long, side mount, ball bearing slide, which suits cabinet and drawer configurations that match that depth. The Side Mount Drawer Slides product class aligns with common kitchen, bath, and shop drawer construction that relies on side mounting instead of undermount hardware. A 32 mm pattern is present in the slide, fitting layouts built on the 32 mm cabinet system and allowing installers to tie slide positions into pre-drilled carcass rows. The specified side clearance of 1/2 inch plus 1/32 minus 0 inch each side gives a direct target when sizing drawer boxes to the cabinet opening, so the drawer can operate without excessive play. The unhanded design means one slide profile works on either side, keeping planning straightforward when organizing multiple pairs on the bench.

Details That Support Repeatable Fit And Replacement

The 8400 Series identification and manufacturer part number 8400P 14 provide a consistent reference when matching existing installations or planning future reorders, which supports predictable replacements. Full extension travel allows the drawer to move the entire 14 inch length, so installers can position slides knowing the user will see the full box depth during use. The ball bearing construction supports stable motion along the slide members, which matters when aligning components so the drawer feels consistent across its range. Lever disconnect is a built-in feature, so the drawer can be separated from the cabinet member along the slide path during installation or service without disturbing cabinet layout. A ball retainer latch is also listed, which holds the bearing retainer in place within the slide assembly, supporting durability of the motion path during repeated openings. The non-handed design reduces configuration steps during installation, because there is no need to sort left and right members for each side of the drawer.

Common Questions About This Knape And Vogt Slide

Selecting This 14 Inch Full Extension Slide

The Knape and Vogt 14 inch drawer slide 8400P 14 combines full extension travel, side mount configuration, and a defined side clearance of 1/2 inch plus 1/32 minus 0 inch, giving installers precise build targets. The 1-13/16 inch height and 32 mm pattern support integration into system-drilled cabinets and planned drawer stacks. With features such as lever disconnect, ball retainer latch, and non-handed construction, this anochrome ball bearing slide fits workflows that value clear references and straightforward installation steps.
