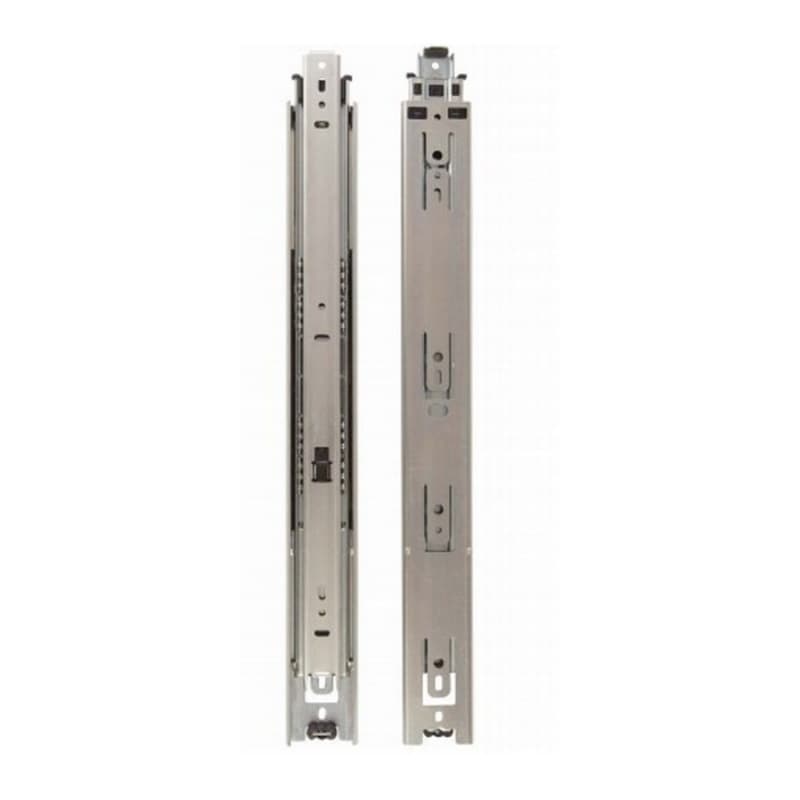

Knape and Vogt 28 inch drawer slides in the 8400P 28 model give a 28 inch length, so drawers travel a matching distance for full extension access in cabinet projects. The 1/2 inch plus or minus 1/32 inch side clearance per side defines the opening size, which helps installers size cabinet cases so drawers run smoothly without binding. A height of 1-13/16 inch sets the profile of the slide, which matters when stacking multiple drawers or working inside shallow cabinets. The anochrome finish identifies the surface treatment, which keeps the appearance consistent with other anochrome components on the job. As a side mount drawer slide, the 8400 Series fits applications built around side-mounted hardware, aligning with common shop layouts and jigs for this product class.
This Knape and Vogt 8400P 28 full extension slide is identified as a side mount drawer slide, so it seats along the drawer sides and cabinet interior walls in a matching layout. The 1/2 inch plus or minus 1/32 inch side clearance per side defines the gap between drawer and cabinet, which lets builders dimension drawer widths to fill the opening while respecting smooth travel. A 1-13/16 inch height sets the vertical space used by the slide, which affects where to place drawer bottoms and runners in the cabinet design. Recommended fasteners are #7 x 1/2 inch Phillips truss head screws (BST1/2X7-2C), which gives installers a specified screw type when fastening the slide to wood components.
The Knape and Vogt 8400 28 inch length slide serves in side mount drawer slide applications, so it fits cabinet jobs that call for ball bearing side mounts rather than other slide classes. Its 28 inch length suits drawers designed around that depth, which keeps the slide travel aligned with common cabinet carcass dimensions. The 1/2 inch plus or minus 1/32 inch side clearance per side works in cabinet openings sized for that clearance standard, which helps drafters and CNC programmers plan consistent drawer widths across a project. A 1-13/16 inch height provides a moderate slide profile, which can coordinate with face frame or frameless designs that reserve space along the drawer side for hardware. The anochrome finish marked in the description keeps the slide visually in line with other anochrome-finished drawer components in a shop inventory.
The full extension function on this 8400 Series slide matches the 28 inch length, so finished drawers open to expose the full box depth, which supports layouts where users need clear access to stored contents. Ball bearing operation along the slide path helps the drawer track on defined races, which limits side play that can interfere with clearances set by the 1/2 inch plus or minus 1/32 inch specification. The hold-in anti-rebound feature moderates the drawer at the rear of travel, which keeps the closed position stable when cabinets are in normal service. A lever disconnect function lets installers separate drawer and cabinet members, which simplifies attaching each member squarely to its mounting surface and speeds changeout when reworking drawers. The ball retainer latch maintains bearing placement during use, which protects the slide action that installers rely on once clearances and heights are set. An unhanded slide layout means the same Knape and Vogt 8400P 28 part number serves both sides, which streamlines picking and reduces sorting steps during production.
The Knape and Vogt 8400P 28 is a side mount, ball bearing, full extension drawer slide, which suits cabinet designs built for side-mounted ball bearing hardware.
The 8400P 28 slide uses 1/2 inch plus or minus 1/32 inch side clearance per side, which guides drawer width planning relative to the cabinet opening.
The Knape and Vogt 8400P 28 has a height of 1-13/16 inch, which affects vertical spacing when stacking multiple drawers in a cabinet.
The 8400P 28 slide has a lever disconnect, which lets installers separate drawer and cabinet members to ease mounting and removal.
The 8400P 28 slide specifies #7 x 1/2 inch Phillips truss head screws BST1/2X7-2C, which gives a defined screw size and head style for installation.
The Knape and Vogt 8400P 28 is described as non-handed, so the same slide configuration works on both left and right sides.
The Knape and Vogt 8400P 28 combines a 28 inch full extension length, 1-13/16 inch height, and 1/2 inch plus or minus 1/32 inch side clearance per side, so cabinet and drawer dimensions can be planned around fixed numbers. With side mount configuration, ball bearing action, hold-in anti-rebound, lever disconnect, ball retainer latch, unhanded design, and anochrome finish, this slide provides a defined hardware choice for projects suited to these specifications.
Sold In: 1 Set
Quantity | Unit Price | Catalog | ||||
|---|---|---|---|---|---|---|
Sold in: 1 Each | KV8402 Mfr# 8402 | Rear Mounting Bracket for 8400 Series Slides, Zinc | ||||
Sold in: 1 Each | KV8401B Mfr# 8401 | Rear Mounting Bracket with Extended Rear Flange, Zinc Plated |
Quantity | Unit Price | Catalog | ||||
|---|---|---|---|---|---|---|
Sold in: 1 Each | KV8404-KIT Mfr# 8404B KIT | Face Frame Bracket kit for 8400 Series Slides, Zinc |
Quantity | Unit Price | Catalog | ||||
|---|---|---|---|---|---|---|
Sold in: 1 Each | KV8404 Mfr# 8404 | Face Frame Bracket for 8400 Series Slides, Front Mount, Zinc | ||||
Sold in: 1 Each | KV8404-B Mfr# 8404B | Face Frame Bracket for 8400 Slides, Front-Mount, Zinc |
