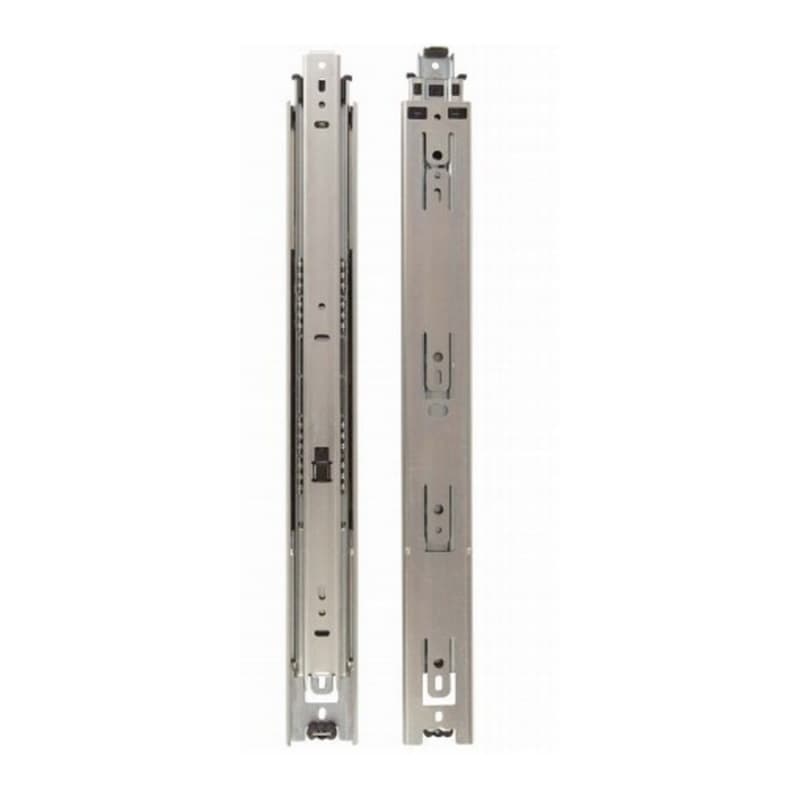

Knape And Vogt 22 Inch Drawer Slides For Smooth Access

Knape and Vogt 22 inch drawer slides are 8400 Series full extension side mount ball bearing slides, so drawers can travel their full length for clear access to contents during use. The slides are classified as side mount drawer slides, which positions them along the cabinet sides and matches common shop construction methods for casework. A hold-in anti-rebound feature is referenced in the product name, indicating design intent to resist the drawer drifting back out after closing in typical cabinet use. The slides are non-handed, so the same member profiles work on either side of the drawer and cabinet and simplify layout and stocking. Height is specified at 1-13/16 inches, which helps installers confirm stack layouts and clearances in multi-drawer banks. The product is identified as Knape and Vogt Model 8400P 22, giving a clear reference when matching existing installations or project specifications.

Key Drawer Slide Details That Support Projects

• The 22 inch length specified for the 8400P 22 slide supports standard cabinet depths, so typical kitchen or shop drawers can open fully while staying guided by the ball bearing members.
• The 1/2 inch plus or minus 1/32 inch side clearance per side allows designers to size drawer boxes predictably, which streamlines repeatable cabinet construction and fitting.
• The 1-13/16 inch overall height provides a known profile size, so installers can plan vertical spacing between drawers and confirm rail and stretcher positions.
• The side mount, ball bearing design places the slide on cabinet sides and uses ball bearing action, which supports smooth guided travel where wood-on-wood runners are not desired.
• The anochrome finish is specified, providing a uniform metal appearance that can coordinate with other cabinet hardware components in the same finish family.
• The slide is listed as non-handed, so the same part can be used on left and right sides, reducing part number complexity during layout and installation.

Side Mount Drawer Slide Fit And Clearance Details

The KV Model 8400P 22 slide is defined as a side mount ball bearing drawer slide, so it mounts directly to cabinet sides and the drawer box. Side clearance is specified as 1/2 inch plus 1/32 inch minus 0 inch on each side, which sets a clear target gap between drawer and cabinet for the ball bearing members to operate correctly. Height is listed at 1-13/16 inches, helping installers align slide positions with drawer box side heights and any adjacent hardware. The recommended fasteners are #7 x 1/2 inch Phillips truss head, tying the slide to a known screw style and size for planning drilling patterns. The non-handed designation means the same slide sections serve both left and right sides, which can simplify layout in production or jobsite settings where orientation can change.

Using 8400P 22 Slides In Cabinet And Shop Work

Where These 22 Inch Slides Are Typically Applied

The Knape and Vogt 8400P 22 full extension slide is a side mount drawer slide in the Drawer Slides & Accessories category, so it aligns with cabinet and casework applications that use side-mounted hardware. The 22 inch length suits cabinets built around common depths, allowing drawers to extend fully so contents are accessible without overtravel. The 1/2 inch plus or minus 1/32 inch side clearance spec gives cabinetmakers a reliable dimension when sizing drawer boxes relative to the opening. A 1-13/16 inch slide height works with many standard drawer side heights, letting builders place slides where the metal members sit within the drawer side profile. Anochrome finish gives the slide a consistent metal appearance, which can be important on exposed or semi-exposed installations such as shop furniture, utility cabinets, or service areas.

Details That Support Consistent Installation Results

The 8400 Series slide is described with a 32 mm pattern, signaling alignment with 32 mm system boring layouts that are common in modular cabinet construction. This pattern lets production shops and detailed DIY builders coordinate slide locations with pre-bored rows for efficient assembly. Features listed for the model include a lever disconnect, so drawer members can be separated from cabinet members, which aids in fitting, removal, or adjustments during finishing and service. A ball retainer latch is noted, helping to retain the ball bearing elements during use and when members are separated. The non-handed design also supports simpler installation sequencing, because installers do not need different parts for each side. The recommended #7 x 1/2 inch Phillips truss head fasteners tie the slide to a specific screw head style and length, which supports consistent seating in the slide holes and helps maintain alignment along the full extension travel.

Practical Questions About Knape And Vogt 8400P 22 Slides

Selecting 8400P 22 Slides For Your Next Build

The Knape and Vogt 8400P 22 anochrome full extension side mount slide pairs 22 inch length, 1/2 inch plus or minus 1/32 inch side clearance, and 1-13/16 inch height for predictable drawer box sizing. A 32 mm pattern and non-handed design support efficient cabinet construction in both professional shops and serious DIY projects. Lever disconnect, ball retainer latch, and ball bearing construction work together to support assembly, removal, and guided movement in everyday cabinet use. For projects that specify Knape and Vogt 8400 Series side mount drawer slides at 22 inches, this 8400P 22 model aligns the documented dimensions and features with practical cabinet and drawer layouts.
