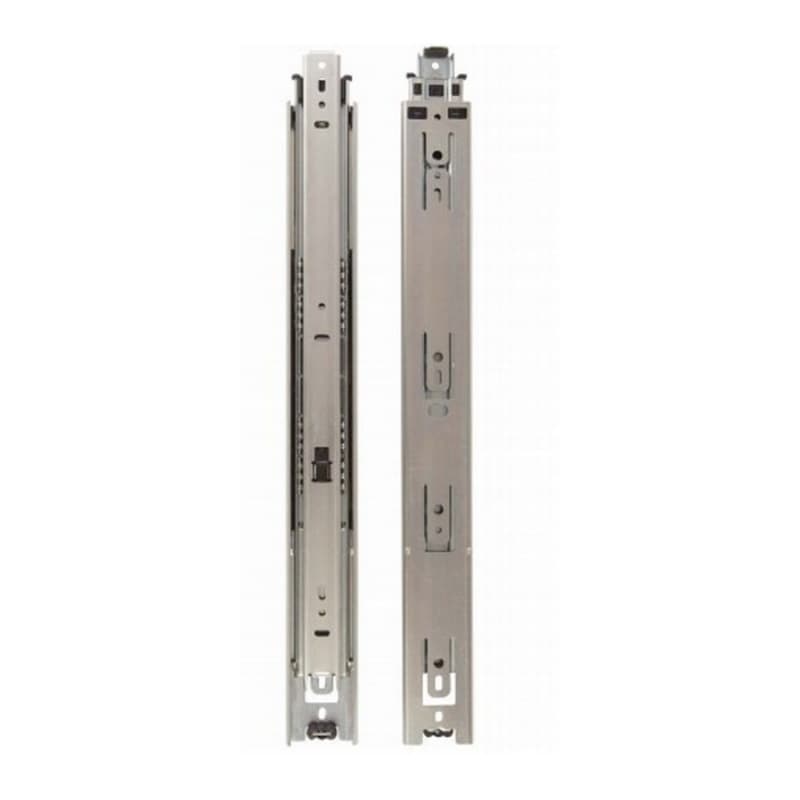

KV8400 20" Full Extension Hold-in anti-rebound Ball Bearing Drawer Slides, Unhanded Side Mount Zinc Poly-Pack - 8400P 20

Knape And Vogt 8400P 20 Drawer Slides Explained

Knape and Vogt 8400P 20 drawer slides use a 20 inch length full extension design, so the drawer can pull completely out of the cabinet opening for full access to stored items during regular use. This 8400 series slide is a side mount ball bearing drawer slide, which supports smooth, guided movement along the cabinet member for consistent drawer travel. The slide is part of the Knape and Vogt 8400 series, so it follows a known pattern for installers working across multiple cabinets or repeat projects. An anochrome finish is applied to the slide, providing a zinc-based surface that matches the SAP description for use in cabinet environments. The Web Description identifies this as a hold-in anti-rebound ball bearing drawer slide, which helps the drawer stay in the closed position and resist bounce-back in typical cabinet use. The slide is described as unhanded, so the same slide works on either side of the drawer, simplifying orientation during layout.

Key 8400P 20 Features For Cabinet Projects

• The Web Description lists this as a full extension slide, so the drawer travels the full slide length to expose the contents clearly during routine access and loading.
• The slide is a side mount drawer slide, giving installers a familiar mounting style along the cabinet sides for framed or frameless layouts that use side mounting.
• Ball bearing construction is specified, which supports smooth linear motion between the drawer member and cabinet member under typical drawer loads.
• A hold-in anti-rebound function is identified in the product name, helping the drawer remain closed against minor bumps in everyday operation.
• The description notes a non-handed design, allowing the same slide part to be used on left and right sides to reduce sorting and orientation steps.
• The anochrome zinc finish matches the SAP description, providing a consistent metallic appearance suited to concealed cabinet hardware locations.

Side Mount Drawer Slide Fit And Dimensions

The Web Description calls this a side mount design, so the slide runs along each cabinet side and the drawer side to guide the box. Side clearance is listed as 1/2 inch plus 1/32 inch minus 0 inch on each side, defining the required gap between the drawer and cabinet for proper slide operation. Height is specified as 1-13/16 inch, so the slide occupies that vertical space on the drawer side, which matters when planning drawer box heights and stack spacing. The description also states a 32 mm pattern, indicating the hole pattern aligns with 32 mm system drilling, which supports layout on cabinet cases that follow that system.

Using 8400 Series Slides In Real Cabinets

Where These 8400 Series Slides Are Applied

The Category lists this product under Drawer Slides & Accessories and Side Mount, Ball Bearing Slides, placing it in typical cabinet and drawer applications where side mounting is preferred. As a side mount drawer slide, the 8400P 20 installs along the drawer and cabinet sides, which suits many kitchen, bath, and shop drawer layouts that are built for side clearance. The 20 inch length aligns with drawer depths that match or slightly exceed that measurement, so it fits cabinets designed for that slide length. The 32 mm pattern callout supports use in cabinets drilled on 32 mm centers, which is common in system-built casework. Because the slide is non-handed, one product reference works for both left and right sides, simplifying stocking and layout in production shops handling multiple cabinets in one run.

Details That Support Repeatable Installation Results

The stated side clearance of 1/2 inch plus 1/32 inch minus 0 inch each side gives a clear target for drawer box sizing relative to the cabinet opening, supporting consistent fit across multiple drawers. The slide height of 1-13/16 inch defines how much vertical area the slide occupies, which helps set drawer box positions so neighboring drawers do not interfere. Full extension travel lets the drawer face move completely forward along the 20 inch length, which simplifies access to the rear of the drawer and helps during fitting and adjustment. The lever disconnect feature, listed in the Web Description, allows the drawer member to be separated from the cabinet member, which aids in installing the members to the case and drawer separately. A ball retainer latch is also specified, helping keep the ball bearings in position during handling and installation for smoother action once mounted. The recommended fasteners are #7 x 1/2 inch Phillips Truss Head, tying the slide to a specific screw size and head style that matches the mounting holes for secure fastening.

Common Questions About Knape And Vogt 8400P 20 Slides

Selecting The 8400P 20 For Your Next Drawer Run

The Knape and Vogt 8400P 20 drawer slides combine full extension travel, side mount ball bearing action, and a defined 1/2 inch plus 1/32 inch minus 0 inch side clearance for predictable drawer fitting. With a 1-13/16 inch height and 32 mm pattern, these anochrome zinc slides align with common cabinet dimensions and system drilling. The unhanded design, lever disconnect, ball retainer latch, and specified #7 x 1/2 inch Phillips Truss Head fasteners support efficient installation across multiple drawers. For projects calling for 20 inch side mount slides in the 8400 series family, this model provides the measurements and features needed for repeatable cabinet work.
