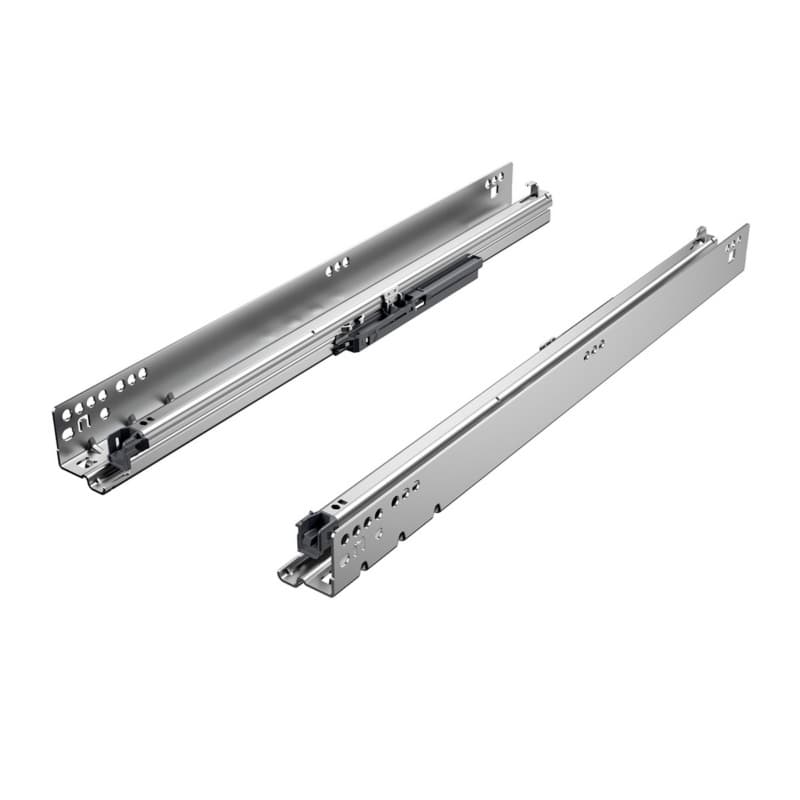

Hettich Quadro V6 9" Soft-Close Full Extension Undermount Drawer Slides, Ball Bearing Left hand Zinc - 9304255

Hettich Quadro V6 Undermount Slide For 9 Inch Drawer

Hettich Quadro V6 9 inch undermount slide defines this 9 inch soft-close, full extension undermount drawer slide as a left hand component built for precision drawer movement. The slide on installation design lets the drawer engage the slide with a direct, guided motion, which supports repeatable mounting on production runs or multiple drawers. The full extension function allows the drawer to travel its complete length, so the usable interior is accessible without hidden areas at the back that slow work on site or in the shop. The soft-close action is created by an integrated damping system, which slows the last part of closing, reducing slamming and helping protect drawer fronts and joinery from impact over time. This slide belongs to the Hettich Quadro V6 family, so it follows a proven undermount platform that installers can match with right hand components in the same series.

Key Quadro V6 Details That Support Daily Use

• The integrated damping system builds soft-close performance into the slide, so closing force is controlled at the end of travel, which reduces noise and helps protect cabinet construction in busy environments.
• Silent System technology is part of this slide design, so movement is engineered for quiet running, which matters in kitchens, baths, and workspaces where noise control improves comfort.
• Full extension travel allows the drawer to open to its full length, so tools, supplies, or stored items at the back are accessible without reaching around the drawer box during regular use.
• Galvanized steel construction is specified as suitable for rooms exposed to moisture, so the slide material supports use in areas such as kitchens, baths, or utility spaces where humidity is present.
• Designed for narrow applications, this slide can fit tighter cabinet layouts, which helps when designing or retrofitting small-width drawers into constrained casework runs.

Installation Functions For Accurate Undermount Fit

The slide on installation approach allows the drawer to be positioned on the undermount slide with a guided motion, which supports consistent engagement along the runner. Front fixing clips are part of the installation concept, providing a defined front connection point that helps hold the drawer front in alignment relative to the cabinet face. Tool-less height adjustment operates at the front, so the vertical position of the drawer front can be changed without separate tools, which can speed up fine-tuning on multi-drawer installations. Side adjustment up to plus or minus 2 mm is available through the 2D front fixing clips, so the drawer front can be shifted sideways within that range to align margins and reveals across a bank of drawers.

How This Left Hand Undermount Slide Works In Projects

Use In Face Frame And Frameless Cabinet Layouts

This undermount drawer slide is specified for face frame or frameless applications, so it can be used across common cabinet construction methods without changing slide models between jobs. For face frame cabinets, the slide design supports mounting that ties the runner position to the frame structure, which keeps the drawer box supported from beneath while maintaining the frame reveal. For frameless cabinets, the same slide can be aligned directly to the cabinet sides, maintaining a consistent runner line across each opening. The slide is engineered for 1/2 inch, or 13 mm, and 5/8 inch, or 16 mm, drawer side thicknesses, so it supports two standard construction options for wooden drawer boxes within the same project line. This flexibility lets a shop standardize on Quadro V6 while choosing between those side thicknesses.

Load Rating, Adjustment, And Moisture Suitability In Practice

This Hettich Quadro V6 slide meets or exceeds ANSI/BHMA 156.9 grade 1 requirements, so its performance has been evaluated to a recognized standard, which supports confidence when it is specified for demanding residential or commercial drawers. The load capacity is listed as up to 90 lbs dynamic and 100 lbs static on a 21 inch length slide as per the same ANSI/BHMA specification, indicating the series is engineered to handle substantial stored weight during motion and at rest. While this specific part is a 9 inch slide, the shared grade 1 rating across the series shows how the design approach supports load handling across various lengths. Galvanized steel construction is described as suitable for rooms exposed to moisture, so this material choice supports use in spaces where humidity or occasional dampness is present, such as kitchens, baths, or utility areas. The 2D front fixing clips provide side adjustment up to plus or minus 2 mm, which helps align drawer fronts in relation to adjacent fronts and cabinet edges, reducing visible gaps that can otherwise lead to rework. Tool-less height adjustment at the front lets installers shift the drawer front vertically during final setup, making it easier to create even reveals across a stacked drawer configuration without dismounting components.

Common Questions About This Hettich Quadro Slide

Selecting This Quadro V6 Slide For Your Project

This Hettich Quadro V6 9 inch soft-close, full extension undermount drawer slide from Wurth Baer Supply combines slide on installation, integrated damping, and Silent System performance to support smooth, quiet drawers. With support for 1/2 inch and 5/8 inch drawer side thicknesses and use in face frame or frameless applications, it fits a wide range of cabinet designs. Choosing the 9304255 left hand galvanized steel slide positions your project to leverage ANSI/BHMA 156.9 grade 1 performance in narrow applications and rooms exposed to moisture.
