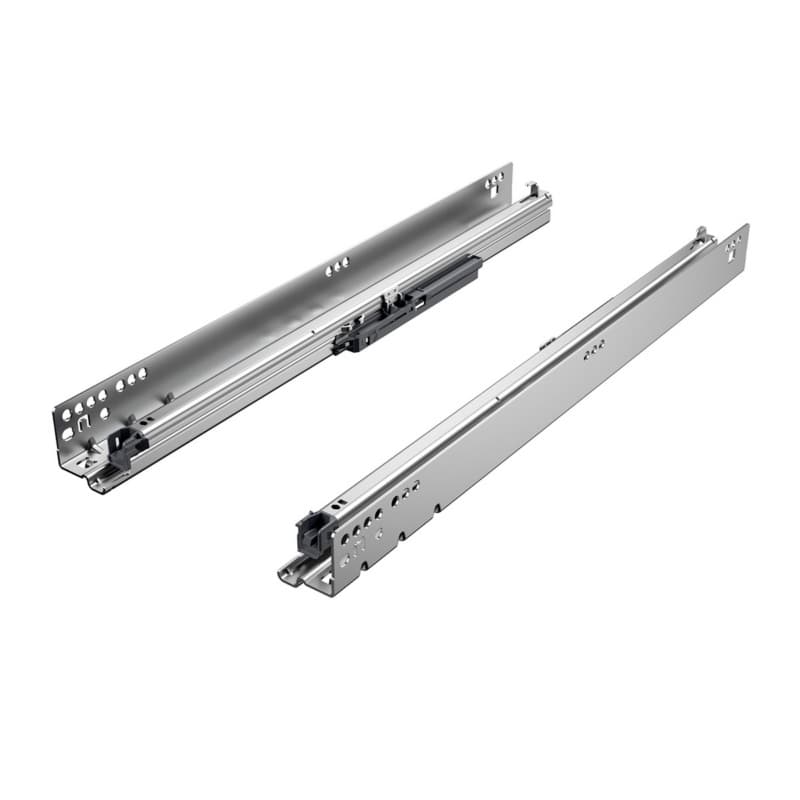

Hettich Quadro V6 Undermount Drawer Slides For Smooth Use
Hettich Quadro V6 undermount drawer slides provide soft-close, full-extension performance, so drawers travel fully open while closing gently, which supports quiet, controlled operation in finished cabinetry. This 18 inch left-hand slide uses a ball bearing design, so the running action stays consistent along the entire travel length, which helps drawers feel solid under load. The slide is built as an undermount model, so it stays concealed beneath the drawer box, which preserves a clean cabinet interior and front appearance. An integrated damping system provides the soft-close function, so the drawer is pulled in smoothly at the end of travel, which is useful in residential and commercial environments where controlled closing is important. The slide belongs to the Hettich Quadro V6 system, so it works with matching Quadro components, which supports standardized hardware choices across multiple cabinet runs.
Key Drawer Slide Details That Support Your Work
- Slide on installation with front fixing clips speeds up mounting at the cabinet, as the drawer can be hooked onto the slide rather than set on top, which helps during repeat installs.
- Tool-less height adjustment at the front fixing clips lets the drawer front be moved vertically without tools, which simplifies aligning reveals across a bank of drawers.
- Side adjustment up to plus or minus 2 mm through the 2D front fixing clips provides lateral tuning, which helps dial in even gaps and smooth closing against adjacent fronts.
- Load capacity up to 90 lbs dynamic and 100 lbs static, as per ANSI/BHMA 156.9 grade 1 on a 21 inch slide, gives a tested performance benchmark, which supports use in duty-rated cabinetry.
- Galvanized steel construction is described as suitable for rooms exposed to moisture, which makes this slide appropriate for locations such as kitchens or similar indoor spaces.
- Design noted as suitable for narrow applications allows use where cabinet or drawer widths are restricted, which can be important in tighter layouts.
Installation And Fit Details For This Undermount Slide
This Hettich Quadro V6 18 inch left-hand undermount slide uses a slide on installation method with front fixing clips, so the drawer is connected through those clips, which streamlines the mounting step. The front fixing clips provide tool-less height adjustment and side adjustment, so both vertical and lateral positions can be tuned at the front, which is helpful for setting reveals without re-drilling cabinet parts. The slide is specified for 1/2 inch (13 mm) or 5/8 inch (16 mm) drawer side thickness, so drawer boxes built to those side dimensions match the interface, which keeps the undermount engagement reliable. The product is listed as suitable for face frame or frameless applications, so it can be applied across both common cabinet construction styles, which supports consistent hardware across a mixed project.
Using This Hettich 9304271 Slide In Cabinet Projects
Applications In Face Frame And Frameless Cabinets
The Hettich Quadro V6 18 inch soft-close full-extension undermount drawer slide is specified for both face frame and frameless applications, so one slide type can serve different cabinet box constructions, which simplifies hardware planning across kitchens, baths, or shop furniture. Its undermount configuration keeps the runner hidden beneath the drawer, so even when drawers are open the hardware remains out of view, which supports clean-lined cabinet designs. The slide is designed for 1/2 inch or 5/8 inch drawer side thickness, so drawer boxes built in those common material sizes can be paired directly with the slide, which helps standardize panel cutting and machining. Suitability for narrow applications gives a way to use this slide where cabinet or drawer widths are more constrained, which can matter in tight alcoves or compact storage areas. The product is described as made from galvanized steel and suitable for rooms exposed to moisture, so it aligns with typical kitchen or bath environments where humidity levels can fluctuate, which supports consistent operation over time.
Adjustment, Extension, And Performance In Daily Use
This Hettich 9304271 slide delivers full extension, so drawers can be pulled out to access the entire interior, which is useful when storing smaller items at the back of the box. Its integrated damping system, referred to as Silent System, slows and softens the closing motion, so the drawer is drawn into the cabinet quietly, which benefits multi-drawer runs in homes or workspaces where noise control is valued. The ball bearing design supports smooth travel along the length of the 18 inch slide, which helps maintain a solid feel even when building heavier storage drawers within the rated capacity range. The front fixing clips built into the Quadro V6 system provide tool-less height adjustment and side adjustment up to plus or minus 2 mm, so face alignment can be tuned precisely at the front of the drawer, which reduces rework when matching adjacent fronts. The slide is stated to meet or exceed ANSI/BHMA 156.9 grade 1 requirements at up to 90 lbs dynamic and 100 lbs static load on a 21 inch length, so the system carries a defined performance standard, which can be referenced when selecting hardware for duty-rated cabinetry.
Common Questions About This Quadro V6 Drawer Slide
What type of drawer slide is the Hettich 9304271?
The Hettich 9304271 is an 18 inch left-hand Quadro V6 soft-close full-extension undermount drawer slide, so it mounts beneath the drawer and provides concealed, full-travel motion.
Which drawer side thicknesses work with this slide?
The Hettich Quadro V6 18 inch slide is specified for 1/2 inch (13 mm) or 5/8 inch (16 mm) drawer side thickness, so drawer boxes using those material sizes match the undermount geometry.
Can this Quadro V6 slide be used in face frame cabinets?
The Hettich Quadro V6 undermount slide is described as suitable for face frame or frameless applications, so it can be applied in both cabinet construction styles within its specifications.
How does the soft-close function work on this slide?
The Hettich Quadro V6 slide uses an integrated damping system called Silent System, so the drawer is slowed and pulled in gently at the end of travel for controlled closing.
What load capacity does this Hettich slide support?
The Quadro V6 system is specified with load capacity up to 90 lbs dynamic and 100 lbs static on a 21 inch length slide under ANSI/BHMA 156.9 grade 1, giving a defined performance level.
Is this undermount slide suitable for damp indoor rooms?
The Hettich Quadro V6 slide is made from galvanized steel and described as suitable for rooms exposed to moisture, aligning with typical indoor locations such as kitchens or similar spaces.
Selecting This Slide For Your Drawer Project
This Hettich Quadro V6 18 inch soft-close full-extension undermount drawer slide brings together slide on installation, front fixing clips, and tool-less height and side adjustment, so drawer fronts can be aligned accurately with less bench time. Its specification for 1/2 inch or 5/8 inch drawer sides, suitability for face frame or frameless cabinets, and galvanized steel construction suitable for rooms exposed to moisture make it a practical choice for many kitchen, bath, or storage installations. Choosing this left-hand 9304271 slide where an 18 inch Quadro V6 undermount is required helps keep hardware selections consistent throughout a project.
