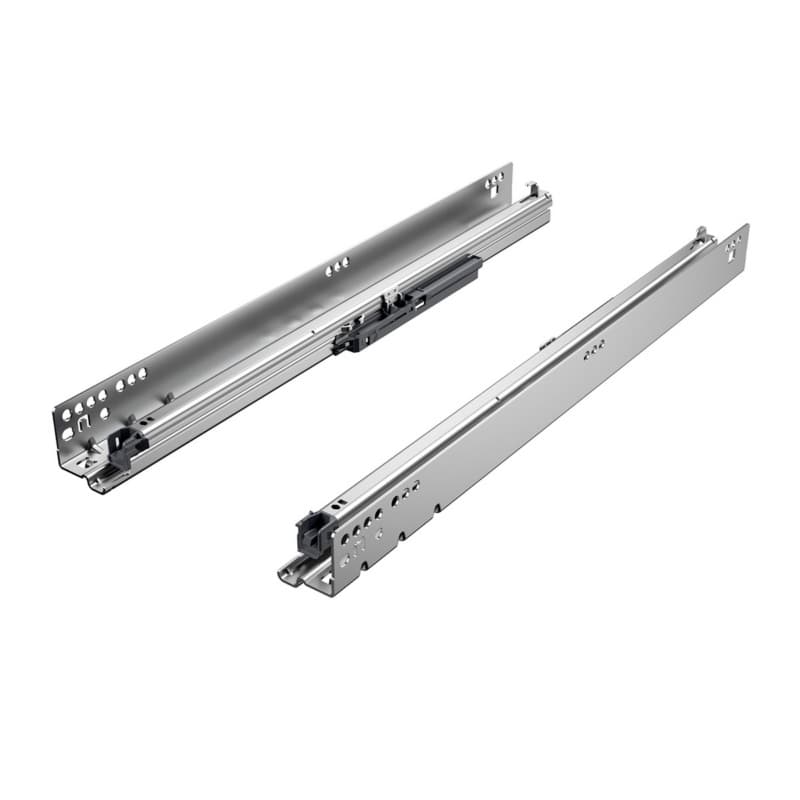

Hettich Quadro V6 15" Soft-Close Full Extension Undermount Drawer Slides, Ball Bearing Right hand Zinc - 9304262

Hettich Quadro V6 Drawer Slide For Smooth Undermount Action

Hettich Quadro V6 drawer slide is a 15 inch soft-close full extension undermount drawer slide that supports precise drawer movement in cabinet projects. The right hand configuration guides the drawer on one side of the undermount system, which helps maintain alignment under load. The integrated damping system Silent System slows the closing action so drawers settle quietly, which matters in residential or commercial spaces where noise control is important. Slide on installation with front fixing clips speeds up mounting because the slide engages the drawer without complex adjustments at the rail. Tool-less height adjustment lets you fine tune drawer front position at the clip, saving time during final alignment. Galvanized steel construction is suitable for rooms exposed to moisture, which supports use in kitchens, baths, or utility areas where humidity is present.

Key Drawer Slide Details That Support Cabinet Work

• Soft-close full extension action lets drawers travel the full length while the integrated damping system Silent System controls closing, which helps prevent slamming and reduces wear on drawer fronts.
• Slide on installation with front fixing clips allows the drawer to engage the undermount slide quickly, which helps streamline assembly on repetitive cabinet runs.
• Tool-less height adjustment built into the system lets you move the drawer front vertically without separate tools, which speeds up fine tuning reveals across a bank of drawers.
• Side adjustment up to plus or minus 2 mm with 2D front fixing clips gives lateral tuning at the front, which helps align gaps between adjacent drawer fronts or neighboring doors.
• Design for 1/2 inch (13 mm) or 5/8 inch (16 mm) drawer side thickness supports common drawer box constructions, which simplifies material planning in the shop.
• Use in face frame or frameless applications means the same undermount slide can be applied across different cabinet constructions, which supports standardized hardware choices.
• Galvanized steel, suitable for rooms exposed to moisture, offers resistance to corrosion in damp environments, which matters in kitchens, bathrooms, or laundry areas.

Installation And Adjustment Details For Precise Fit

Soft-close full extension undermount design places the slide beneath the drawer, which frees the cabinet sides from visible hardware and supports clean interior lines. Slide on installation with front fixing clips lets the drawer box connect to the right hand slide in a single motion, which helps maintain consistent positioning from cabinet to cabinet. Tool-less height adjustment built into the system lets you raise or lower the drawer front after installation, which reduces rework when reveals need tightening. Side adjustment up to plus or minus 2 mm with 2D front fixing clips lets you shift the drawer front sideways at the cabinet face, which is useful for dialing in narrow gaps. The right hand configuration works as part of a paired undermount system, helping support the drawer under dynamic loads.

Using This Undermount Slide In Cabinet Projects

Where This Hettich Quadro V6 Slide Performs Best

The Hettich Quadro V6 15 inch soft-close full extension undermount drawer slide is designed for drawers built with 1/2 inch (13 mm) or 5/8 inch (16 mm) drawer side thickness, which fits many standard cabinet drawer constructions. Design for face frame or frameless applications means this slide can be used across different cabinet lines, from traditional framed boxes to frameless systems, which supports consistent motion hardware in mixed projects. Load capacity up to 90 lbs dynamic and 100 lbs static, as per ANSI/BHMA 156.9 grade 1 specification on a 21 inch length slide, indicates performance tested to a recognized standard, which matters when drawers carry heavier contents. Galvanized steel material suitable for rooms exposed to moisture supports installation in kitchens, bathrooms, and other damp areas, which keeps the undermount mechanism appropriate for typical woodworking environments.

Adjustment Features That Support Repeatable Drawer Results

The integrated damping system Silent System in this soft-close full extension slide controls closing speed, which helps avoid rebounding drawers and improves consistency across a bank of cabinets. Slide on installation with front fixing clips creates a defined engagement point between drawer and right hand slide, which supports repeatable positioning when building multiple units. Tool-less height adjustment allows vertical changes at the front fixing clips, so reveal corrections can be handled directly at the hardware, which reduces time spent disassembling drawers for minor tweaks. Side adjustment up to plus or minus 2 mm with 2D front fixing clips gives fine lateral control, which is important when aligning fronts flush to neighboring components or to appliance panels. For narrow applications, the undermount design fits into constrained cabinet spaces while still providing soft-close full extension movement, which keeps access and function even when space is limited.

Common Questions About This Hettich 9304262 Slide

Selecting This Slide For Your Drawer Application

The Hettich Quadro V6 15 inch soft-close full extension undermount drawer slide, right hand, combines slide on installation, tool-less height adjustment, and side adjustment up to plus or minus 2 mm, which supports accurate drawer alignment. Design for face frame or frameless applications and drawer side thicknesses of 1/2 inch (13 mm) or 5/8 inch (16 mm) ties this slide to common cabinet standards. Load capacity up to 90 lbs dynamic under ANSI/BHMA 156.9 grade 1 specification indicates robust testing. For cabinet projects needing quiet action and precise reveals, this galvanized steel undermount slide offers a specification set oriented to professional woodworking environments.
