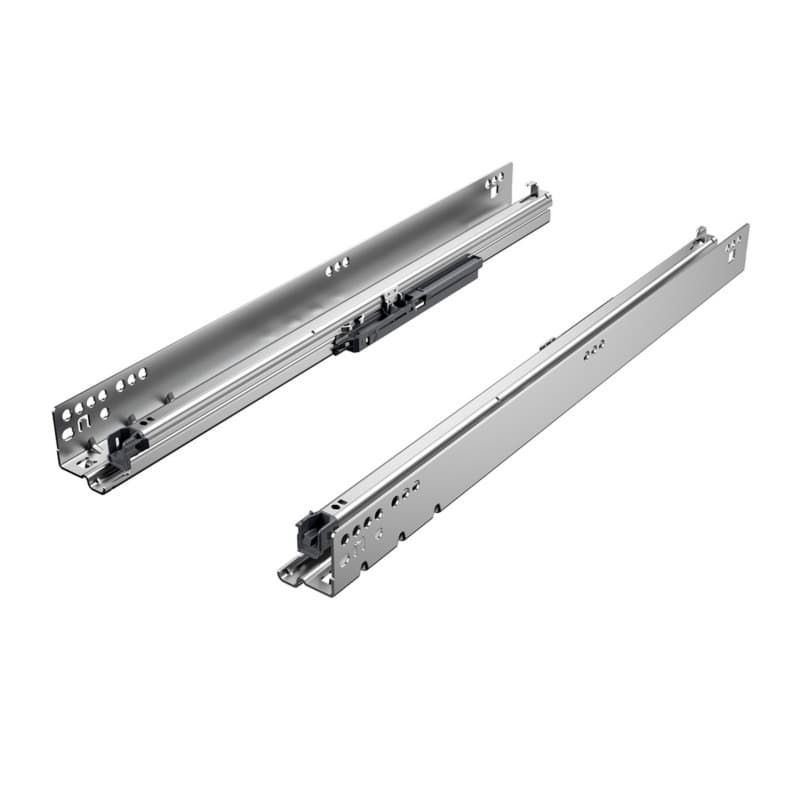

Hettich Quadro V6 24 Inch Undermount Slide Use
Hettich Quadro V6 24 inch undermount slide is a left hand, soft-close, full extension drawer slide that supports drawers needing smooth travel and controlled closing. The integrated damping system Silent System slows the drawer during closing, which reduces slamming and helps protect fronts and cabinet joinery from impact wear in repeated use. Full extension travel lets the drawer open the full length of the slide, giving access to the entire drawer depth for storage in deeper 24 inch applications. This slide on installation design uses front fixing clips, so the drawer can be fitted onto the undermount runners in a direct sliding motion that supports efficient assembly on site or in the shop. The slide is designed for 1/2 inch or 5/8 inch side thickness drawers, which defines the box construction range and supports consistent drawer sizing across a run.
Key Functional Details For Drawer Projects
- The slide on installation with front fixing clips lets the drawer connect to the undermounts without complex fastener alignment, which can shorten layout time and support repeatable drawer positioning across multiple cabinets.
- The integrated damping system Silent System provides the soft-close action inside the runner, which means the closing control is built into the slide and supports a smooth feel for residential or commercial casework.
- Side adjustment up to plus or minus 2 mm with the 2D front fixing clips allows the drawer front to shift laterally relative to the cabinet, which helps align reveals between adjacent fronts during final installation.
- Tool-less height adjustment at the front clips lets the installer move the drawer front vertically without separate tools, which supports precise gap control between fronts and adjacent components after mounting.
- Design for 1/2 inch (13 mm) or 5/8 inch (16 mm) drawer side thickness sets clear material options for drawer box construction, which simplifies planning for parts lists, machining programs, and production workflows.
- Face frame or frameless application suitability allows the same slide model to be used across different cabinet construction styles, which can reduce SKU variation in the shop for both kitchen and built-in projects.
Mounting, Adjustment, And Load Rating Details
The undermount slide configuration places the Quadro V6 runner beneath the drawer, which keeps the hardware hidden and defines the clearances at the drawer bottom for proper function. Side adjustment up to plus or minus 2 mm is controlled at the 2D front fixing clips, so the installer can shift drawer fronts horizontally during fitting to align margins across a bank. Tool-less height adjustment works at the same clips and changes the vertical position of the front, which supports refining top and bottom gaps without removing the drawer. The slide meets or exceeds ANSI/BHMA 156.9 Grade 1 requirements and has a load capacity up to 90 lbs dynamic and 100 lbs static on a 21 inch length slide, giving a performance reference for drawers holding typical cabinet contents in that rating range.
Using This Left Hand Slide In Real Projects
Where This Quadro V6 Left Slide Fits Best
This Hettich Quadro V6 undermount slide is specified as a 24 inch left hand runner, which positions it on the left side of the cabinet for drawers using paired runners. The product is suitable for drawer boxes with 1/2 inch or 5/8 inch side thickness, so it matches common hardwood or engineered side panels used in kitchen, bath, and furniture casework. The design supports both face frame and frameless applications, which means it can be used in framed cabinets with front rails or in frameless European-style boxes without changing the slide type. The slide on installation method with front fixing clips is designed for mounting the drawer onto the runners from the front, so it fits assembly lines or jobsite installs that favor quick attachment and removal of drawers during fitting.
Why These Drawer Slide Details Matter In Use
The integrated damping system Silent System inside the Quadro V6 runner provides controlled soft closing, which helps drawers settle quietly against the cabinet and supports a finished feel in higher-use areas. Full extension travel at the 24 inch length allows the drawer to move completely out over the cabinet face, so the user can reach the back of the drawer without working around a partially hidden section at the rear. Side adjustment up to plus or minus 2 mm at the 2D front fixing clips gives flexibility to shift the front left or right, which is useful when aligning multiple fronts to a consistent reveal pattern after cabinet installation. Tool-less height adjustment at the clips lets vertical gaps be refined without separate adjustment tools, which can reduce time spent dialing in even spacing across drawers and doors. Meeting or exceeding ANSI/BHMA 156.9 Grade 1 requirements and carrying a load capacity up to 90 lbs dynamic and 100 lbs static on a 21 inch slide length indicates the slide is engineered for demanding drawer loads within that rated range, supporting confidence when specifying it for cabinetry that sees frequent use.
Common Questions About This Hettich Quadro Slide
What type of drawer construction does this slide support?
The Hettich Quadro V6 slide is designed for drawers with 1/2 inch or 5/8 inch side thickness, which fits common drawer box materials and guides panel sizing during construction.
Can this Quadro V6 slide be used on face frame cabinets?
The Quadro V6 undermount slide is suitable for face frame or frameless applications, so it can be specified across different cabinet construction styles in the same project line.
How does the soft close Silent System affect drawer use?
The integrated damping system Silent System controls closing speed, which helps drawers close smoothly, reduces impact at the stops, and supports a quieter operating feel in everyday use.
What adjustment range is available for aligning drawer fronts?
The Quadro V6 slide with 2D front fixing clips provides side adjustment up to plus or minus 2 mm and tool-less height adjustment, supporting precise horizontal and vertical alignment of drawer fronts.
What load capacity does this Hettich Quadro V6 slide carry?
The slide has a load capacity up to 90 lbs dynamic and 100 lbs static on a 21 inch length slide, which defines the drawer load range it is tested to handle under ANSI/BHMA Grade 1.
Is this undermount slide suitable for rooms exposed to moisture?
The Quadro V6 slide is made from galvanized steel and is described as suitable for rooms exposed to moisture, supporting use in environments such as baths or similar spaces.
Selecting This Slide For Your Drawer Run
The Hettich Quadro V6 24 inch soft-close full extension undermount drawer slide, left hand, combines slide on installation, 2D front fixing clips, and tool-less height adjustment to support efficient fitting and clean reveals. The design for 1/2 inch or 5/8 inch drawer sides, along with suitability for face frame or frameless applications and narrow applications, gives flexibility across different cabinet lines using one runner style. The galvanized steel construction and performance meeting or exceeding ANSI/BHMA 156.9 Grade 1 requirements with defined load capacity provide a clear specification reference when choosing this slide for your next drawer project.
