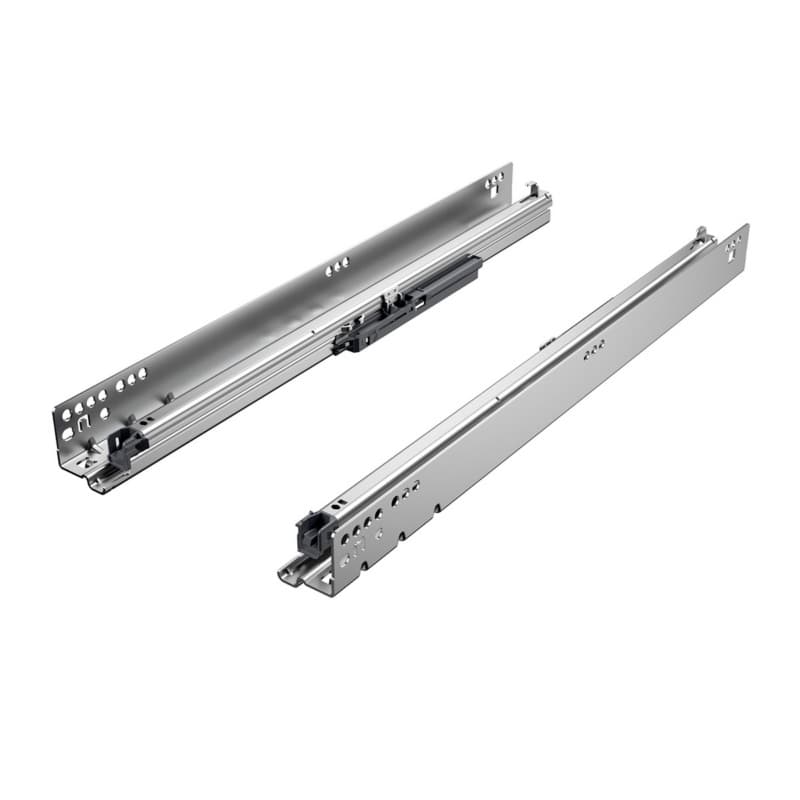

Hettich Quadro V6 Undermount Drawer Slides For Smooth Use
Hettich Quadro V6 undermount drawer slides provide full extension with soft-close action, so drawers travel their full length and close gently, which helps protect fronts and minimizes slamming in everyday use. This right hand slide is part of the Quadro V6 system, giving professional installers a known platform for consistent performance across multiple cabinets. The integrated damping system Silent System slows the drawer in the last part of travel, which supports quiet operation in kitchens, baths, and other high-use spaces. This slide uses a ball bearing design, which supports smooth movement under load. As a 24 inch undermount drawer slide, it supports deeper drawers where full extension access is important. The slide belongs to the undermount drawer slides class, so it stays out of sight under the drawer, helping maintain a clean cabinet appearance while still delivering controlled motion.
Key Functional Details That Support Cabinet Projects
- Slide on installation with front fixing clips speeds mounting, because the drawer can be connected to the slide quickly once the runners are in place.
- Tool-less height adjustment lets installers set drawer front height without tools, saving time during final alignment across multiple fronts.
- Side adjustment up to plus or minus 2 mm with 2D front fixing clips allows fine-tuning the gap between drawer fronts, which helps achieve consistent reveals.
- Design for 1/2 inch (13 mm) or 5/8 inch (16 mm) drawer side thickness supports common construction standards, so shop-built drawers can match the slide specification.
- Use in face frame or frameless applications means the same slide model can be applied across different cabinet constructions, simplifying product selection.
- Load capacity up to 90 lbs dynamic and 100 lbs static on a 21 inch slide, as per ANSI/BHMA 156.9 grade 1, indicates the system is engineered for typical residential and similar drawer loads.
- Galvanized steel construction, suitable for rooms exposed to moisture, supports use in kitchens, baths, and similar areas where humidity is present.
Undermount Slide Fit, Motion, And Adjustment Details
This full extension undermount drawer slide is designed for drawers with 1/2 inch or 5/8 inch side thickness, which ties slide choice directly to drawer box construction and prevents mismatched fit. Slide on installation with front fixing clips allows the cabinet member to be installed first and the drawer to be attached later, which supports efficient workflow during hanging and adjustment. Tool-less height adjustment at the front lets installers shift the drawer front vertically, so they can align it with adjacent fronts without removing the drawer. Side adjustment up to plus or minus 2 mm using the 2D front fixing clips supports left-right alignment, making it possible to tighten reveals even when cabinet openings vary slightly. As a right hand slide, it is intended to work as part of a handed pair, which keeps movement balanced when matched with the corresponding left slide.
Using This Hettich 9304284 Slide In Cabinet Builds
Where The Hettich Quadro V6 Slide Fits Best
The Hettich Quadro V6 24 inch soft-close full extension undermount drawer slide works in face frame and frameless applications, so it suits both traditional cabinet boxes and frameless European-style cases. Its suitability for rooms exposed to moisture makes it appropriate for kitchens, baths, and similar installations where humidity levels are higher, so the galvanized steel material can support long-term service. The ability to work with 1/2 inch or 5/8 inch drawer side thickness lets shops keep standard drawer construction while using this slide, which reduces the need for special box designs. Because it is part of an undermount drawer slides system, the slide supports clean interior drawer boxes without visible side-mounted hardware, which can be useful in residential and commercial casework where appearance matters. The right hand orientation of this slide is designed to match a corresponding left hand slide, maintaining stable drawer motion along the full extension.
How These Slide Features Support Accurate Results
The integrated damping system Silent System in this Hettich Quadro V6 undermount slide slows the drawer near closing, which reduces impact forces on the cabinet and front, helping maintain alignment over repeated use. Full extension travel lets users pull the drawer completely out over the cabinet face, improving access to items stored at the back and making the most of the 24 inch depth. Side adjustment up to plus or minus 2 mm using the 2D front fixing clips provides a controlled way to refine reveals without re-drilling, which limits rework when cabinet openings are slightly out of square. Tool-less height adjustment at the front of the slide speeds up final install day because installers can move the drawer vertically to match the run of fronts. Meeting or exceeding ANSI/BHMA 156.9 grade 1 requirements, with load capacity figures stated for a 21 inch slide in that standard, signals that the system has been tested under recognized performance criteria, giving project specifiers a clear reference point.
Common Questions About This Undermount Drawer Slide
What type of drawer construction works with this slide?
The Hettich Quadro V6 undermount slide is designed for drawer sides that are 1/2 inch (13 mm) or 5/8 inch (16 mm) thick, which aligns with common drawer box constructions in many cabinet shops.
Can this Hettich 9304284 slide be used in face frame cabinets?
The Hettich 9304284 slide is suitable for face frame and frameless applications, so it can be applied across different cabinet box styles within the same project.
How does the Silent System damping help in daily use?
The integrated damping system Silent System slows the drawer during closing, reducing slamming, which supports quieter operation and less stress on drawer fronts and cabinet structures.
What load can these undermount drawer slides handle?
The undermount slide has a load capacity up to 90 lbs dynamic and 100 lbs static on a 21 inch slide, as per ANSI/BHMA 156.9 grade 1, supporting typical drawer storage needs.
Is this drawer slide suitable for areas with moisture?
The galvanized steel construction is suitable for rooms exposed to moisture, making this slide a fit for kitchens, bathrooms, and similar environments where humidity is present.
What adjustments are available during drawer alignment?
The slide provides tool-less height adjustment and side adjustment up to plus or minus 2 mm via 2D front fixing clips, supporting fine tuning of drawer reveals and vertical alignment.
Selecting This Slide For Your Next Cabinet Run
The Hettich Quadro V6 24 inch soft-close full extension undermount drawer slide, right hand, combines concealed mounting with practical adjustment features, so it supports clean-looking cabinetry and efficient installation. Its ability to work with 1/2 inch or 5/8 inch drawer sides across both face frame and frameless applications helps standardize hardware on a project. The integrated Silent System damping and ANSI/BHMA 156.9 grade 1 performance give a defined motion profile and tested load data for spec-driven jobs. Use this slide when an undermount solution with soft-close action, fine adjustment, and moisture-suitable galvanized steel construction is needed in kitchen, bath, or similar casework.
