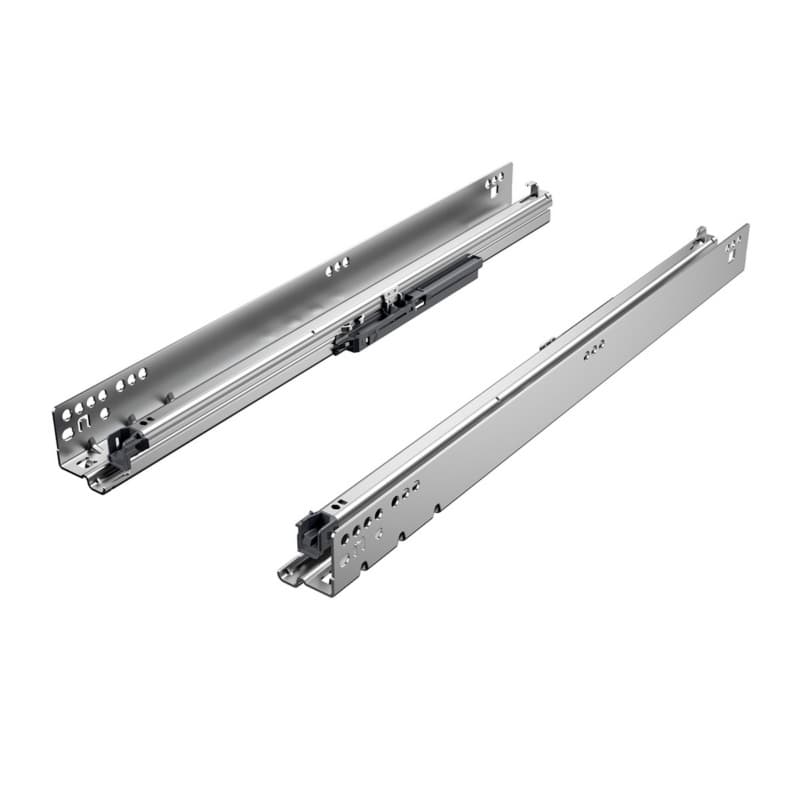

Hettich Quadro V6 12" Soft-Close Full Extension Undermount Drawer Slides, Ball Bearing Right hand Zinc - 9304259

Hettich Quadro V6 12 Inch Undermount Slide Purpose

Hettich Quadro V6 12 inch undermount drawer slides provide soft-close, full-extension movement for drawers, so the drawer travels smoothly to the back of the cabinet while closing quietly at the front. This right hand slide design supports precise undermount installation where the hardware is concealed under the drawer, which keeps the drawer sides clear for clean cabinet interiors. The integrated damping system Silent System slows the drawer in the last part of travel, which reduces slamming in everyday use. Because this model is built as a right hand slide, it serves on the right side of the drawer box in a paired installation. The slide is part of the Hettich Quadro V6 system, which aligns with matching components for consistent motion across a project.

Key Functional Details For Cabinet Projects

• The full extension design allows the 12 inch drawer to open to its full length, giving clear access to stored items along the entire slide travel, which helps during layout where rear contents need to be reached from the front.
• The soft-close integrated damping system Silent System controls the closing speed, which reduces impact at the cabinet front and helps limit shock to joinery in normal operation.
• Slide on installation with front fixing clips creates a straightforward mounting process, because the drawer can be positioned on the undermount slide and locked with the clips without separate complex fastening steps.
• Tool-less height adjustment at the front lets the installer set drawer front height using the installed clips, which supports fine alignment of reveals across multiple drawers without removing fasteners.
• Side adjustment up to plus or minus 2 mm with 2D front fixing clips provides lateral tuning of the drawer front, which helps correct small casework variations and tighten up gaps between fronts.
• The slide works with 1/2 inch (13 mm) or 5/8 inch (16 mm) drawer side thickness, allowing the same undermount slide model to serve common stock sizes in cabinet shops.

Installation And Fit For Face Frame Or Frameless

This Quadro V6 undermount slide is specified for face frame or frameless applications, so it can be used across kitchen, bath, or furniture cabinet constructions that follow either style. The slide on installation method with front fixing clips supports mounting the runner to the cabinet, then locating the drawer box onto the slide from above, which can reduce handling time once cases are set. Tool-less height adjustment at the front gives vertical movement of the drawer front without tools, which helps during final fit when aligning multiple drawer rows. Side adjustment up to plus or minus 2 mm through 2D front fixing clips lets the installer nudge the drawer front left or right, which is useful when case openings are slightly out of square.

Using This Right Hand Slide In Real Projects

Where This 12 Inch Right Slide Fits Best

The 12 inch length suits shorter drawer depths, so this slide is well matched to small base cabinets, bath vanities, or upper cabinet pull-outs that are built around that nominal length. Because it is an undermount drawer slide, it supports drawer boxes with 1/2 inch (13 mm) or 5/8 inch (16 mm) sides, which covers many standard shop practices for solid wood or panel drawer construction. The design serves both face frame and frameless cabinet layouts, allowing the same right hand model to appear in runs that mix construction styles within a project. Load capacity up to 90 lbs dynamic and 100 lbs static, as per ANSI/BHMA 156.9 grade 1 specification on a 21 inch length slide, indicates the series is rated to support typical drawer storage loads in general cabinet use.

Details That Support Alignment And Durability

The side adjustment range of plus or minus 2 mm at the 2D front fixing clips adds horizontal tuning capability, which is important when trying to keep reveals equal across doors and drawers on finished installations. The tool-less height adjustment at the front of the slide gives vertical movement without loosening fasteners, so small corrections can be made while the drawer remains in the cabinet. The integrated damping system Silent System manages closing momentum, which helps reduce wear on cabinet fronts and drawer joints by lowering repeated impact. Galvanized steel construction is described as suitable for rooms exposed to moisture, so the slide material supports use in environments such as kitchens or baths where humidity and occasional moisture are present. The slide is identified as suitable for narrow applications, which can help when designing slender pull-outs or tight cabinet bays that still need full-extension undermount action.

Common Questions About Hettich Quadro V6 Slide 9304259

Selecting This 12 Inch Right Undermount Slide

The Hettich Quadro V6 12 inch soft-close full-extension right hand undermount drawer slide 9304259 combines concealed undermount mounting, Silent System damping, and 2D front fixing clip adjustments for drawer fronts. With support for 1/2 inch and 5/8 inch drawer sides, face frame or frameless applications, and galvanized steel construction for rooms exposed to moisture, this slide offers a defined set of capabilities for cabinet projects built around the Quadro V6 system.
