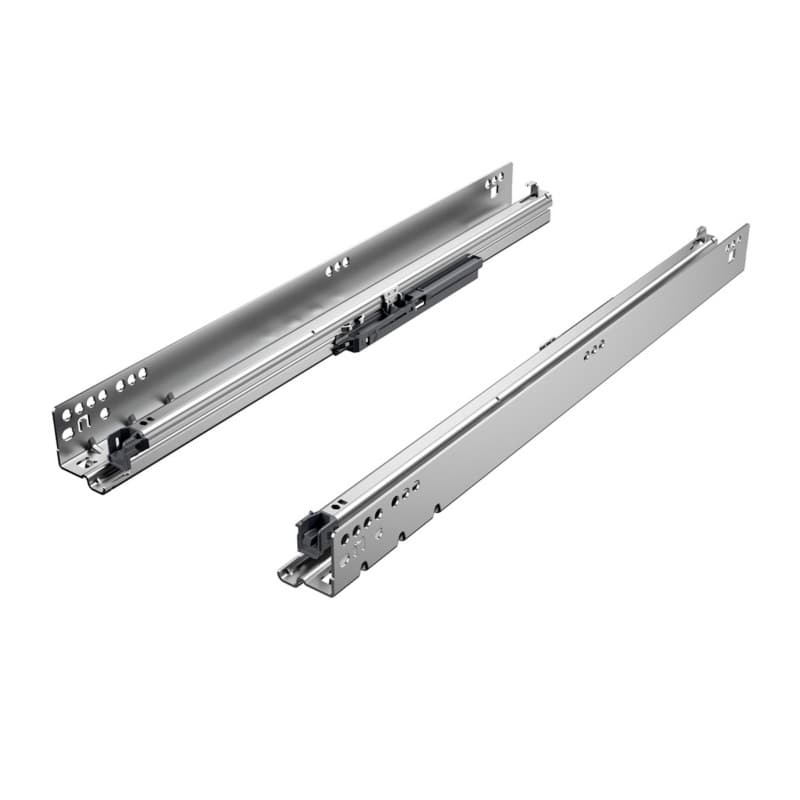

Hettich Quadro V6 12" Soft-Close Full Extension Undermount Drawer Slides, Ball Bearing Left hand Zinc - 9304258

Hettich Quadro V6 Undermount Slide For 12 Inch Drawers

Hettich Quadro V6 undermount drawer slide defines this 12 inch soft-close, full extension slide as a concealed runner that carries the drawer from underneath, keeping sides clear for clean cabinet lines and more usable drawer width in tight layouts. The integrated damping system Silent System slows closing at the end of travel, so drawers are pulled in smoothly and quietly, which helps protect fronts and joinery from repeated slamming in busy kitchen, bath, or shop environments. This left hand slide uses ball bearing guidance, supporting consistent motion under load so drawers feel the same loaded or empty. The slide is designed for 1/2 inch (13 mm) or 5/8 inch (16 mm) drawer side thickness, giving flexibility when standardizing box construction across different cabinet runs.

Key Hettich Quadro V6 Slide Advantages On The Job

• Full extension travel lets the drawer open to its rated length, giving clear access to the back of the box so stored items can be reached without shifting front contents during daily use.
• Soft-close Silent System damping controls the last part of closing, reducing impact on fronts and cabinet faces, which supports smoother operation where drawers are used repeatedly through the day.
• Slide on installation with front fixing clips speeds mounting because the drawer can be hooked onto the runners, then locked at the front, helping streamline repetitive installs across a bank of cabinets.
• Tool-less height adjustment at the front fixing clips lets the drawer front be raised or lowered without separate tools, making it faster to align reveals along a run of faces.
• Side adjustment up to plus or minus 2 mm using the 2D front fixing clips gives lateral tuning of the drawer front, which helps dial in even gaps on inset or tight overlay layouts.

Undermount Slide Fit For Face Frame And Frameless Jobs

This undermount drawer slide is specified for both face frame and frameless applications, so the same runner system can be used across different cabinet constructions on a project. The design suits drawers built with 1/2 inch (13 mm) or 5/8 inch (16 mm) side thickness, which simplifies planning for box parts when moving between cabinet lines or custom work. Being a left hand slide, it pairs with the corresponding right hand unit in a standard drawer configuration. Full extension travel allows the drawer to clear the cabinet front, improving visibility and access in deeper boxes where stored items would otherwise be hidden.

Using The Quadro V6 Slide In Cabinet Installations

Where This 12 Inch Undermount Slide Performs Best

This 12 inch Hettich Quadro V6 slide suits shorter drawers where space is limited, such as upper cabinets, vanities, or smaller shop drawers, because its length matches compact box depths. The load capacity up to 90 lbs dynamic (100 lbs static), as per ANSI/BHMA 156.9 grade 1 specification on a 21 inch length slide, identifies it as part of a system tested for demanding use, which is valuable in kitchens or work areas where drawers carry tools, hardware, or densely packed contents. Galvanized steel construction is described as suitable for rooms exposed to moisture, so this runner is appropriate for locations like baths, laundry areas, or similar interiors where humidity is common. The product is also noted as suitable for narrow applications, which helps when designing slim pullouts or tight cabinet bays that still require a stable undermount runner.

Adjustment Features That Support Clean, Repeatable Results

Slide on installation with front fixing clips allows the drawer to be mounted by sliding it onto the runners and engaging at the front, which helps produce consistent placement across multiple drawers with a repeatable motion. The tool-less height adjustment function is built into the system, so the installer can shift the drawer front vertically at the clips, which is helpful for fine-tuning reveals where cabinet faces must align in a straight line. Side adjustment up to plus or minus 2 mm via the 2D front fixing clips provides lateral movement of the drawer front, which lets the gaps between fronts and adjacent panels be evened out without rebuilding the box. Meeting or exceeding ANSI/BHMA 156.9 grade 1 requirements signals that the slide design has been validated for high-use conditions, supporting long-term alignment where drawers are opened and closed frequently.

Common Questions About This Hettich 9304258 Slide

Selecting This Quadro V6 Slide For Your Next Run

The Hettich Quadro V6 undermount drawer slide in this 12 inch left hand version combines soft-close Silent System damping, full extension travel, and slide on installation with front fixing clips, which together support smooth operation and efficient installation. Compatibility with 1/2 inch (13 mm) and 5/8 inch (16 mm) drawer side thickness works well with common box builds across face frame or frameless cabinet projects. When a job calls for an undermount runner tested to ANSI/BHMA 156.9 grade 1 requirements in applications such as narrow or moisture-exposed interior rooms, this galvanized steel slide provides a specification-driven choice for that role.
