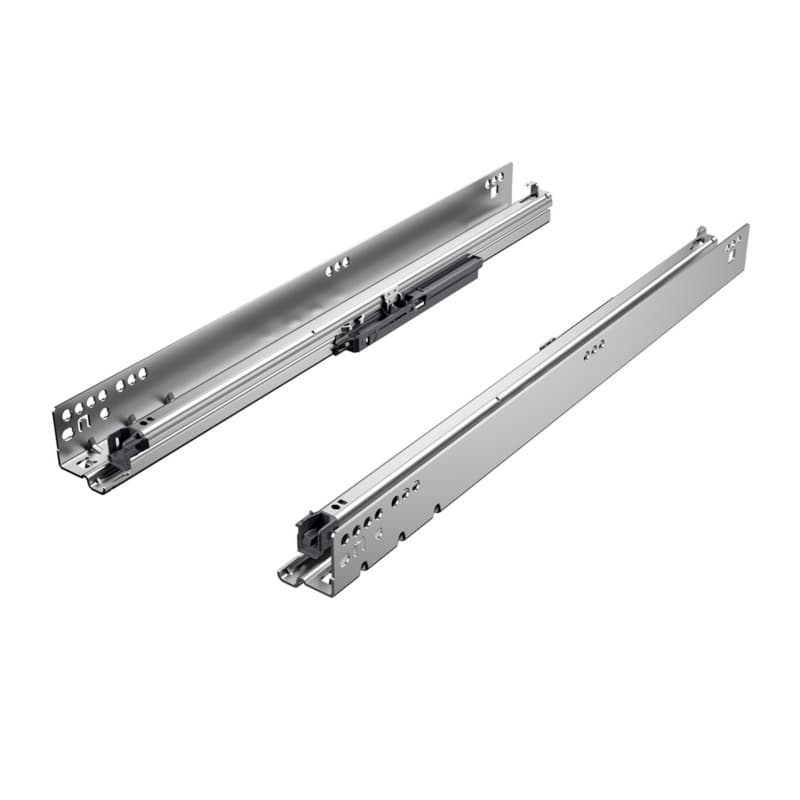

Hettich Quadro V6 Undermount Slide For Smooth Drawers
Hettich Quadro V6 undermount drawer slide gives a 15 inch drawer soft-close, full extension travel, so the drawer opens fully while closing gently, which helps access contents and reduces hard slamming in everyday cabinet use. This left hand, ball bearing slide supports the drawer from underneath, which keeps the drawer sides clean and supports clean cabinet aesthetics on higher end jobs. The integrated damping system Silent System slows the closing stroke, which manages momentum on loaded drawers and helps protect joinery over time. Load capacity up to 90 lbs dynamic, as per ANSI/BHMA 156.9 grade 1 specification on a 21 inch length slide, shows the system is designed for typical residential and light commercial storage loads. Galvanized steel construction is suitable for rooms exposed to moisture, which supports use in kitchens, baths, or utility spaces where humidity or splashes are common.
Key Quadro V6 Details That Support Cabinet Work
- Slide on installation with front fixing clips speeds mounting of the drawer box onto the slide, which helps streamline repetitive cabinet production or retrofit work.
- Tool-less height adjustment built into the system allows vertical tweaking of the drawer front, which helps align reveals quickly without pulling tools during final fit.
- Side adjustment up to plus or minus 2 mm with 2D front fixing clips lets the installer shift the drawer front sideways, which is useful for dialing in even gaps between adjacent fronts.
- Full extension undermount design brings the drawer fully out of the cabinet, which improves access in deeper cabinets and helps utilize the full drawer length.
- Integrated soft-close damping keeps movement controlled at the end of travel, which benefits installations where quiet operation is important, such as bedrooms or shared workspaces.
- Galvanized steel construction is suitable for rooms exposed to moisture, which supports long term use in wet areas such as bathrooms or laundry rooms.
Installation, Adjustment, And Drawer Fit Details
Slide on installation with front fixing clips lets the drawer box connect to the undermount slide with a sliding action, which can shorten installation time compared with systems that require separate fasteners at multiple points. Tool-less height adjustment is built into the mechanism, so installers can raise or lower the drawer front relative to the cabinet opening with small hand movements, which is practical when tuning several drawers in sequence. Side adjustment up to plus or minus 2 mm through the 2D front fixing clips provides lateral movement, which helps achieve consistent side gaps on face frame and frameless applications without re-drilling. The system is designed for 1/2 inch, approximately 13 mm, or 5/8 inch, approximately 16 mm, drawer side thickness, which defines the construction range for wooden drawer boxes that will fit the slide geometry reliably.
Using This Left Hand Slide In Real Cabinet Projects
Where This Undermount Drawer Slide Performs Best
This undermount drawer slide is specified for face frame or frameless applications, so it can be used across standard cabinet construction styles in shops that build both. The design is suitable for narrow applications, which makes it useful in compact drawers where side space is limited and traditional side-mount hardware may not fit. Load capacity up to 90 lbs dynamic, based on ANSI/BHMA 156.9 grade 1 specification on a 21 inch length slide, indicates the system is engineered to carry typical household storage such as cookware, bathroom items, or office supplies without overstressing the hardware in normal service. Full extension travel brings the drawer fully forward, giving direct reach to the back of the box, which is particularly useful in deeper kitchen base cabinets or utility cabinets. The integrated damping system Silent System moderates closing speed, which is valuable anywhere reduced noise and controlled closing protect fronts and joinery from repeated impact.
Details That Help Achieve Consistent Drawer Results
Slide on installation with front fixing clips gives a defined connection point between the drawer and slide, which helps maintain consistent alignment when producing multiple identical drawers. Tool-less height adjustment supports precise vertical positioning of each drawer front within the cabinet opening, which helps maintain an even reveal line across a stack of drawers during final assembly. Side adjustment up to plus or minus 2 mm with the 2D front fixing clips allows small horizontal corrections, which reduces rework when cabinet openings or drawer boxes vary slightly from nominal dimensions. The system accepts 1/2 inch or 5/8 inch drawer side thickness, which standardizes material selection in the shop and helps avoid reconfiguring jigs between jobs. Galvanized steel construction is suitable for rooms exposed to moisture, which supports consistent performance in kitchens, baths, or laundry rooms where humidity changes could affect unprotected components.
Common Questions About This Hettich Quadro Slide
What type of drawer construction works with this slide?
The slide is designed for drawers with 1/2 inch, about 13 mm, or 5/8 inch, about 16 mm, side thickness, which suits common solid wood or panel drawer box constructions.
Can this Quadro V6 slide be used in face frame cabinets?
The slide is specified for face frame or frameless applications, so it fits both cabinet styles and supports shops that work across different construction methods.
How does the soft-close Silent System help in daily use?
The integrated damping system Silent System slows the closing stroke, which reduces noise, limits slamming, and helps protect drawer fronts and joints in repeated use.
What load capacity does this undermount slide support?
The slide has load capacity up to 90 lbs dynamic, as per ANSI/BHMA 156.9 grade 1 specification on a 21 inch slide, supporting typical cabinet storage loads.
Is this drawer slide suitable for damp or humid rooms?
The slide uses galvanized steel that is suitable for rooms exposed to moisture, which supports use in environments like kitchens, bathrooms, or laundry areas.
What adjustment options are available during installation?
The slide offers tool-less height adjustment and side adjustment up to plus or minus 2 mm with 2D front fixing clips, which helps fine-tune drawer front alignment.
Select This Slide For Precise, Quiet Drawer Action
The Hettich 9304261 Quadro V6 15 inch left hand undermount slide combines full extension travel, soft-close damping, and ANSI/BHMA 156.9 grade 1 load performance, which supports dependable daily operation. Its slide on installation, tool-less height adjustment, and side adjustment up to plus or minus 2 mm help streamline fitting and alignment in both face frame and frameless applications. For cabinets in moisture-exposed rooms, the galvanized steel construction provides a suitable hardware choice. Choose this slide when a concealed undermount system with practical adjustment and soft-close action is needed for narrow or standard drawer configurations.
